MX83

Toyota CHASER · 1989 · 6,020 parts · 191 categories
MX83 ×

← Back to categories

6,020 items

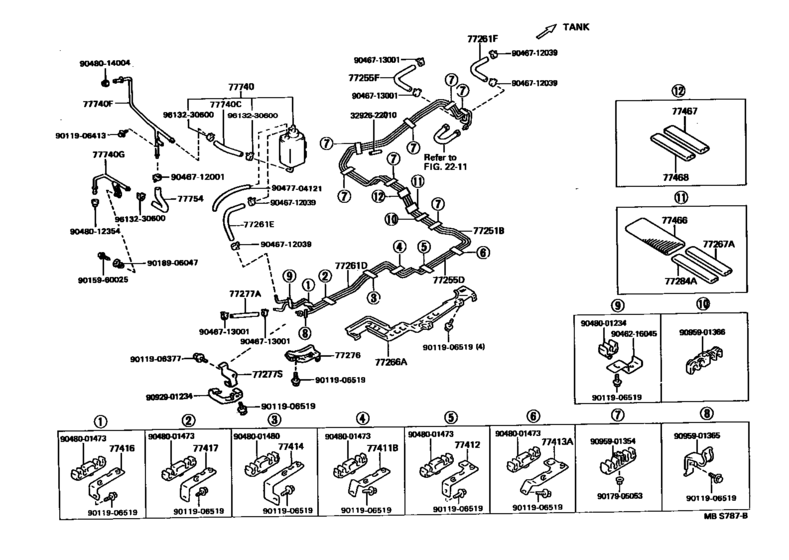

Fuel Tank & Tube ([08.1989 - 10.1992] (8908-9210)MX83) 53
#OEMPart name
77251 77251-22400 Tube, Fuel Main
77255 77255-22310 Tube, Fuel Return
77255 77419-22040 Hose, Fuel, No.2 (For Fuel Return Tube)
77261 77261-22190 Tube, Fuel Tank To Canister
77261 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77261 95337-06020 Hose, Differential Pressure Control
77261 77259-22080 Hose, Fuel, No.2 (For Fuel Tank To Canister Tube)
77266 77266-22070 Protector, Fuel Tube, No.1
77267 77267-22050 Protector, Fuel Tube, No.2
77276 77276-22050 Protector, Fuel Hose
77277 23271-42020 Hose, Fuel, No.1(For Return Tube, No.1)
77277 23881-70010 Bracket, Fuel Hose
77284 77284-22030 Protector, Fuel Tube, No.3
77411 77411-22010 Support, Fuel Tube Grommet, No.1
77412 77412-22010 Support, Fuel Tube Grommet, No.2
77413 77413-22010 Support, Fuel Tube Grommet, No.3
77414 77414-22010 Support, Fuel Tube Grommet, No.4
77416 77416-22010 Support, Fuel Tube Grommet, No.6
77417 77417-22010 Support, Fuel Tube Grommet, No.7
77466 77466-22020 Protector, Fuel Tube, No.4
77467 77467-22020 Protector, Fuel Tube, No.5
77468 77468-22010 Protector, Fuel Tube, No.6
77740 77740-22370 Canister Assy, Charcoal
77740 90445-12230 Hose, Fuel, No.3(For Charcoal Canister)
77740 77747-22040 Tube, Fuel, No.1(For Charcoal Canister)
77740 77748-22020 Tube, Fuel, No.2(For Charcoal Canister)
77740 77748-22030 Tube, Fuel, No.2(For Charcoal Canister)
77754 77754-22050 Hose, Charcoal Canister Outlet, No.1
3292622010 32926-22010 Cushion, Oil Cooler Tube(Atm)
9011906377 90119-06377 New Genuine Part
9011906413 90119-06413 New Genuine Part
9011906519 90119-06519 New Genuine Part
9015960025 90159-60025 SCREW W-WASHER
9017905053 90179-05053 New Genuine Part
9018906047 90189-06047 GROMMET
9046216045 90462-16045 New Genuine Part
9046712001 90467-12001 Clip(For Carburetor Fuel Hose)
9046712001 96132-51100 Clip (For Hose)
9046712039 90467-12039 Clip, No.1(For Idle-Up Hose)
9046713001 90467-13001 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046713001 96135-51300 Clamp, Hose
9047704121 90477-04121 New Genuine Part
9048001234 90480-01234 New Genuine Part
9048001473 90480-01473 New Genuine Part
9048001480 90480-01480 New Genuine Part
9048012354 90480-12354 New Genuine Part
9048014004 90480-14004 Grommet (For Floor Shift Control Shaft)
9092901234 90929-01234 New Genuine Part
9095901354 90959-01354 New Genuine Part
9095901354 90959-01355 New Genuine Part
9095901365 90959-01365 New Genuine Part
9095901366 90959-01366 New Genuine Part
9613230600 96132-30600 Clip(For Actuator Hose)
