MX83

Toyota CHASER · 1989 · 6,020 parts · 191 categories
MX83 ×

← Back to categories

6,020 items

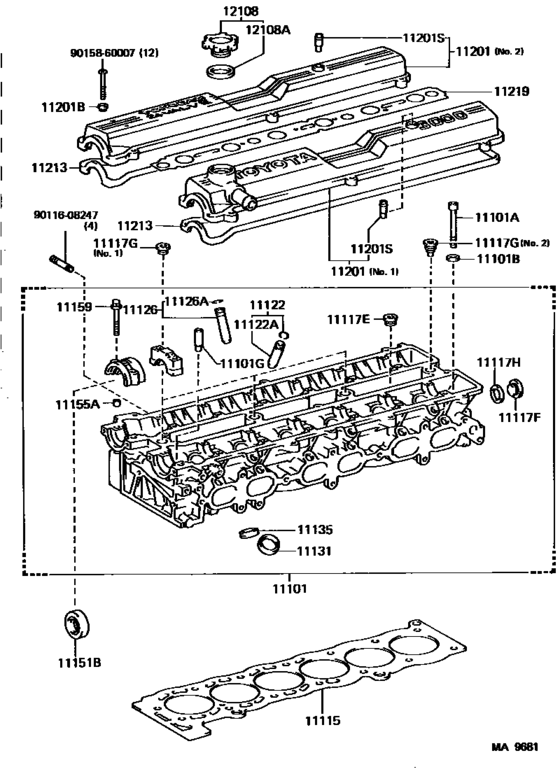

Cylinder Head ([08.1989 - ] (8908- )7MGE) 35
#OEMPart name
11101 11101-42030 Head Sub-Assy, Cylinder
11101 90110-12002 Bolt(For Cylinder Head Set)
11101 90201-12027 Washer, Plate(For Cylinder Head Set)
11101 90406-16002 Union(For Cylinder Head)
11115 11115-42020 Gasket, Cylinder Head
11115 11115-42021 Gasket, Cylinder Head
11117 90341-27003 Plug, W/head Taper Screw, No.1
11117 90341-36001 Plug, W/head Taper Screw, No.1
11117 90341-24007 Plug, W/head Straight Screw, No.3
11117 90341-24008 Plug, W/head Straight Screw, No.1
11117 90430-36001 Gasket(For Water Hole)
11122 11122-42010 Bush, Intake Valve Guide
11122 11123-42010 Bush, Intake Valve Guide
11122 90520-10004 Ring, Shaft Snap (For Valve Guide Bush)
11126 11122-16020 Bush, Intake Valve Guide
11126 11123-16020 Bush, Intake Valve Guide
11131 11131-42010 Seat, Intake Valve
11131 11132-42010 Seat, Intake Valve
11135 11135-42010 Seat, Exhaust Valve
11135 11136-42010 Seat, Exhaust Valve
11151 90311-35017 Seal, Oil(For Camshaft Setting)
11155 90253-11021 Pin, Ring
11159 90119-08548 Bolt, Stud(For Head To Camshaft Bearing Cap)
11201 11201-42020 Cover Sub-Assy, Cylinder Head
11201 11202-42030 Cover Sub-Assy, Cylinder Head
11201 90210-07001 Washer, Seal(For Cylinder Head Cover)
11201 90210-07004 Washer, Seal(For Cylinder Head Cover)
11201 17361-41010 Union(For Positive Crankcase Ventilation)
11213 11213-42020 Gasket, Cylinder Head Cover
11219 11219-42020 Cover, Cylinder Head, No.3
12108 12180-13030 Cap Sub-Assy, Oil Filler
12108 12180-55010 Cap Sub-Assy, Oil Filler
12108 90430-37140 Gasket(For Oil Filler Cap)
9011608247 90116-08247 New Genuine Part
9015860007 90158-60007 New Genuine Part
