Search › Model › MX83

MX83

Toyota CHASER · 1989 · 6,020 parts · 191 categories

6,020 items

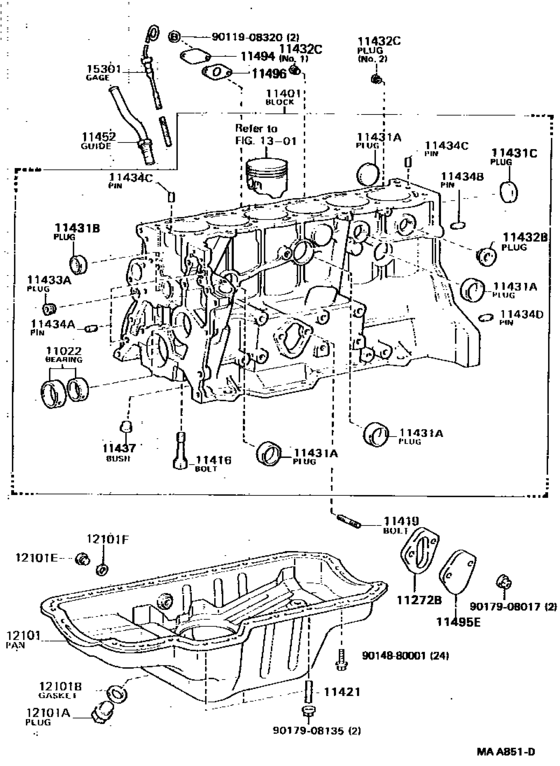

Cylinder Block ([08.1989 - ] (8908- )7MGE) 44

#	OEM	Part name
11022	11022-41010	Bearing Set, Pump Drive Shaft
11272	90923-06007	Gasket, Cylinder Block Side Cover, No.2
11272	90923-06012	Gasket, Cylinder Block Side Cover, No.2
11401	11401-49635	Block Sub-Assy, Cylinder
11416	90910-02047	Bolt(For Crankshaft Bearing Cap Set)
11419	90116-08191	Bolt, Stud(For Fuel Pump)
11421	90116-08208	Bolt, Stud(For Engine Rear Oil Seal Retainer)
11431	96411-44000	Plug, Tight, No.1
11431	96412-43500	Plug, Tight, No.2(For Cylinder Block)
11431	96411-43500	Plug, Tight, No.1
11432	96411-43000	Plug, Tight, No.1
11432	90345-51006	Plug, W/head Taper Screw, No.2
11432	90345-53001	Plug, Water Drain Cock(For Cylinder Block)
11433	90344-53008	Plug, W/head Taper Screw, No.2
11434	90250-10192	Pin, Straight(For Timing Gear Cover Set)
11434	90250-08120	Pin, Straight, No.1
11437	11437-45010	Bush, Oil Pump Shaft Guide
11452	11452-42020	Guide, Oil Level Gage
11494	11494-45010	Plate, Oil Hole Cover
11495	11495-41010	Cover, Cylinder Block Side, No.2
11496	15318-42010	Gasket, Oil Hole Cover Plate
11496	15318-42011	Gasket, Oil Hole Cover Plate
11496	15318-45011	Gasket, Oil Hole Cover Plate
12101	12101-42040	Pan Sub-Assy, Oil
12101	90341-18089	Plug(For Oil Pan Drain)
12101	90033-41020	Plug(For Oil Pan Drain)
12101	90430-18013	Gasket(For Oil Pan Drain Plug)
12101	90430-18023	Gasket(For Oil Pan)
12101	90430-18024	Gasket(For Oil Pan Drain Plug)
12101	90430-18026	Gasket(For Oil Pan Drain Plug)
12101	90341-12012	Plug(For Oil Pan Drain)
12101	90341-T0004	Plug(For Oil Pan Drain)
12101	90430-12018	Gasket(For Oil Cooler)
12101	90430-12031	Gasket (For Oil Pan Drain Plug)
12101	90430-12019	Gasket(For Oil Pan Drain Plug)
12101	90430-12028	Gasket (For Drain Plug)
12101	90430-12021	Gasket(For Oil Pan Drain Plug)
15301	15301-42030	Gage Sub-Assy, Oil Level
9011908320	90119-08320	Screw Or Bolt(for Valve Rocker Shaft Lock)
9011908320	91611-B0816	Bolt
9014880001	90148-80001	New Genuine Part
9017908017	90179-08017	NUT
9017908135	90179-08135	New Genuine Part
9017908135	90179-08153	NUT

OEM	Part name	Category
11022-41010	Bearing Set, Pump Drive Shaft	Cylinder Block ([08.1989 - ] (8908- )7MGE)
11401-49635	Block Sub-Assy, Cylinder	Cylinder Block ([08.1989 - ] (8908- )7MGE)
11437-45010	Bush, Oil Pump Shaft Guide	Cylinder Block ([08.1989 - ] (8908- )7MGE)
11452-42020	Guide, Oil Level Gage	Cylinder Block ([08.1989 - ] (8908- )7MGE)
11494-45010	Plate, Oil Hole Cover	Cylinder Block ([08.1989 - ] (8908- )7MGE)
11495-41010	Cover, Cylinder Block Side, No.2	Cylinder Block ([08.1989 - ] (8908- )7MGE)
12101-42040	Pan Sub-Assy, Oil	Cylinder Block ([08.1989 - ] (8908- )7MGE)
15301-42030	Gage Sub-Assy, Oil Level	Cylinder Block ([08.1989 - ] (8908- )7MGE)
15318-42010	Gasket, Oil Hole Cover Plate	Cylinder Block ([08.1989 - ] (8908- )7MGE)
15318-42011	Gasket, Oil Hole Cover Plate	Cylinder Block ([08.1989 - ] (8908- )7MGE)
15318-45011	Gasket, Oil Hole Cover Plate	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90033-41020	Plug(For Oil Pan Drain)	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90116-08191	Bolt, Stud(For Fuel Pump)	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90116-08208	Bolt, Stud(For Engine Rear Oil Seal Retainer)	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90119-08320	Screw Or Bolt(for Valve Rocker Shaft Lock)	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90148-80001	New Genuine Part	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90179-08017	NUT	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90179-08135	New Genuine Part	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90179-08153	NUT	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90250-08120	Pin, Straight, No.1	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90250-10192	Pin, Straight(For Timing Gear Cover Set)	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90341-12012	Plug(For Oil Pan Drain)	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90341-18089	Plug(For Oil Pan Drain)	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90341-T0004	Plug(For Oil Pan Drain)	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90344-53008	Plug, W/head Taper Screw, No.2	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90345-51006	Plug, W/head Taper Screw, No.2	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90345-53001	Plug, Water Drain Cock(For Cylinder Block)	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90430-12018	Gasket(For Oil Cooler)	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90430-12019	Gasket(For Oil Pan Drain Plug)	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90430-12021	Gasket(For Oil Pan Drain Plug)	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90430-12028	Gasket (For Drain Plug)	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90430-12031	Gasket (For Oil Pan Drain Plug)	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90430-18013	Gasket(For Oil Pan Drain Plug)	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90430-18023	Gasket(For Oil Pan)	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90430-18024	Gasket(For Oil Pan Drain Plug)	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90430-18026	Gasket(For Oil Pan Drain Plug)	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90910-02047	Bolt(For Crankshaft Bearing Cap Set)	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90923-06007	Gasket, Cylinder Block Side Cover, No.2	Cylinder Block ([08.1989 - ] (8908- )7MGE)
90923-06012	Gasket, Cylinder Block Side Cover, No.2	Cylinder Block ([08.1989 - ] (8908- )7MGE)
91611-B0816	Bolt	Cylinder Block ([08.1989 - ] (8908- )7MGE)
96411-43000	Plug, Tight, No.1	Cylinder Block ([08.1989 - ] (8908- )7MGE)
96411-43500	Plug, Tight, No.1	Cylinder Block ([08.1989 - ] (8908- )7MGE)
96411-44000	Plug, Tight, No.1	Cylinder Block ([08.1989 - ] (8908- )7MGE)
96412-43500	Plug, Tight, No.2(For Cylinder Block)	Cylinder Block ([08.1989 - ] (8908- )7MGE)
