MX83

Toyota CHASER · 1989 · 6,020 parts · 191 categories

6,020 items

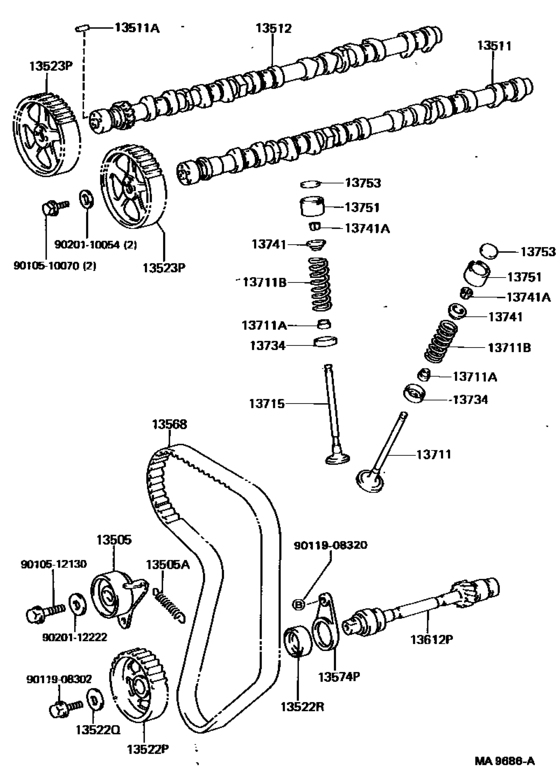

Camshaft & Valve ([08.1989 - ] (8908- )7MGE) 59

#	OEM	Part name
13505	13505-42020	Idler Sub-Assy, Timing Belt, No.1
13505	90507-18008	Spring, Tension(For Idler)
13511	13501-42030	Camshaft
13511	90250-05121	Pin, Straight, No.3(For Camshaft Knock)
13512	13502-42010	Camshaft, No.2
13522	13524-42010	Pulley, Pump Drive Shaft
13522	90201-08020	Washer, Plate(For Pump Drive Shaft Gear)
13522	90387-26001	Collar(For Pump Drive Shaft Pulley)
13523	13523-42010	Pulley, Camshaft Timing
13568	13568-42010	Belt, Timing
13568	13568-49015	Belt, Timing
13568	13568-42011	Belt, Timing
13574	13574-41010	Plate, Pump Drive Shaft
13612	13612-42020	Shaft, Pump Drive
13711	13711-42020	Valve, Intake
13711	90913-02062	Seal Or Ring, O(For Valve Stem Oil) (INTAKE SIDE)
13711	90501-33011	Spring, Compression(For Inner)
13715	13715-42010	Valve, Exhaust
13734	13734-16010	Seat, Valve Spring
13741	13741-16010	Retainer, Valve Spring
13741	90913-03021	Seal Or Ring, O(For Valve Stem Oil)
13751	13751-16010	Lifter, Valve
13753	13753-16020	Pad, Valve Adjusting
13753	13753-16040	Pad, Valve Adjusting
13753	13753-16060	Pad, Valve Adjusting
13753	13753-16351	Shim, Valve Adjusting
13753	13753-16080	Pad, Valve Adjusting
13753	13753-16371	Shim, Valve Adjusting
13753	13753-16100	Pad, Valve Adjusting
13753	13753-16401	Shim, Valve Adjusting
13753	13753-16120	Pad, Valve Adjusting
13753	13753-16421	Shim, Valve Adjusting
13753	13753-16140	Pad, Valve Adjusting
13753	13753-16451	Shim, Valve Adjusting
13753	13753-16160	Pad, Valve Adjusting
13753	13753-16471	Shim, Valve Adjusting
13753	13753-16180	Pad, Valve Adjusting
13753	13753-16501	Shim, Valve Adjusting
13753	13753-16200	Pad, Valve Adjusting
13753	13753-16521	Shim, Valve Adjusting
13753	13753-16220	Pad, Valve Adjusting
13753	13753-16551	Shim, Valve Adjusting
13753	13753-16240	Pad, Valve Adjusting
13753	13753-16571	Shim, Valve Adjusting
13753	13753-16260	Pad, Valve Adjusting
13753	13753-16601	Shim, Valve Adjusting
13753	13753-16280	Pad, Valve Adjusting
13753	13753-16621	Shim, Valve Adjusting
13753	13753-16300	Pad, Valve Adjusting
13753	13753-16651	Shim, Valve Adjusting
13753	13753-16320	Pad, Valve Adjusting
13753	13753-16340	Pad, Valve Adjusting
9010510070	90105-10070	New Genuine Part
9010512130	90105-12130	New Genuine Part
9011908302	90119-08302	BOLT
9011908320	90119-08320	Screw Or Bolt(for Valve Rocker Shaft Lock)
9011908320	91611-B0816	Bolt
9020110054	90201-10054	New Genuine Part
9020112222	90201-12222	Washer, Plate(For Cylinder Head Set)

OEM	Part name	Category
13501-42030	Camshaft	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13502-42010	Camshaft, No.2	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13505-42020	Idler Sub-Assy, Timing Belt, No.1	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13523-42010	Pulley, Camshaft Timing	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13524-42010	Pulley, Pump Drive Shaft	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13568-42010	Belt, Timing	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13568-42011	Belt, Timing	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13568-49015	Belt, Timing	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13574-41010	Plate, Pump Drive Shaft	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13612-42020	Shaft, Pump Drive	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13711-42020	Valve, Intake	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13715-42010	Valve, Exhaust	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13734-16010	Seat, Valve Spring	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13741-16010	Retainer, Valve Spring	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13751-16010	Lifter, Valve	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16020	Pad, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16040	Pad, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16060	Pad, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16080	Pad, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16100	Pad, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16120	Pad, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16140	Pad, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16160	Pad, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16180	Pad, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16200	Pad, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16220	Pad, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16240	Pad, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16260	Pad, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16280	Pad, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16300	Pad, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16320	Pad, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16340	Pad, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16351	Shim, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16371	Shim, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16401	Shim, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16421	Shim, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16451	Shim, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16471	Shim, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16501	Shim, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16521	Shim, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16551	Shim, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16571	Shim, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16601	Shim, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16621	Shim, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
13753-16651	Shim, Valve Adjusting	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
90105-10070	New Genuine Part	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
90105-12130	New Genuine Part	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
90119-08302	BOLT	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
90119-08320	Screw Or Bolt(for Valve Rocker Shaft Lock)	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
90201-08020	Washer, Plate(For Pump Drive Shaft Gear)	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
90201-10054	New Genuine Part	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
90201-12222	Washer, Plate(For Cylinder Head Set)	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
90250-05121	Pin, Straight, No.3(For Camshaft Knock)	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
90387-26001	Collar(For Pump Drive Shaft Pulley)	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
90501-33011	Spring, Compression(For Inner)	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
90507-18008	Spring, Tension(For Idler)	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
90913-02062	Seal Or Ring, O(For Valve Stem Oil) (INTAKE SIDE)	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
90913-03021	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
91611-B0816	Bolt	Camshaft & Valve ([08.1989 - ] (8908- )7MGE)
