Search › Model › MX75

MX75

Toyota CRESSIDA-CRESSIDA-WAGON · 1988 · 4,198 parts · 183 categories

4,198 items

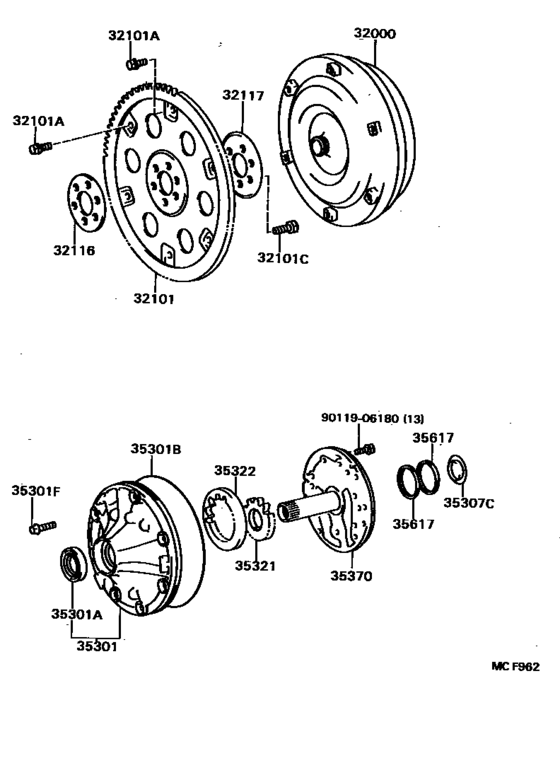

Torque Converter, Front Oil Pump & Chain (Atm) ([12.1988 - ] A340E (8812- )MX75..GLX) 22

#	OEM	Part name
32000	32000-14110	Converter Assy, Torque
32101	32101-14051	Gear Sub-Assy, Drive Plate & Ring
32101	32101-14052	Gear Sub-Assy, Drive Plate & Ring
32101	90119-09009	Bolt(For Drive Plate & Torque Converter Setting)
32101	90119-09010	Bolt(For Drive Plate & Torque Converter Setting)
32101	90109-10037	Bolt(For Drive Plate & Torque Converter Setting)
32116	32116-30011	Spacer, Drive Plate, Front
32117	32117-30011	Spacer, Drive Plate, Rear
35301	35301-30040	Body Sub-Assy, Front Oil Pump
35301	90311-38029	Seal, Oil (For Front Oil Pump)
35301	90311-38020	Seal, Oil (For Front Oil Pump)
35301	90301-99033	Ring, O (For Front Oil Pump Body)
35301	90105-08091	Bolt (For Front Oil Pump Setting)
35307	35789-30020	Race, Thrust Bearing (For Stator Shaft)
35307	35789-30340	Race, Thrust Bearing (For Stator Shaft)
35321	35321-32050	Gear, Front Oil Pump Drive
35321	35321-12090	Gear, Front Oil Pump Drive
35322	35322-32050	Gear, Front Oil Pump Driven
35322	35322-12080	Gear, Front Oil Pump Driven
35370	35370-30031	Shaft Sub-Assy, Stator
35617	35617-30020	Ring, Clutch Drum Oil Seal
9011906180	90119-06180	Bolt (For Stator Shaft)

OEM	Part name	Category
32000-14110	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([12.1988 - ] A340E (8812- )MX75..GLX)
32101-14051	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([12.1988 - ] A340E (8812- )MX75..GLX)
32101-14052	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([12.1988 - ] A340E (8812- )MX75..GLX)
32116-30011	Spacer, Drive Plate, Front	Torque Converter, Front Oil Pump & Chain (Atm) ([12.1988 - ] A340E (8812- )MX75..GLX)
32117-30011	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([12.1988 - ] A340E (8812- )MX75..GLX)
35301-30040	Body Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([12.1988 - ] A340E (8812- )MX75..GLX)
35321-12090	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([12.1988 - ] A340E (8812- )MX75..GLX)
35321-32050	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([12.1988 - ] A340E (8812- )MX75..GLX)
35322-12080	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([12.1988 - ] A340E (8812- )MX75..GLX)
35322-32050	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([12.1988 - ] A340E (8812- )MX75..GLX)
35370-30031	Shaft Sub-Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([12.1988 - ] A340E (8812- )MX75..GLX)
35617-30020	Ring, Clutch Drum Oil Seal	Torque Converter, Front Oil Pump & Chain (Atm) ([12.1988 - ] A340E (8812- )MX75..GLX)
35789-30020	Race, Thrust Bearing (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([12.1988 - ] A340E (8812- )MX75..GLX)
35789-30340	Race, Thrust Bearing (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([12.1988 - ] A340E (8812- )MX75..GLX)
90105-08091	Bolt (For Front Oil Pump Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([12.1988 - ] A340E (8812- )MX75..GLX)
90109-10037	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([12.1988 - ] A340E (8812- )MX75..GLX)
90119-06180	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([12.1988 - ] A340E (8812- )MX75..GLX)
90119-09009	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([12.1988 - ] A340E (8812- )MX75..GLX)
90119-09010	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([12.1988 - ] A340E (8812- )MX75..GLX)
90301-99033	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([12.1988 - ] A340E (8812- )MX75..GLX)
90311-38020	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([12.1988 - ] A340E (8812- )MX75..GLX)
90311-38029	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([12.1988 - ] A340E (8812- )MX75..GLX)
