Search › Model › MX75

MX75

Toyota CRESSIDA-CRESSIDA-WAGON · 1988 · 4,198 parts · 183 categories

4,198 items

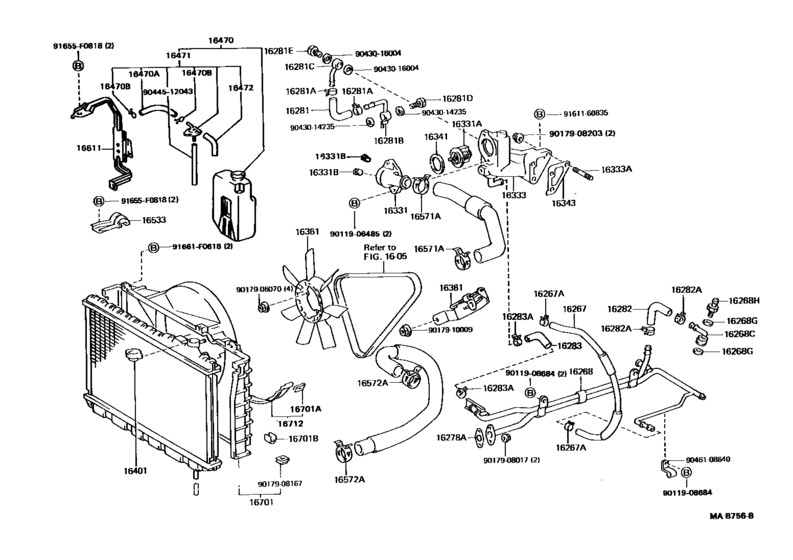

Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE) 66

#	OEM	Part name
16267	16267-42010	Hose, Water By-Pass, No.3
16267	96135-41300	Clamp Or Clip, Hose(For Water By-Pass Hose)
16267	96135-51300	Clamp, Hose
16268	16268-42050	Pipe, Water By-Pass, No.1
16268	16268-42051	Pipe, Water By-Pass, No.1
16268	90405-17005	Union, Water By-Pass Pipe
16268	90430-22006	Gasket(For Water By-Pass Pipe)
16268	90430-22008	Gasket(For Oil Filter Bracket Union)
16268	90401-22004	Bolt, Union(For Water By-Pass Pipe)
16278	16347-42010	Gasket, Water By-Pass
16278	16347-45010	Gasket, Water By-Pass
16281	16281-42020	Hose, Water By-Pass, No.4
16281	90467-15004	Clip(For Ventilation Hose No.2)
16281	90405-10028	Union, Water By-Pass Pipe, No.2
16281	90405-10029	Union, Water By-Pass Pipe, No.3
16281	90401-14008	Bolt, Union(For Water By-Pass Pipe Union No.2)
16281	90401-14091	Bolt, Union(For Turbo Oil Inlet Pipe)
16281	90401-16011	Bolt, Union(For Water By-Pass Pipe Union No.3)
16281	90401-16033	Bolt, Union(for Water By-pass Pipe Union No.3)
16282	16282-42010	Hose, Water By-Pass, No.5
16282	90467-22003	Clip(For Ventilation Hose No.2)
16282	90467-21010	Clip(For Ventilation Hose No.2)
16283	16283-42010	Hose, Water By-Pass, No.6
16331	16331-42021	Outlet, Water
16331	90916-03078	Thermostat
16331	90344-53011	Plug, W/head Taper Screw, No.1
16333	16333-42030	Housing, Water Outlet
16333	90116-08243	Bolt, Stud(For Water Outlet Housing)
16341	16341-35010	Gasket, Water Outlet
16343	16343-42010	Gasket, Water Outlet Housing
16343	16343-42020	Gasket, Water Outlet Housing
16361	16361-41090	Fan
16381	16381-42011	Bar, Fan Belt Adjusting
16401	16401-63010	Cap Sub-Assy,
16470	16470-42060	Tank Assy, Radiator Reserve
16470	85338-42060	Hose, Breather
16470	90467-11085	Clamp Or Clip(For Radiator Breather Hose)
16471	16405-42030	Cap Sub-Assy, Reserve Tank
16472	85338-74040	Hose(For Radiator Drain Cock)
16533	16505-70010	Support, Radiator, Upper
16571	90467-37002	Clip(For Water Inlet Hose)
16571	90467-37005	Clip(For Water Inlet Hose)
16611	16402-42030	Bracket, Radiator Reserve Tank
16701	16711-42050	Shroud Sub-Assy, Fan
16701	90468-06013	Clip(For Fan Shroud)
16701	90541-11002	Cushion, Fan Shroud
16712	16702-42020	Shroud, Fan, No.2
91655	91655-F0818	New Genuine Part
91655	91651-G0814	New Genuine Part
91661	91661-F0618	New Genuine Part
91661	91661-40618	New Genuine Part
9011906485	90119-06485	New Genuine Part
9011908684	90119-08684	New Genuine Part
9017906070	90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070	90179-06159	Nut, Rear Wiper Link Pivot, No.1
9017908017	90179-08017	NUT
9017908167	90179-08167	New Genuine Part
9017908203	90179-08203	Nut
9017908203	90179-08153	NUT
9017910009	90179-10009	NUT
9043014235	90430-14235	Gasket, W/head Taper Screw Plug
9043016004	90430-16004	Gasket, Union Bolt
9044512043	90445-12043	Hose Or Pipe(For Radiator Reserve Tank)
9044512043	90445-12078	Hose(For Radiator Breather)
9046108640	90461-08640	New Genuine Part
9161160835	91611-60835	Bolt(For Clutch Release Cylinder Setting)

OEM	Part name	Category
16267-42010	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
16268-42050	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
16268-42051	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
16281-42020	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
16282-42010	Hose, Water By-Pass, No.5	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
16283-42010	Hose, Water By-Pass, No.6	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
16331-42021	Outlet, Water	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
16333-42030	Housing, Water Outlet	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
16341-35010	Gasket, Water Outlet	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
16343-42010	Gasket, Water Outlet Housing	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
16343-42020	Gasket, Water Outlet Housing	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
16347-42010	Gasket, Water By-Pass	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
16347-45010	Gasket, Water By-Pass	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
16361-41090	Fan	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
16381-42011	Bar, Fan Belt Adjusting	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
16401-63010	Cap Sub-Assy,	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
16402-42030	Bracket, Radiator Reserve Tank	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
16405-42030	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
16470-42060	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
16505-70010	Support, Radiator, Upper	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
16702-42020	Shroud, Fan, No.2	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
16711-42050	Shroud Sub-Assy, Fan	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
85338-42060	Hose, Breather	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
85338-74040	Hose(For Radiator Drain Cock)	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90116-08243	Bolt, Stud(For Water Outlet Housing)	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90119-06485	New Genuine Part	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90119-08684	New Genuine Part	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90179-06159	Nut, Rear Wiper Link Pivot, No.1	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90179-08017	NUT	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90179-08153	NUT	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90179-08167	New Genuine Part	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90179-08203	Nut	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90179-10009	NUT	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90344-53011	Plug, W/head Taper Screw, No.1	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90401-14008	Bolt, Union(For Water By-Pass Pipe Union No.2)	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90401-14091	Bolt, Union(For Turbo Oil Inlet Pipe)	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90401-16011	Bolt, Union(For Water By-Pass Pipe Union No.3)	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90401-16033	Bolt, Union(for Water By-pass Pipe Union No.3)	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90401-22004	Bolt, Union(For Water By-Pass Pipe)	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90405-10028	Union, Water By-Pass Pipe, No.2	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90405-10029	Union, Water By-Pass Pipe, No.3	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90405-17005	Union, Water By-Pass Pipe	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90430-14235	Gasket, W/head Taper Screw Plug	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90430-16004	Gasket, Union Bolt	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90430-22006	Gasket(For Water By-Pass Pipe)	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90430-22008	Gasket(For Oil Filter Bracket Union)	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90445-12043	Hose Or Pipe(For Radiator Reserve Tank)	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90445-12078	Hose(For Radiator Breather)	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90461-08640	New Genuine Part	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90467-11085	Clamp Or Clip(For Radiator Breather Hose)	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90467-15004	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90467-21010	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90467-22003	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90467-37002	Clip(For Water Inlet Hose)	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90467-37005	Clip(For Water Inlet Hose)	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90468-06013	Clip(For Fan Shroud)	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90541-11002	Cushion, Fan Shroud	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
90916-03078	Thermostat	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
91611-60835	Bolt(For Clutch Release Cylinder Setting)	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
91651-G0814	New Genuine Part	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
91655-F0818	New Genuine Part	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
91661-40618	New Genuine Part	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
91661-F0618	New Genuine Part	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
96135-41300	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
96135-51300	Clamp, Hose	Radiator & Water Outlet ([12.1988 - 05.1992] (8812-9205)7MGE)
