Search › Model › MX75
MX75

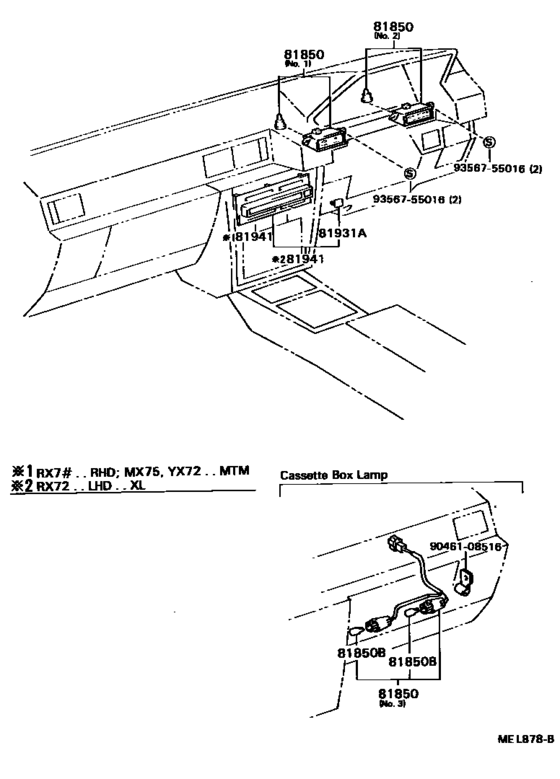

Indicator ([10.1988 - 02.1993] (8810-9302)) 10
| # | OEM | Part name |
|---|---|---|
| 81850 | 81850-22390 | Lamp Assy, Indicator |
| 81850 | 81850-22460 | Lamp Assy, Indicator |
| 81850 | 84999-50140 | Bulb, Indicator Lamp |
| 81850 | 81850-22350 | Lamp Assy, Indicator |
| 81931 | 55538-22041 | Cover, Cooler Switch Hole |
| 81941 | 55519-22122 | Plate, Heater Control Name |
| 81941 | 55519-22162 | Plate, Heater Control Name |
| 9046108516 | 90461-08516 | Clamp(For Injection Pump Inlet Pipe) |
| 9356755016 | 93567-55016 | Screw |
| 9356755016 | 93568-55016 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 55519-22122 | Plate, Heater Control Name | Indicator ([10.1988 - 02.1993] (8810-9302)) |
| 55519-22162 | Plate, Heater Control Name | Indicator ([10.1988 - 02.1993] (8810-9302)) |
| 55538-22041 | Cover, Cooler Switch Hole | Indicator ([10.1988 - 02.1993] (8810-9302)) |
| 81850-22350 | Lamp Assy, Indicator | Indicator ([10.1988 - 02.1993] (8810-9302)) |
| 81850-22390 | Lamp Assy, Indicator | Indicator ([10.1988 - 02.1993] (8810-9302)) |
| 81850-22460 | Lamp Assy, Indicator | Indicator ([10.1988 - 02.1993] (8810-9302)) |
| 84999-50140 | Bulb, Indicator Lamp | Indicator ([10.1988 - 02.1993] (8810-9302)) |
| 90461-08516 | Clamp(For Injection Pump Inlet Pipe) | Indicator ([10.1988 - 02.1993] (8810-9302)) |
| 93567-55016 | Screw | Indicator ([10.1988 - 02.1993] (8810-9302)) |
| 93568-55016 | Screw | Indicator ([10.1988 - 02.1993] (8810-9302)) |
