Search › Model › MX75

MX75

Toyota CRESSIDA-CRESSIDA-WAGON · 1988 · 4,198 parts · 183 categories

4,198 items

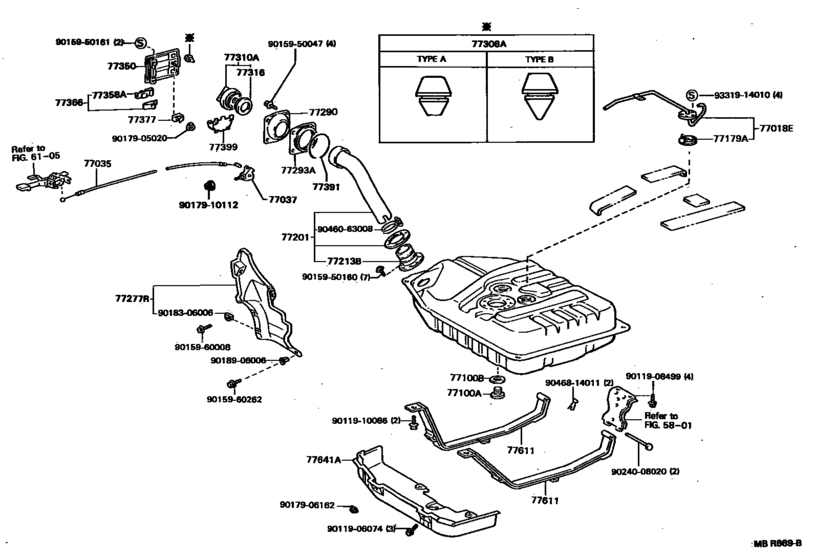

Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72) 49

#	OEM	Part name
77018	77018-22030	Tube Sub-Assy, Fuel Tank Evaporation Vent
77035	77035-22130	Cable Sub-Assy, Fuel Lid Lock Control
77035	77035-32070	Cable Sub-Assy, Fuel Lid Lock Control
77037	77037-14010	Lock Sub-Assy, Fuel Tank Cap
77037	77037-90K00	Lock Sub-Assy, Fuel Tank Cap
77100	90341-20004	Plug(For Fuel Tank)
77100	90430-20007	Gasket(For Fuel Tank)
77179	77179-14030	Retainer, Fuel Tank Mounting, Front
77201	77201-22150	Pipe Sub-Assy, Fuel Tank Inlet
77201	77201-22180	Pipe Sub-Assy, Fuel Tank Inlet
77213	77213-14090	Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77277	77277-22050	Protector, Inlet Tube
77290	77290-22020	Shield Assy, Fuel Tank Filler Pipe
77293	77293-22020	Shield, Fuel Tank Filler Pipe, No.3
77308	90541-08009	Cushion(For Luggage Compartment Door Panel)
77308	90541-08013	Cushion(For Fuel Inlet Box Cover)
77310	77310-12100	Cap Assy, Fuel Tank
77316	77316-12050	Gasket (For Fuel Tank Cap)
77350	77350-22080	Cover Sub-Assy, Fuel Inlet Box
77358	77358-24010	Stopper, Fuel Filler Opening Lid
77366	77360-24010	Retainer, Fuel Inlet Cushion
77377	77377-20030	Retainer, Fuel Filler Opening Lid Lock
77391	77391-16010	Ring, Fuel Inlet Box
77399	77399-22010	Hanger, Fuel Tank Cap
77611	77601-22090	Band, Fuel Tank
77611	77602-22110	Band, Fuel Tank
77641	77641-22060	Protector, Fuel Tank, No.1
9011906074	90119-06074	Bolt
9011908499	90119-08499	Bolt
9011910086	90119-10086	New Genuine Part
9011910086	91665-61045	BOLT
9015950047	90159-50047	New Genuine Part
9015950160	90159-50160	New Genuine Part
9015950161	90159-50161	New Genuine Part
9015960008	90159-60008	SCREW
9015960262	90159-60262	New Genuine Part
9017905020	90179-05020	NUT
9017905020	90179-05011	NUT
9017906162	90179-06162	New Genuine Part
9017906162	90179-06308	NUT
9017910112	90179-10112	New Genuine Part
9017910112	90179-10186	New Genuine Part
9018306006	90183-06006	Retainer, Fuel Filler Pipe Protector
9018906006	90189-06006	Grommet
9024008020	90240-08020	Pin (For Fuel Tank Band)
9046063008	90460-63008	Clamp, Hose
9046063008	96111-10630	Clamp, Hose
9046814011	90468-14011	Clip, No.2(For Parking Brake)
9331914010	93319-14010	SCREW

OEM	Part name	Category
77018-22030	Tube Sub-Assy, Fuel Tank Evaporation Vent	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
77035-22130	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
77035-32070	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
77037-14010	Lock Sub-Assy, Fuel Tank Cap	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
77037-90K00	Lock Sub-Assy, Fuel Tank Cap	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
77179-14030	Retainer, Fuel Tank Mounting, Front	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
77201-22150	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
77201-22180	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
77213-14090	Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
77277-22050	Protector, Inlet Tube	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
77290-22020	Shield Assy, Fuel Tank Filler Pipe	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
77293-22020	Shield, Fuel Tank Filler Pipe, No.3	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
77310-12100	Cap Assy, Fuel Tank	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
77316-12050	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
77350-22080	Cover Sub-Assy, Fuel Inlet Box	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
77358-24010	Stopper, Fuel Filler Opening Lid	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
77360-24010	Retainer, Fuel Inlet Cushion	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
77377-20030	Retainer, Fuel Filler Opening Lid Lock	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
77391-16010	Ring, Fuel Inlet Box	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
77399-22010	Hanger, Fuel Tank Cap	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
77601-22090	Band, Fuel Tank	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
77602-22110	Band, Fuel Tank	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
77641-22060	Protector, Fuel Tank, No.1	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
90119-06074	Bolt	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
90119-08499	Bolt	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
90119-10086	New Genuine Part	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
90159-50047	New Genuine Part	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
90159-50160	New Genuine Part	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
90159-50161	New Genuine Part	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
90159-60008	SCREW	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
90159-60262	New Genuine Part	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
90179-05011	NUT	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
90179-05020	NUT	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
90179-06162	New Genuine Part	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
90179-06308	NUT	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
90179-10112	New Genuine Part	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
90179-10186	New Genuine Part	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
90183-06006	Retainer, Fuel Filler Pipe Protector	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
90189-06006	Grommet	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
90240-08020	Pin (For Fuel Tank Band)	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
90341-20004	Plug(For Fuel Tank)	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
90430-20007	Gasket(For Fuel Tank)	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
90460-63008	Clamp, Hose	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
90468-14011	Clip, No.2(For Parking Brake)	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
90541-08009	Cushion(For Luggage Compartment Door Panel)	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
90541-08013	Cushion(For Fuel Inlet Box Cover)	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
91665-61045	BOLT	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
93319-14010	SCREW	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
96111-10630	Clamp, Hose	Fuel Tank & Tube ([12.1988 - ] (8812- )GX71,MX75,RX73,YX72)
