MX75

Toyota CRESSIDA-CRESSIDA-WAGON · 1988 · 4,198 parts · 183 categories

4,198 items

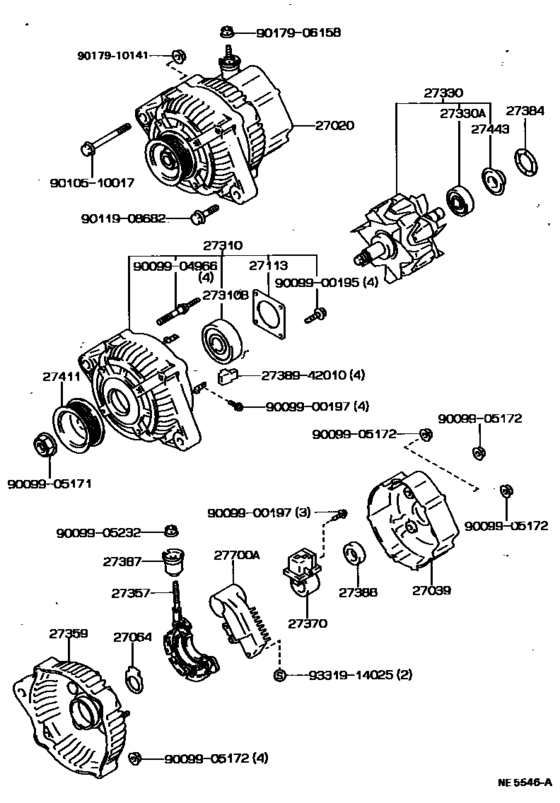

Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE) 41

#	OEM	Part name
27020	27060-42030	Alternator Assy
27039	27039-42010	Cover, Alternator Rear End
27039	27039-16310	Cover, Alternator Rear End
27064	27064-42010	Seal, Alternator Plate
27113	27312-42010	Plate, Bearing Retainer, Alternator
27310	27310-42010	Frame Assy, Drive End, Alternator
27310	27310-74110	Frame Assy, Drive End, Alternator
27310	90099-10160	Bearing(For Alternator Drive End Frame)
27310	90099-10219	Bearing(For Alternator Drive End Frame)
27310	90099-10192	Bearing(For Alternator Drive End Frame)
27330	27330-42010	Rotor Assy, Alternator
27330	27330-16390	Rotor Assy, Alternator
27330	27330-76030	Rotor Assy, Alternator
27330	90099-10140	Bearing(For Alternator Rotor)
27357	27357-42010	Holder, Alternator, W/rectifier
27357	27357-50040	Holder, Alternator, W/rectifier
27359	27359-42010	Frame, Alternator Rectifier End
27359	27359-74330	Frame, Alternator Rectifier End
27370	27370-42010	Holder Assy, Alternator Brush
27370	27370-75060	Holder Assy, Alternator Brush
27384	27384-42010	Washer
27384	27384-50030	Holder, Alternator Brush, A
27387	27387-42020	Insulator, Terminal
27388	27388-42010	Cover, Alternator Brush
27411	27411-42030	Pulley, Alternator
27443	27443-63020	Cover, Alternator Bearing
27700	27700-16010	Regulator Assy, Generator
27700	27700-66020	Regulator Assy, Generator
2738942010	27389-42010	Insulator, Terminal
9009900195	90099-00195	New Genuine Part
9009900197	90099-00197	Screw
9009904966	90099-04966	Bearing(for Alternator Rotor)
9009905171	90099-05171	Nut(For Alternator Pulley)
9009905172	90099-05172	New Genuine Part
9009905232	90099-05232	New Genuine Part
9010510017	90105-10017	Bolt
9011908682	90119-08682	New Genuine Part
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9017910141	90179-10141	Nut(For Counter Gear Shaft)
9017910141	90179-10132	Nut
9331914025	93319-14025	Screw W Washer

OEM	Part name	Category
27039-16310	Cover, Alternator Rear End	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
27039-42010	Cover, Alternator Rear End	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
27060-42030	Alternator Assy	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
27064-42010	Seal, Alternator Plate	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
27310-42010	Frame Assy, Drive End, Alternator	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
27310-74110	Frame Assy, Drive End, Alternator	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
27312-42010	Plate, Bearing Retainer, Alternator	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
27330-16390	Rotor Assy, Alternator	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
27330-42010	Rotor Assy, Alternator	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
27330-76030	Rotor Assy, Alternator	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
27357-42010	Holder, Alternator, W/rectifier	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
27357-50040	Holder, Alternator, W/rectifier	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
27359-42010	Frame, Alternator Rectifier End	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
27359-74330	Frame, Alternator Rectifier End	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
27370-42010	Holder Assy, Alternator Brush	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
27370-75060	Holder Assy, Alternator Brush	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
27384-42010	Washer	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
27384-50030	Holder, Alternator Brush, A	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
27387-42020	Insulator, Terminal	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
27388-42010	Cover, Alternator Brush	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
27389-42010	Insulator, Terminal	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
27411-42030	Pulley, Alternator	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
27443-63020	Cover, Alternator Bearing	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
27700-16010	Regulator Assy, Generator	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
27700-66020	Regulator Assy, Generator	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
90099-00195	New Genuine Part	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
90099-00197	Screw	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
90099-04966	Bearing(for Alternator Rotor)	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
90099-05171	Nut(For Alternator Pulley)	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
90099-05172	New Genuine Part	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
90099-05232	New Genuine Part	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
90099-10140	Bearing(For Alternator Rotor)	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
90099-10160	Bearing(For Alternator Drive End Frame)	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
90099-10192	Bearing(For Alternator Drive End Frame)	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
90099-10219	Bearing(For Alternator Drive End Frame)	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
90105-10017	Bolt	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
90119-08682	New Genuine Part	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
90179-10132	Nut	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
90179-10141	Nut(For Counter Gear Shaft)	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
93319-14025	Screw W Washer	Alternator ([12.1988 - 05.1992] 12V 80A (8812-9205)7MGE)
