MX73

Toyota CRESSIDA-CRESSIDA-WAGON · 1984 · 5,132 parts · 216 categories

5,132 items

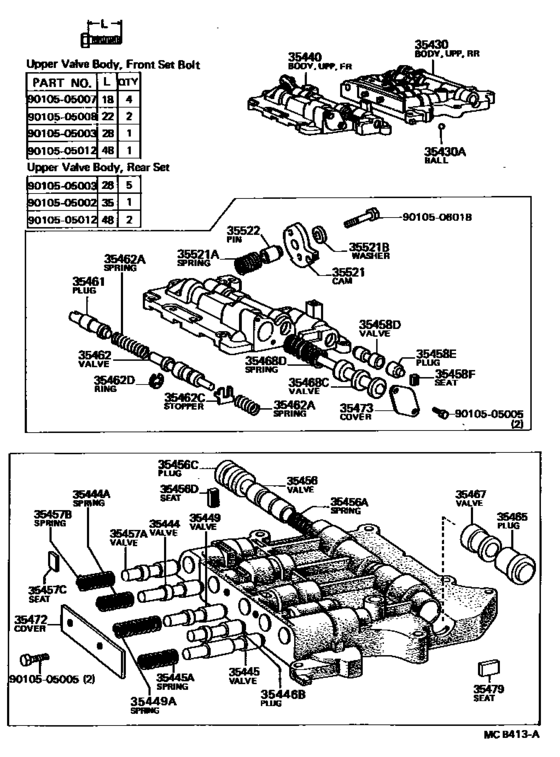

Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN) 47

#	OEM	Part name
35430	35430-22140	Body Assy, Rear Upper Valve
35430	35495-22010	Ball (For Transfer Upper Valve Body)
35430	35495-22020	Ball (For Transfer Upper Valve Body)
35430	90360-06023	Ball (For Rear Upper Valve Body)
35440	35440-22101	Body Assy, Front Upper Valve
35444	35444-22010	Valve, Intermediate Modulator
35444	90501-11009	Spring, Compression (For Intermediate Modulator Valve)
35445	35445-22010	Valve, Low Modulator
35445	90501-08725	Spring, Compression (For Intermediate Modulator Valve)
35446	35446-20010	Valve, Governor Modulator
35449	35447-22010	Valve, Reverse Clutch Sequence
35449	90501-12055	Spring, Compression (For Reverse Clutch Sequence Valve)
35456	35456-22010	Valve, 2-3 Shift
35456	90501-08724	Spring, Compression (For 2-3 Shift Valve)
35456	35452-22010	Plug (For 2-3 Shift Valve)
35456	35493-22020	Seat, Plug (For Lock Up Relay Valve)
35457	35457-22010	Valve, Detent Regulator
35457	90501-09007	Spring, Compression (For Detent Regulator Valve)
35457	35438-22020	Seat (For Direct Clutch Modulator Valve Plug)
35458	35458-22010	Valve, Cut Back
35458	35459-22010	Plug (For Cut Back Valve)
35458	35493-22010	Seat (For Cut Back Valve)
35461	35408-22020	Plug, Down Shift
35462	35462-22011	Valve, Throttle
35462	90501-07680	Spring, Compression (For Throttle Valve)
35462	90501-12077	Spring, Compression (For Primary Down Shift Plug)
35462	35422-22010	Stopper, Valve Vibrating
35462	90523-06023	Ring, E (For Throttle Valve)
35465	35465-22010	Plug, Intermediate Shift Valve
35467	35467-22010	Valve, Intermediate Shift
35468	35204-30010	Valve, Secondary Regulator
35468	90501-19001	Spring, Compression (For Secondary Regulator Valve)
35472	35472-22010	Cover, Valve Body, No.2
35473	35473-22010	Cover, Transmission Valve Body
35479	35479-22010	Seat, Intermediate Shift Valve
35521	35521-30010	Cam, Throttle Valve
35521	90508-12331	Spring (For Throttle Valve Cam Return)
35521	90201-06472	Washer (For Throttle Valve Cam Set)
35522	35522-22010	Pin, Throttle Valve Cam
9010505002	90105-05002	New Genuine Part
9010505003	90105-05003	Bolt (For Pressure Regulator Valve No.2)
9010505003	90119-05035	Bolt (For Pressure Regulator Valve No.2)
9010505005	90105-05005	Bolt (For Transfer Relief Valve Plate)
9010505007	90105-05007	New Genuine Part
9010505008	90105-05008	New Genuine Part
9010505012	90105-05012	New Genuine Part
9010506018	90105-06018	Bolt (For Throttle Valve Cam Set)

OEM	Part name	Category
35204-30010	Valve, Secondary Regulator	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
35408-22020	Plug, Down Shift	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
35422-22010	Stopper, Valve Vibrating	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
35430-22140	Body Assy, Rear Upper Valve	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
35438-22020	Seat (For Direct Clutch Modulator Valve Plug)	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
35440-22101	Body Assy, Front Upper Valve	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
35444-22010	Valve, Intermediate Modulator	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
35445-22010	Valve, Low Modulator	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
35446-20010	Valve, Governor Modulator	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
35447-22010	Valve, Reverse Clutch Sequence	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
35452-22010	Plug (For 2-3 Shift Valve)	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
35456-22010	Valve, 2-3 Shift	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
35457-22010	Valve, Detent Regulator	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
35458-22010	Valve, Cut Back	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
35459-22010	Plug (For Cut Back Valve)	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
35462-22011	Valve, Throttle	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
35465-22010	Plug, Intermediate Shift Valve	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
35467-22010	Valve, Intermediate Shift	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
35472-22010	Cover, Valve Body, No.2	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
35473-22010	Cover, Transmission Valve Body	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
35479-22010	Seat, Intermediate Shift Valve	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
35493-22010	Seat (For Cut Back Valve)	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
35493-22020	Seat, Plug (For Lock Up Relay Valve)	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
35495-22010	Ball (For Transfer Upper Valve Body)	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
35495-22020	Ball (For Transfer Upper Valve Body)	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
35521-30010	Cam, Throttle Valve	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
35522-22010	Pin, Throttle Valve Cam	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
90105-05002	New Genuine Part	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
90105-05003	Bolt (For Pressure Regulator Valve No.2)	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
90105-05005	Bolt (For Transfer Relief Valve Plate)	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
90105-05007	New Genuine Part	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
90105-05008	New Genuine Part	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
90105-05012	New Genuine Part	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
90105-06018	Bolt (For Throttle Valve Cam Set)	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
90119-05035	Bolt (For Pressure Regulator Valve No.2)	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
90201-06472	Washer (For Throttle Valve Cam Set)	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
90360-06023	Ball (For Rear Upper Valve Body)	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
90501-07680	Spring, Compression (For Throttle Valve)	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
90501-08724	Spring, Compression (For 2-3 Shift Valve)	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
90501-08725	Spring, Compression (For Intermediate Modulator Valve)	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
90501-09007	Spring, Compression (For Detent Regulator Valve)	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
90501-11009	Spring, Compression (For Intermediate Modulator Valve)	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
90501-12055	Spring, Compression (For Reverse Clutch Sequence Valve)	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
90501-12077	Spring, Compression (For Primary Down Shift Plug)	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
90501-19001	Spring, Compression (For Secondary Regulator Valve)	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
90508-12331	Spring (For Throttle Valve Cam Return)	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
90523-06023	Ring, E (For Throttle Valve)	Valve Body & Oil Strainer (Atm) ([01.1987 - ] (8408-8508)GX71,MX72 ; (8408-8508)MX73..4FC..EFI ; (8508- )GX71,LX71,MX72 ; (850 8- )MX73..LHD. .4FC..EFI ; (8701- )MX73..4FC..EFI..GEN)
