MX73

Toyota CRESSIDA-CRESSIDA-WAGON · 1984 · 5,132 parts · 216 categories
MX73 ×

← Back to categories

5,132 items

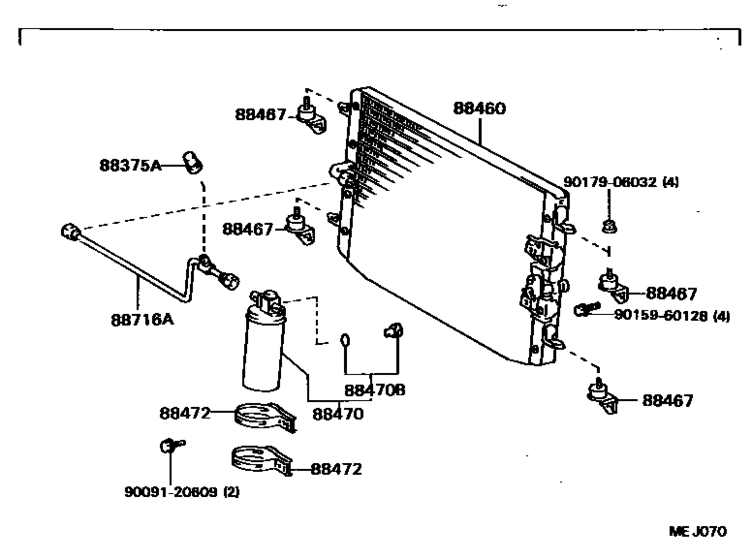

Heating & Air Conditioning - Cooler Piping ([01.1987 - ] (8408- )ARL ; (8408- )GX71..RHD..GEN ; (87 01- )MX73..EFI..GEN) 42
#OEMPart name
88375 88375-20010 Cap, Service Valve (For Cooler Pipe)
88375 88375-30270 Cap, Cooler Compressor Service Valve
88460 88460-22271 Condenser Assy, Cooler
88460 88460-22231 Condenser Assy, W/receiver
88467 88467-22060 Cushion, Cooler Condenser, No.1
88467 88467-14040 Cushion, Cooler Condenser, No.1
88467 88467-14050 Cushion, Cooler Condenser, No.1
88470 88470-12070 Receiver & Dryer Assy, Cooler
88470 88475-12020 Bolt, Fuse
88472 88472-22090 Bracket, Receiver Tank, No.1
88479 90986-02001 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02004 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02005 New Genuine Part
88503 88503-22160 Regulator Assy, Pressure
88648 88648-22100 Wiring, Cooler
88688 88688-22220 Bracket, Cooler Refrigerant Hose, No.1
88688 88688-22190 Bracket, Cooler Refrigerant Hose, No.2
88711 88711-22331 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-22790 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-22461 Hose, Cooler Refrigerant Suction, No.1
88712 88712-2A160 Hose, Cooler Refrigerant Suction, No.1
88716 88716-22430 Pipe, Cooler Refrigerant Liquid, A
88716 88716-22632 Pipe, Cooler Refrigerant Liquid, A
88716 88716-22531 Pipe, Cooler Refrigerant Liquid, B
88716 88716-22050 Pipe, Cooler Refrigerant Liquid, E
88717 88717-22210 Pipe, Cooler Refrigerant Suction, A
88718 88718-22570 Clamp(For Cooler Refrigerant Pipe), No.1
88718 88718-22650 Clamp(For Cooler Refrigerant Pipe), No.2
88718 88718-12280 Clamp(For Cooler Refrigerant Pipe), No.1
88718 88718-22670 Clamp(For Cooler Refrigerant Hose), No.1
88891 88892-22110 Packing A (For Cooler)
9009120609 90091-20609 BOLT
9009932100 90099-32100 Cushion, Cooler Condenser, No.2
9015960128 90159-60128 New Genuine Part
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9165160845 91651-60845 Bolt(For Rocker Support Set)
9165160845 91651-B0845 Bolt, Flange (For Idler)
9338516016 93385-16016 New Genuine Part
9338516030 93385-16030 Lever, Cooler Control, No.1
