Search › Model › MX73

MX73

Toyota CRESSIDA-CRESSIDA-WAGON · 1984 · 5,132 parts · 216 categories

5,132 items

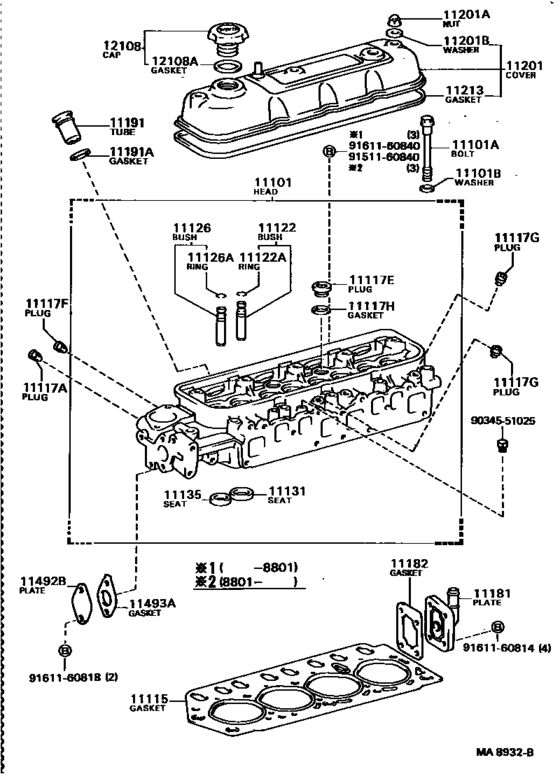

Cylinder Head ([02.1985 - ] (8502- )5M#) 47

#	OEM	Part name
11101	11101-43022	Head Sub-Assy, Cylinder
11101	11101-49305	Head Sub-Assy, Cylinder
11101	90910-02058	Bolt(For Cylinder Head Set)
11101	11101-43040	Head Sub-Assy, Cylinder
11101	90110-12001	Bolt(For Cylinder Head Set)
11101	90201-12027	Washer, Plate(For Cylinder Head Set)
11115	11115-43021	Gasket, Cylinder Head
11115	11115-43030	Gasket, Cylinder Head
11117	90341-36001	Plug, W/head Taper Screw, No.1
11117	90430-36001	Gasket(For Water Hole)
11117	90341-20002	Plug, W/head Taper Screw, No.1
11117	90341-32031	Plug, W/head Straight Screw, No.2
11122	11122-41020	Bush, Intake Valve Guide
11122	11123-41020	Bush, Intake Valve Guide
11122	90520-12049	Ring, Shaft Snap (For Valve Guide Bush)
11122	11122-43010	Bush, Intake Valve Guide
11122	11123-43010	Bush, Intake Valve Guide
11126	11126-41040	Bush, Exhaust Valve Guide
11126	11127-41040	Bush, Exhaust Valve Guide
11131	11131-43010	Seat, Intake Valve
11131	11132-43010	Seat, Intake Valve
11131	11131-43020	Seat, Intake Valve
11131	11132-43020	Seat, Intake Valve
11135	11135-45010	Seat, Exhaust Valve
11135	11136-45010	Seat, Exhaust Valve
11135	11135-43010	Seat, Exhaust Valve
11135	11136-43010	Seat, Exhaust Valve
11201	11201-49146	Cover Sub-Assy, Cylinder Head
11201	11201-49147	Cover Sub-Assy, Cylinder Head
11201	90176-08015	Nut, Cap(For Cylinder Head Cover)
11201	90210-09002	Washer, Seal(For Cylinder Head Cover)
11201	90210-09009	Washer, Seal(For Cylinder Head Cover)
11201	11201-49195	Cover Sub-Assy, Cylinder Head
11201	11212-49015	Cover Sub-Assy, Cylinder Head
11201	90210-06003	Washer, Seal(For Cylinder Head Cover)
11213	11213-41020	Gasket, Cylinder Head Cover
11213	11213-43020	Gasket, Cylinder Head Cover
12108	12180-13030	Cap Sub-Assy, Oil Filler
12108	12180-55010	Cap Sub-Assy, Oil Filler
12108	90430-37140	Gasket(For Oil Filler Cap)
9034551025	90345-51025	Plug, W/head Taper Screw, No.2
9151160840	91511-60840	Bolt(For Alternator)
9151160840	91511-J0840	Bolt(For Alternator)
9161160814	91611-60814	Bolt
9161160818	91611-60818	Bolt(For Oil Receiver Pipe)
9161160818	90119-08830	Bolt(For Oil Receiver Pipe)
9161160840	91611-60840	BOLT

OEM	Part name	Category
11101-43022	Head Sub-Assy, Cylinder	Cylinder Head ([02.1985 - ] (8502- )5M#)
11101-43040	Head Sub-Assy, Cylinder	Cylinder Head ([02.1985 - ] (8502- )5M#)
11101-49305	Head Sub-Assy, Cylinder	Cylinder Head ([02.1985 - ] (8502- )5M#)
11115-43021	Gasket, Cylinder Head	Cylinder Head ([02.1985 - ] (8502- )5M#)
11115-43030	Gasket, Cylinder Head	Cylinder Head ([02.1985 - ] (8502- )5M#)
11122-41020	Bush, Intake Valve Guide	Cylinder Head ([02.1985 - ] (8502- )5M#)
11122-43010	Bush, Intake Valve Guide	Cylinder Head ([02.1985 - ] (8502- )5M#)
11123-41020	Bush, Intake Valve Guide	Cylinder Head ([02.1985 - ] (8502- )5M#)
11123-43010	Bush, Intake Valve Guide	Cylinder Head ([02.1985 - ] (8502- )5M#)
11126-41040	Bush, Exhaust Valve Guide	Cylinder Head ([02.1985 - ] (8502- )5M#)
11127-41040	Bush, Exhaust Valve Guide	Cylinder Head ([02.1985 - ] (8502- )5M#)
11131-43010	Seat, Intake Valve	Cylinder Head ([02.1985 - ] (8502- )5M#)
11131-43020	Seat, Intake Valve	Cylinder Head ([02.1985 - ] (8502- )5M#)
11132-43010	Seat, Intake Valve	Cylinder Head ([02.1985 - ] (8502- )5M#)
11132-43020	Seat, Intake Valve	Cylinder Head ([02.1985 - ] (8502- )5M#)
11135-43010	Seat, Exhaust Valve	Cylinder Head ([02.1985 - ] (8502- )5M#)
11135-45010	Seat, Exhaust Valve	Cylinder Head ([02.1985 - ] (8502- )5M#)
11136-43010	Seat, Exhaust Valve	Cylinder Head ([02.1985 - ] (8502- )5M#)
11136-45010	Seat, Exhaust Valve	Cylinder Head ([02.1985 - ] (8502- )5M#)
11201-49146	Cover Sub-Assy, Cylinder Head	Cylinder Head ([02.1985 - ] (8502- )5M#)
11201-49147	Cover Sub-Assy, Cylinder Head	Cylinder Head ([02.1985 - ] (8502- )5M#)
11201-49195	Cover Sub-Assy, Cylinder Head	Cylinder Head ([02.1985 - ] (8502- )5M#)
11212-49015	Cover Sub-Assy, Cylinder Head	Cylinder Head ([02.1985 - ] (8502- )5M#)
11213-41020	Gasket, Cylinder Head Cover	Cylinder Head ([02.1985 - ] (8502- )5M#)
11213-43020	Gasket, Cylinder Head Cover	Cylinder Head ([02.1985 - ] (8502- )5M#)
12180-13030	Cap Sub-Assy, Oil Filler	Cylinder Head ([02.1985 - ] (8502- )5M#)
12180-55010	Cap Sub-Assy, Oil Filler	Cylinder Head ([02.1985 - ] (8502- )5M#)
90110-12001	Bolt(For Cylinder Head Set)	Cylinder Head ([02.1985 - ] (8502- )5M#)
90119-08830	Bolt(For Oil Receiver Pipe)	Cylinder Head ([02.1985 - ] (8502- )5M#)
90176-08015	Nut, Cap(For Cylinder Head Cover)	Cylinder Head ([02.1985 - ] (8502- )5M#)
90201-12027	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([02.1985 - ] (8502- )5M#)
90210-06003	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([02.1985 - ] (8502- )5M#)
90210-09002	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([02.1985 - ] (8502- )5M#)
90210-09009	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([02.1985 - ] (8502- )5M#)
90341-20002	Plug, W/head Taper Screw, No.1	Cylinder Head ([02.1985 - ] (8502- )5M#)
90341-32031	Plug, W/head Straight Screw, No.2	Cylinder Head ([02.1985 - ] (8502- )5M#)
90341-36001	Plug, W/head Taper Screw, No.1	Cylinder Head ([02.1985 - ] (8502- )5M#)
90345-51025	Plug, W/head Taper Screw, No.2	Cylinder Head ([02.1985 - ] (8502- )5M#)
90430-36001	Gasket(For Water Hole)	Cylinder Head ([02.1985 - ] (8502- )5M#)
90430-37140	Gasket(For Oil Filler Cap)	Cylinder Head ([02.1985 - ] (8502- )5M#)
90520-12049	Ring, Shaft Snap (For Valve Guide Bush)	Cylinder Head ([02.1985 - ] (8502- )5M#)
90910-02058	Bolt(For Cylinder Head Set)	Cylinder Head ([02.1985 - ] (8502- )5M#)
91511-60840	Bolt(For Alternator)	Cylinder Head ([02.1985 - ] (8502- )5M#)
91511-J0840	Bolt(For Alternator)	Cylinder Head ([02.1985 - ] (8502- )5M#)
91611-60814	Bolt	Cylinder Head ([02.1985 - ] (8502- )5M#)
91611-60818	Bolt(For Oil Receiver Pipe)	Cylinder Head ([02.1985 - ] (8502- )5M#)
91611-60840	BOLT	Cylinder Head ([02.1985 - ] (8502- )5M#)
