Search › Model › MX72

MX72

Toyota CRESSIDA-CRESSIDA-WAGON · 1984 · 7,195 parts · 308 categories

7,195 items

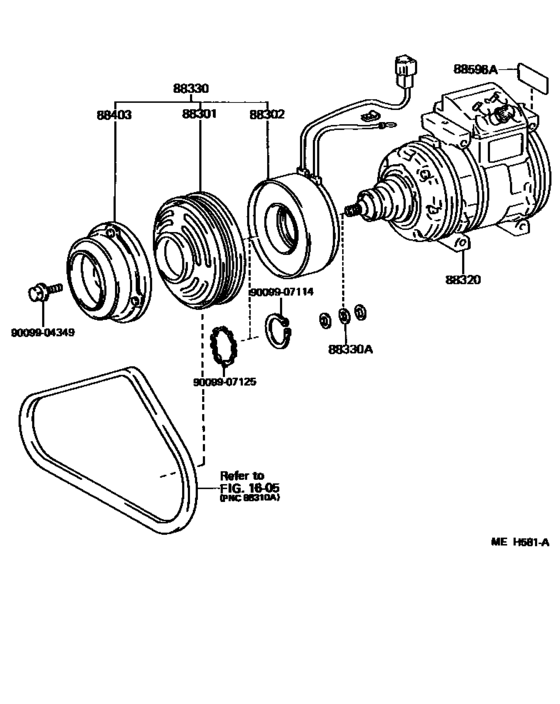

Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- )) 63

#	OEM	Part name
88301	88412-26030	Rotor Sub-Assy, Magnet Clutch
88301	88412-30290	Rotor Sub-Assy, Magnet Clutch
88302	88411-16020	Stator Sub-Assy, Magnet Clutch
88302	88411-60030	Stator Sub-Assy, Magnet Clutch
88302	88411-22120	Stator Sub-Assy, Magnet Clutch
88320	88320-14521	Compressor Assy, Cooler
88320	88320-22H91	Compressor Assy, Cooler
88320	88320-22300	Compressor Assy, Cooler
88320	88320-22430	Compressor Assy, Cooler
88320	90099-04304	Bolt, Through
88320	90099-04958	Bolt, Through
88320	90099-04334	Bolt, Service Valve
88320	90099-04929	Bolt, Service Valve
88321	88321-14011	Head, Cooler Compressor Cylinder
88321	88321-14020	Head, Cooler Compressor Cylinder
88321	88321-40010	Head, Cooler Compressor Cylinder
88321	88322-14011	Head, Cooler Compressor Cylinder
88321	88322-14020	Head, Cooler Compressor Cylinder
88321	88322-40010	Head, Cooler Compressor Cylinder
88321	88341-14010	Plate Sub-Assy, Valve
88321	88341-14020	Plate Sub-Assy, Valve
88321	88341-40010	Plate Sub-Assy, Valve
88321	88342-14010	Plate Sub-Assy, Valve
88321	88342-14020	Plate Sub-Assy, Valve
88321	88342-40010	Plate Sub-Assy, Valve
88321	88344-14011	Reed Sub-Assy, Valve
88321	88344-14020	Reed Sub-Assy, Valve - DISCHARGE VALVE
88321	88344-40010	Reed Sub-Assy, Valve
88321	88343-14011	Reed, Suction Valve
88321	88343-14020	Reed, Suction Valve
88321	88343-40010	Reed, Suction Valve
88322	88371-14310	Valve, Cooler Compressor Suction Service
88322	88371-22160	Valve, Cooler Compressor Suction Service
88322	88371-22280	Valve, Cooler Compressor Suction Service
88325	90099-08058	Pin, Cylinder Block
88330	88410-22120	Clutch Assy, Magnet
88330	88410-22140	Clutch Assy, Magnet
88330	88410-22190	Clutch Assy, Magnet
88330	88335-12050	Washer (For Magnet Clutch)
88330	88335-14020	Washer
88335	04881-10010	Gasket Kit, Cooler Compressor Overhaul
88335	88335-28020	Gasket Kit, Overhaul - COOLER COMPRESSOR OVERHAUL
88335	04881-40010	Gasket Kit, Overhaul
88335	88335-30390	Gasket Kit, Overhaul
88335	88335-14010	Gasket Kit, Overhaul
88335	88335-2B030	Gasket Kit, Overhaul
88360	88360-14020	Seal Assy, Cooler Compressor Shaft
88360	88360-26020	Seal Assy, Cooler Compressor Shaft
88360	88360-14040	Seal Assy, Cooler Compressor Shaft
88360	88360-40010	Seal Assy, Cooler Compressor Shaft
88360	90096-90022	Ring, Compressor Seal Plate Snap
88374	88374-12020	Valve, Service, No.1
88374	88374-20020	Valve, Service, No.1
88375	88375-30270	Cap, Cooler Compressor Service Valve
88376	88376-22010	Cap, Blind
88376	88376-22020	Cap, Blind
88403	88403-16010	Hub Sub-Assy, Magnet Clutch
88403	88403-16011	Hub Sub-Assy, Magnet Clutch
88403	88403-30280	Hub Sub-Assy, Magnet Clutch
88596	88536-12010	Plate, Caution
9009904349	90099-04349	Bolt, Magnet Clutch Setting
9009907114	90099-07114	Ring, Snap (For Magnet Clutch)
9009907125	90099-07125	Ring, Snap

OEM	Part name	Category
04881-10010	Gasket Kit, Cooler Compressor Overhaul	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
04881-40010	Gasket Kit, Overhaul	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88320-14521	Compressor Assy, Cooler	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88320-22300	Compressor Assy, Cooler	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88320-22430	Compressor Assy, Cooler	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88320-22H91	Compressor Assy, Cooler	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88321-14011	Head, Cooler Compressor Cylinder	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88321-14020	Head, Cooler Compressor Cylinder	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88321-40010	Head, Cooler Compressor Cylinder	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88322-14011	Head, Cooler Compressor Cylinder	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88322-14020	Head, Cooler Compressor Cylinder	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88322-40010	Head, Cooler Compressor Cylinder	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88335-12050	Washer (For Magnet Clutch)	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88335-14010	Gasket Kit, Overhaul	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88335-14020	Washer	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88335-28020	Gasket Kit, Overhaul - COOLER COMPRESSOR OVERHAUL	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88335-2B030	Gasket Kit, Overhaul	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88335-30390	Gasket Kit, Overhaul	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88341-14010	Plate Sub-Assy, Valve	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88341-14020	Plate Sub-Assy, Valve	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88341-40010	Plate Sub-Assy, Valve	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88342-14010	Plate Sub-Assy, Valve	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88342-14020	Plate Sub-Assy, Valve	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88342-40010	Plate Sub-Assy, Valve	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88343-14011	Reed, Suction Valve	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88343-14020	Reed, Suction Valve	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88343-40010	Reed, Suction Valve	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88344-14011	Reed Sub-Assy, Valve	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88344-14020	Reed Sub-Assy, Valve - DISCHARGE VALVE	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88344-40010	Reed Sub-Assy, Valve	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88360-14020	Seal Assy, Cooler Compressor Shaft	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88360-14040	Seal Assy, Cooler Compressor Shaft	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88360-26020	Seal Assy, Cooler Compressor Shaft	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88360-40010	Seal Assy, Cooler Compressor Shaft	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88371-14310	Valve, Cooler Compressor Suction Service	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88371-22160	Valve, Cooler Compressor Suction Service	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88371-22280	Valve, Cooler Compressor Suction Service	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88374-12020	Valve, Service, No.1	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88374-20020	Valve, Service, No.1	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88375-30270	Cap, Cooler Compressor Service Valve	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88376-22010	Cap, Blind	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88376-22020	Cap, Blind	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88403-16010	Hub Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88403-16011	Hub Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88403-30280	Hub Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88410-22120	Clutch Assy, Magnet	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88410-22140	Clutch Assy, Magnet	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88410-22190	Clutch Assy, Magnet	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88411-16020	Stator Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88411-22120	Stator Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88411-60030	Stator Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88412-26030	Rotor Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88412-30290	Rotor Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
88536-12010	Plate, Caution	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
90096-90022	Ring, Compressor Seal Plate Snap	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
90099-04304	Bolt, Through	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
90099-04334	Bolt, Service Valve	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
90099-04349	Bolt, Magnet Clutch Setting	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
90099-04929	Bolt, Service Valve	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
90099-04958	Bolt, Through	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
90099-07114	Ring, Snap (For Magnet Clutch)	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
90099-07125	Ring, Snap	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
90099-08058	Pin, Cylinder Block	Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- ))
