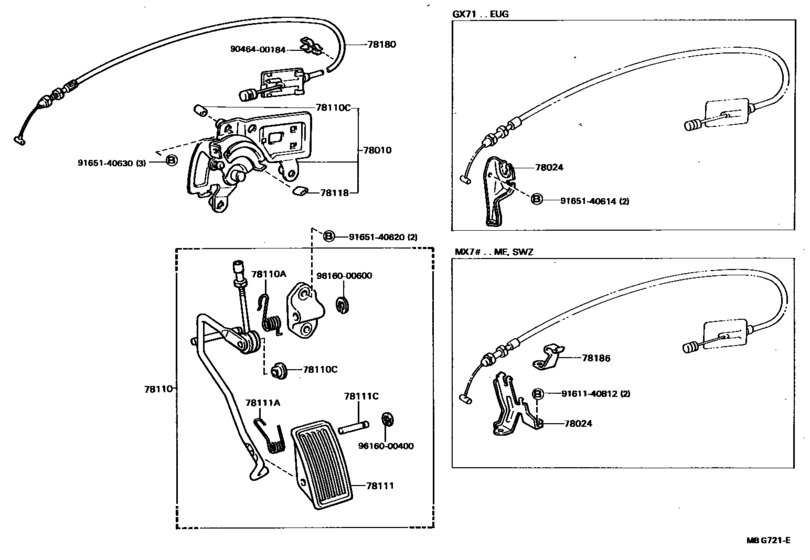

| 78100-22050 |
Link, Accelerator |
Accelerator Link ([08.1984 - ] (8408- )GX71,MX7#..LHD) |
| 78111-12100 |
Pedal, Accelerator |
Accelerator Link ([08.1984 - ] (8408- )GX71,MX7#..LHD) |
| 78119-30050 |
Stopper (For Accelerator Pedal) |
Accelerator Link ([08.1984 - ] (8408- )GX71,MX7#..LHD) |
| 78120-22250 |
Rod Assy, Accelerator Pedal |
Accelerator Link ([08.1984 - ] (8408- )GX71,MX7#..LHD) |
| 78120-22251 |
Rod Assy, Accelerator Pedal |
Accelerator Link ([08.1984 - ] (8408- )GX71,MX7#..LHD) |
| 78180-22450 |
Wire Assy, Accelerator |
Accelerator Link ([08.1984 - ] (8408- )GX71,MX7#..LHD) |
| 78180-2A320 |
Cable Assy, Accelerator Control |
Accelerator Link ([08.1984 - ] (8408- )GX71,MX7#..LHD) |
| 78184-30070 |
Bracket Sub-Assy, Accelerator Control Cable |
Accelerator Link ([08.1984 - ] (8408- )GX71,MX7#..LHD) |
| 90249-05001 |
Pin (For Accelerator Pedal) |
Accelerator Link ([08.1984 - ] (8408- )GX71,MX7#..LHD) |
| 90386-08050 |
Bush (For Accelerator Pedal Rod) |
Accelerator Link ([08.1984 - ] (8408- )GX71,MX7#..LHD) |
| 90386-08164 |
Bush (For Accelerator Pedal Rod) |
Accelerator Link ([08.1984 - ] (8408- )GX71,MX7#..LHD) |
| 90464-00184 |
Clamp, Vacuum Tube |
Accelerator Link ([08.1984 - ] (8408- )GX71,MX7#..LHD) |
| 90508-18060 |
Spring (For Accelerator Pedal Rod) |
Accelerator Link ([08.1984 - ] (8408- )GX71,MX7#..LHD) |
| 90508-23088 |
Spring (For Accelerator Pedal) |
Accelerator Link ([08.1984 - ] (8408- )GX71,MX7#..LHD) |
| 91611-40812 |
Bolt(for Drive Plate & Torque Converter Setting) |
Accelerator Link ([08.1984 - ] (8408- )GX71,MX7#..LHD) |
| 91611-B0812 |
Bolt |
Accelerator Link ([08.1984 - ] (8408- )GX71,MX7#..LHD) |
| 91651-40614 |
Bolt |
Accelerator Link ([08.1984 - ] (8408- )GX71,MX7#..LHD) |
| 91651-40620 |
BOLT |
Accelerator Link ([08.1984 - ] (8408- )GX71,MX7#..LHD) |
| 91651-40630 |
BOLT |
Accelerator Link ([08.1984 - ] (8408- )GX71,MX7#..LHD) |
| 96160-00400 |
Ring, E(For Release Arm) |
Accelerator Link ([08.1984 - ] (8408- )GX71,MX7#..LHD) |
| 96160-00600 |
Ring, E(For Clutch Pedal Pawl) |
Accelerator Link ([08.1984 - ] (8408- )GX71,MX7#..LHD) |
