MX61

Toyota CHASER · 1981 · 5,993 parts · 217 categories

5,993 items

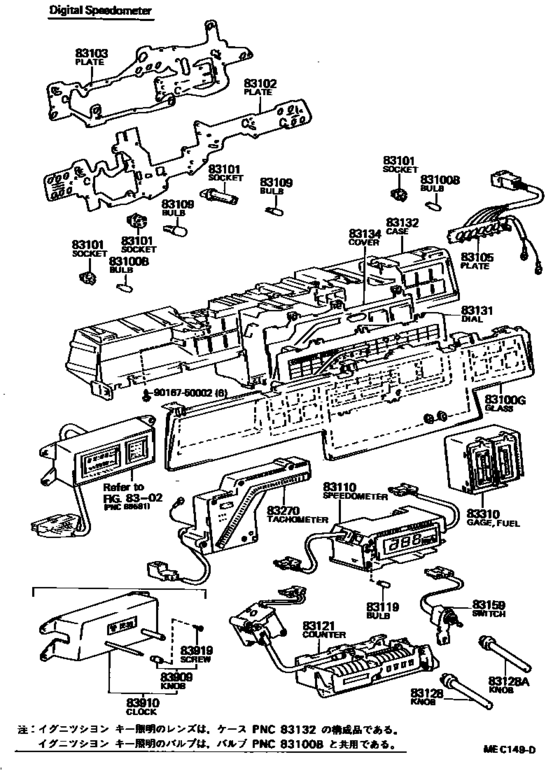

Meter ([08.1982 - ] (8208- )HT..AVT) 54

#	OEM	Part name
83100	90981-11018	Bulb, Position Indicator Lamp
83100	99132-12034	Bulb, Position Indicator Lamp
83100	00234-00158	Bulb, Position Indicator Lamp
83100	83133-22270	Glass, Combination Meter
83100	83138-22230	Glass, Combination Meter
83100	83138-22250	Glass, Combination Meter
83100	83138-22330	Glass, Combination Meter
83101	83101-12020	Socket Sub-Assy, Combination Meter Bulb
83101	83101-14030	Socket Sub-Assy, Combination Meter Bulb
83101	83101-14040	Socket, Indicator Lamp
83101	83101-14050	Socket Sub-Assy, Combination Meter Bulb
83101	83101-32010	Socket Sub-Assy, Combination Meter Bulb
83102	83247-22390	Plate Sub-Assy, Combination Meter Circuit, No.1
83102	83247-22510	Plate Sub-Assy, Combination Meter Circuit, No.1
83102	83247-22550	Plate Sub-Assy, Combination Meter Circuit, No.1
83103	83247-22570	Plate Sub-Assy, Combination Meter Circuit, No.2
83105	83247-22590	Plate Sub-Assy, Combination Meter Circuit, No.4
83109	83109-14010	Bulb, Combination Meter, No.2
83109	83109-30010	Bulb, Combination Meter, No.2
83109	83109-24030	Bulb, Combination Meter, No.1
83109	83109-24040	Bulb, Combination Meter, No.1
83110	83110-22600	Speedometer Assy
83110	83110-22750	Speedometer Assy
83110	83110-2A090	Speedometer Assy
83119	83119-24010	Bulb, Combination Meter, No.1
83121	83121-22070	Counter, Total
83128	83128-10260	Knob, Trip Counter
83128	83128-32030	Knob, Trip Counter
83128	83128-32050	Knob, Meter
83131	83131-22330	Dial, Meter, No.1
83132	83132-22090	Case, Combination Meter
83132	83132-22210	Case, Combination Meter
83132	83132-22190	Case, Combination Meter
83132	83132-22230	Case, Combination Meter
83134	83133-22090	Cover, Combination Meter, No.1
83134	83133-22230	Cover, Combination Meter, No.1
83134	83133-22250	Cover, Combination Meter, No.1
83134	83133-22310	Cover, Combination Meter, No.1
83159	83159-22010	Switch, Meter, No.1
83270	83242-22230	Tachometer Assy, Engine
83270	83242-22350	Tachometer Assy, Engine
83270	83242-22390	Tachometer Assy, Engine
83270	83270-22100	Tachometer Assy, Engine
83310	83243-22270	Gage Assy, Fuel Receiver
83310	83243-22310	Gage Assy, Fuel Receiver
83310	83310-22050	Gage Assy, Fuel Receiver
83310	83310-22051	Gage Assy, Fuel Receiver
83909	83909-22180	Knob, Clock
83910	83910-22200	Clock Assy
83910	83910-22201	Clock Assy
83910	83910-22250	Clock Assy
83919	83919-12230	Screw, Clock
9016750002	90167-50002	Direct
9016750002	93568-55014	Screw

OEM	Part name	Category
00234-00158	Bulb, Position Indicator Lamp	Meter ([08.1982 - ] (8208- )HT..AVT)
83101-12020	Socket Sub-Assy, Combination Meter Bulb	Meter ([08.1982 - ] (8208- )HT..AVT)
83101-14030	Socket Sub-Assy, Combination Meter Bulb	Meter ([08.1982 - ] (8208- )HT..AVT)
83101-14040	Socket, Indicator Lamp	Meter ([08.1982 - ] (8208- )HT..AVT)
83101-14050	Socket Sub-Assy, Combination Meter Bulb	Meter ([08.1982 - ] (8208- )HT..AVT)
83101-32010	Socket Sub-Assy, Combination Meter Bulb	Meter ([08.1982 - ] (8208- )HT..AVT)
83109-14010	Bulb, Combination Meter, No.2	Meter ([08.1982 - ] (8208- )HT..AVT)
83109-24030	Bulb, Combination Meter, No.1	Meter ([08.1982 - ] (8208- )HT..AVT)
83109-24040	Bulb, Combination Meter, No.1	Meter ([08.1982 - ] (8208- )HT..AVT)
83109-30010	Bulb, Combination Meter, No.2	Meter ([08.1982 - ] (8208- )HT..AVT)
83110-22600	Speedometer Assy	Meter ([08.1982 - ] (8208- )HT..AVT)
83110-22750	Speedometer Assy	Meter ([08.1982 - ] (8208- )HT..AVT)
83110-2A090	Speedometer Assy	Meter ([08.1982 - ] (8208- )HT..AVT)
83119-24010	Bulb, Combination Meter, No.1	Meter ([08.1982 - ] (8208- )HT..AVT)
83121-22070	Counter, Total	Meter ([08.1982 - ] (8208- )HT..AVT)
83128-10260	Knob, Trip Counter	Meter ([08.1982 - ] (8208- )HT..AVT)
83128-32030	Knob, Trip Counter	Meter ([08.1982 - ] (8208- )HT..AVT)
83128-32050	Knob, Meter	Meter ([08.1982 - ] (8208- )HT..AVT)
83131-22330	Dial, Meter, No.1	Meter ([08.1982 - ] (8208- )HT..AVT)
83132-22090	Case, Combination Meter	Meter ([08.1982 - ] (8208- )HT..AVT)
83132-22190	Case, Combination Meter	Meter ([08.1982 - ] (8208- )HT..AVT)
83132-22210	Case, Combination Meter	Meter ([08.1982 - ] (8208- )HT..AVT)
83132-22230	Case, Combination Meter	Meter ([08.1982 - ] (8208- )HT..AVT)
83133-22090	Cover, Combination Meter, No.1	Meter ([08.1982 - ] (8208- )HT..AVT)
83133-22230	Cover, Combination Meter, No.1	Meter ([08.1982 - ] (8208- )HT..AVT)
83133-22250	Cover, Combination Meter, No.1	Meter ([08.1982 - ] (8208- )HT..AVT)
83133-22270	Glass, Combination Meter	Meter ([08.1982 - ] (8208- )HT..AVT)
83133-22310	Cover, Combination Meter, No.1	Meter ([08.1982 - ] (8208- )HT..AVT)
83138-22230	Glass, Combination Meter	Meter ([08.1982 - ] (8208- )HT..AVT)
83138-22250	Glass, Combination Meter	Meter ([08.1982 - ] (8208- )HT..AVT)
83138-22330	Glass, Combination Meter	Meter ([08.1982 - ] (8208- )HT..AVT)
83159-22010	Switch, Meter, No.1	Meter ([08.1982 - ] (8208- )HT..AVT)
83242-22230	Tachometer Assy, Engine	Meter ([08.1982 - ] (8208- )HT..AVT)
83242-22350	Tachometer Assy, Engine	Meter ([08.1982 - ] (8208- )HT..AVT)
83242-22390	Tachometer Assy, Engine	Meter ([08.1982 - ] (8208- )HT..AVT)
83243-22270	Gage Assy, Fuel Receiver	Meter ([08.1982 - ] (8208- )HT..AVT)
83243-22310	Gage Assy, Fuel Receiver	Meter ([08.1982 - ] (8208- )HT..AVT)
83247-22390	Plate Sub-Assy, Combination Meter Circuit, No.1	Meter ([08.1982 - ] (8208- )HT..AVT)
83247-22510	Plate Sub-Assy, Combination Meter Circuit, No.1	Meter ([08.1982 - ] (8208- )HT..AVT)
83247-22550	Plate Sub-Assy, Combination Meter Circuit, No.1	Meter ([08.1982 - ] (8208- )HT..AVT)
83247-22570	Plate Sub-Assy, Combination Meter Circuit, No.2	Meter ([08.1982 - ] (8208- )HT..AVT)
83247-22590	Plate Sub-Assy, Combination Meter Circuit, No.4	Meter ([08.1982 - ] (8208- )HT..AVT)
83270-22100	Tachometer Assy, Engine	Meter ([08.1982 - ] (8208- )HT..AVT)
83310-22050	Gage Assy, Fuel Receiver	Meter ([08.1982 - ] (8208- )HT..AVT)
83310-22051	Gage Assy, Fuel Receiver	Meter ([08.1982 - ] (8208- )HT..AVT)
83909-22180	Knob, Clock	Meter ([08.1982 - ] (8208- )HT..AVT)
83910-22200	Clock Assy	Meter ([08.1982 - ] (8208- )HT..AVT)
83910-22201	Clock Assy	Meter ([08.1982 - ] (8208- )HT..AVT)
83910-22250	Clock Assy	Meter ([08.1982 - ] (8208- )HT..AVT)
83919-12230	Screw, Clock	Meter ([08.1982 - ] (8208- )HT..AVT)
90167-50002	Direct	Meter ([08.1982 - ] (8208- )HT..AVT)
90981-11018	Bulb, Position Indicator Lamp	Meter ([08.1982 - ] (8208- )HT..AVT)
93568-55014	Screw	Meter ([08.1982 - ] (8208- )HT..AVT)
99132-12034	Bulb, Position Indicator Lamp	Meter ([08.1982 - ] (8208- )HT..AVT)
