Search › Model › MX61

MX61

Toyota CHASER · 1981 · 5,993 parts · 217 categories

5,993 items

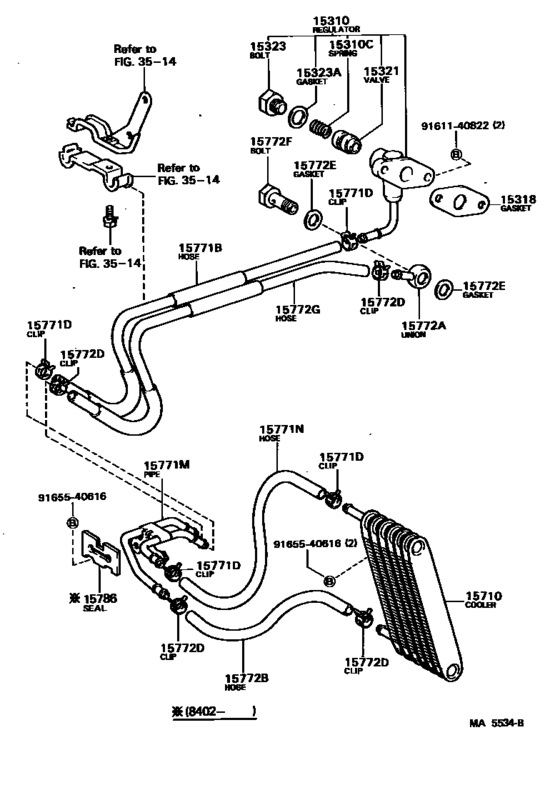

Engine Oil Cooler ([10.1981 - ] (8110- )MTEU) 23

#	OEM	Part name
15310	15310-45012	Regulator Assy, Oil Pressure
15310	15132-21010	Spring, Oil Cooler Relief Valve
15318	15318-45011	Gasket, Oil Hole Cover Plate
15318	15318-42011	Gasket, Oil Hole Cover Plate
15321	15131-22010	Valve, Oil Pump Relief
15323	15133-20010	Plug, Oil Pump Relief Valve
15323	15134-20010	Gasket, Oil Pump Relief Valve
15710	15710-41040	Cooler Assy, Oil
15771	15777-41040	Hose, Oil, No.1(For Oil Pipe)
15771	90467-16004	Clamp, Oil Cooler Hose
15771	96133-41500	Clamp Or Clip(For Air Hose, No.5)
15771	15707-41060	Pipe, Oil
15771	15778-41050	Hose, Oil, No.2(For Oil Pipe)
15772	90405-10153	Union(For Oil Pipe)
15772	15779-41050	Hose, Oil, No.1(For Oil Pipe)
15772	90430-14235	Gasket, W/head Taper Screw Plug
15772	90401-14091	Bolt, Union(For Turbo Oil Inlet Pipe)
15772	15776-41040	Hose, Oil, No.2 (For Oil Pipe)
15786	15786-41010	Seal, Oil Pipe
9161140822	91611-40822	Bolt(For Intake Manifold To Exhaust Manifold)
9161140822	91611-60822	Bolt
9165540616	91655-40616	Bolt
9165540616	91651-60614	Bolt

OEM	Part name	Category
15131-22010	Valve, Oil Pump Relief	Engine Oil Cooler ([10.1981 - ] (8110- )MTEU)
15132-21010	Spring, Oil Cooler Relief Valve	Engine Oil Cooler ([10.1981 - ] (8110- )MTEU)
15133-20010	Plug, Oil Pump Relief Valve	Engine Oil Cooler ([10.1981 - ] (8110- )MTEU)
15134-20010	Gasket, Oil Pump Relief Valve	Engine Oil Cooler ([10.1981 - ] (8110- )MTEU)
15310-45012	Regulator Assy, Oil Pressure	Engine Oil Cooler ([10.1981 - ] (8110- )MTEU)
15318-42011	Gasket, Oil Hole Cover Plate	Engine Oil Cooler ([10.1981 - ] (8110- )MTEU)
15318-45011	Gasket, Oil Hole Cover Plate	Engine Oil Cooler ([10.1981 - ] (8110- )MTEU)
15707-41060	Pipe, Oil	Engine Oil Cooler ([10.1981 - ] (8110- )MTEU)
15710-41040	Cooler Assy, Oil	Engine Oil Cooler ([10.1981 - ] (8110- )MTEU)
15776-41040	Hose, Oil, No.2 (For Oil Pipe)	Engine Oil Cooler ([10.1981 - ] (8110- )MTEU)
15777-41040	Hose, Oil, No.1(For Oil Pipe)	Engine Oil Cooler ([10.1981 - ] (8110- )MTEU)
15778-41050	Hose, Oil, No.2(For Oil Pipe)	Engine Oil Cooler ([10.1981 - ] (8110- )MTEU)
15779-41050	Hose, Oil, No.1(For Oil Pipe)	Engine Oil Cooler ([10.1981 - ] (8110- )MTEU)
15786-41010	Seal, Oil Pipe	Engine Oil Cooler ([10.1981 - ] (8110- )MTEU)
90401-14091	Bolt, Union(For Turbo Oil Inlet Pipe)	Engine Oil Cooler ([10.1981 - ] (8110- )MTEU)
90405-10153	Union(For Oil Pipe)	Engine Oil Cooler ([10.1981 - ] (8110- )MTEU)
90430-14235	Gasket, W/head Taper Screw Plug	Engine Oil Cooler ([10.1981 - ] (8110- )MTEU)
90467-16004	Clamp, Oil Cooler Hose	Engine Oil Cooler ([10.1981 - ] (8110- )MTEU)
91611-40822	Bolt(For Intake Manifold To Exhaust Manifold)	Engine Oil Cooler ([10.1981 - ] (8110- )MTEU)
91611-60822	Bolt	Engine Oil Cooler ([10.1981 - ] (8110- )MTEU)
91651-60614	Bolt	Engine Oil Cooler ([10.1981 - ] (8110- )MTEU)
91655-40616	Bolt	Engine Oil Cooler ([10.1981 - ] (8110- )MTEU)
96133-41500	Clamp Or Clip(For Air Hose, No.5)	Engine Oil Cooler ([10.1981 - ] (8110- )MTEU)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 217
Collected: 2026-08-02
