Search › Model › MX36
MX36

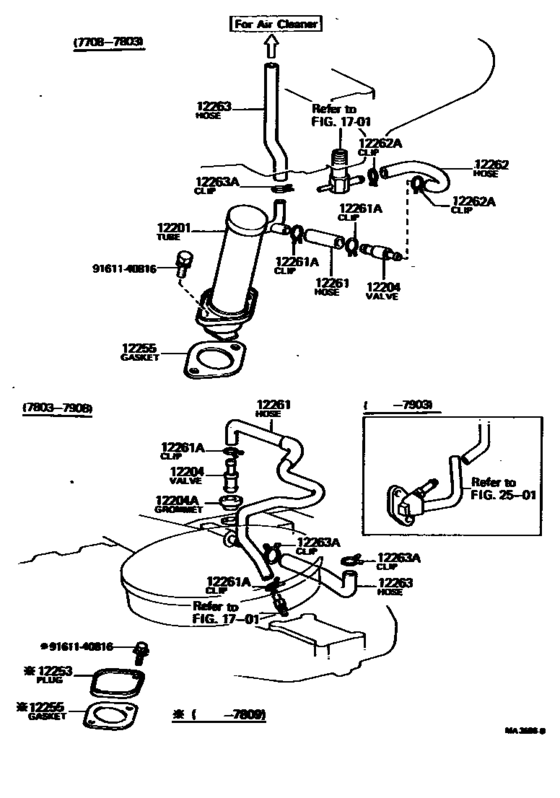

Ventilation Hose ([08.1977 - 08.1979] (7708-7908)) 9
| # | OEM | Part name |
|---|---|---|
| 12201 | 12201-45010 | Tube Sub-Assy, Ventilation |
| 12204 | 12204-31020 | Valve Sub-Assy, Ventilation |
| 12261 | 90445-20004 | Hose, Ventilation |
| 12261 | 90467-19122 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12261-45010 | Hose, Ventilation, No.2 |
| 12262 | 90467-16035 | Clip Or Clamp(For Ventilation Hose) |
| 12263 | 90910-05104 | Hose, Ventilation, No.3 |
| 9161140816 | 91611-40816 | Screw Or Bolt(For Valve Rocker Shaft Lock) |
| 9161140816 | 91611-B0816 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 12201-45010 | Tube Sub-Assy, Ventilation | Ventilation Hose ([08.1977 - 08.1979] (7708-7908)) |
| 12204-31020 | Valve Sub-Assy, Ventilation | Ventilation Hose ([08.1977 - 08.1979] (7708-7908)) |
| 12261-45010 | Hose, Ventilation, No.2 | Ventilation Hose ([08.1977 - 08.1979] (7708-7908)) |
| 90445-20004 | Hose, Ventilation | Ventilation Hose ([08.1977 - 08.1979] (7708-7908)) |
| 90467-16035 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([08.1977 - 08.1979] (7708-7908)) |
| 90467-19122 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([08.1977 - 08.1979] (7708-7908)) |
| 90910-05104 | Hose, Ventilation, No.3 | Ventilation Hose ([08.1977 - 08.1979] (7708-7908)) |
| 91611-40816 | Screw Or Bolt(For Valve Rocker Shaft Lock) | Ventilation Hose ([08.1977 - 08.1979] (7708-7908)) |
| 91611-B0816 | Bolt | Ventilation Hose ([08.1977 - 08.1979] (7708-7908)) |
