Search › Model › MX36
MX36

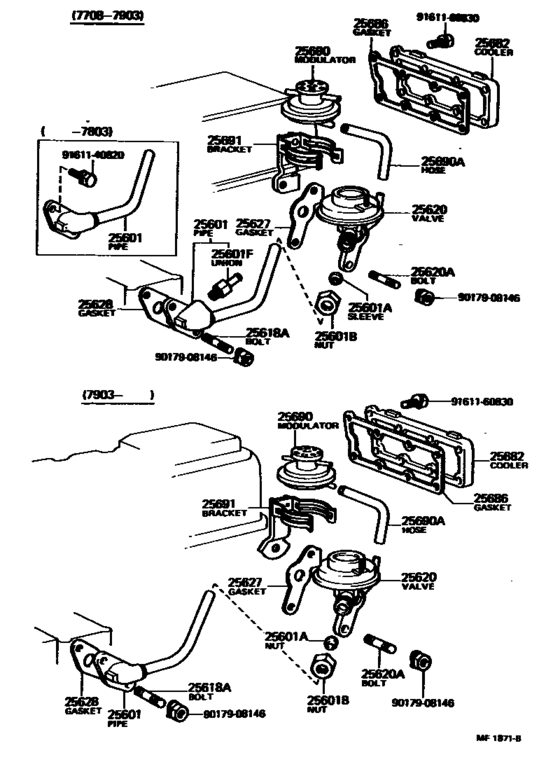

Exhaust Gas Recirculation System ([08.1977 - 08.1979] (7708-7908)) 8
| # | OEM | Part name |
|---|---|---|
| 25601 | 25601-41010 | Pipe Sub-Assy, Egr, No.1 |
| 25620 | 25620-45090 | Valve Assy, Egr |
| 25690 | 25690-45010 | Modulator Assy, Egr Vacuum |
| 25690 | 25690-41020 | Modulator Assy, Egr Vacuum |
| 9017908146 | 90179-08146 | Nut |
| 9017908146 | 90179-08204 | Nut |
| 9161140820 | 91611-40820 | Bolt(For Intake Manifold To Exhaust Manifold) |
| 9161160830 | 91611-60830 | Bolt(For Clutch Release Cylinder Setting) |
| OEM | Part name | Category |
|---|---|---|
| 25601-41010 | Pipe Sub-Assy, Egr, No.1 | Exhaust Gas Recirculation System ([08.1977 - 08.1979] (7708-7908)) |
| 25620-45090 | Valve Assy, Egr | Exhaust Gas Recirculation System ([08.1977 - 08.1979] (7708-7908)) |
| 25690-41020 | Modulator Assy, Egr Vacuum | Exhaust Gas Recirculation System ([08.1977 - 08.1979] (7708-7908)) |
| 25690-45010 | Modulator Assy, Egr Vacuum | Exhaust Gas Recirculation System ([08.1977 - 08.1979] (7708-7908)) |
| 90179-08146 | Nut | Exhaust Gas Recirculation System ([08.1977 - 08.1979] (7708-7908)) |
| 90179-08204 | Nut | Exhaust Gas Recirculation System ([08.1977 - 08.1979] (7708-7908)) |
| 91611-40820 | Bolt(For Intake Manifold To Exhaust Manifold) | Exhaust Gas Recirculation System ([08.1977 - 08.1979] (7708-7908)) |
| 91611-60830 | Bolt(For Clutch Release Cylinder Setting) | Exhaust Gas Recirculation System ([08.1977 - 08.1979] (7708-7908)) |
