MX36

Toyota CRESSIDA-CRESSIDA-WAGON · 1976 · 2,476 parts · 184 categories

2,476 items

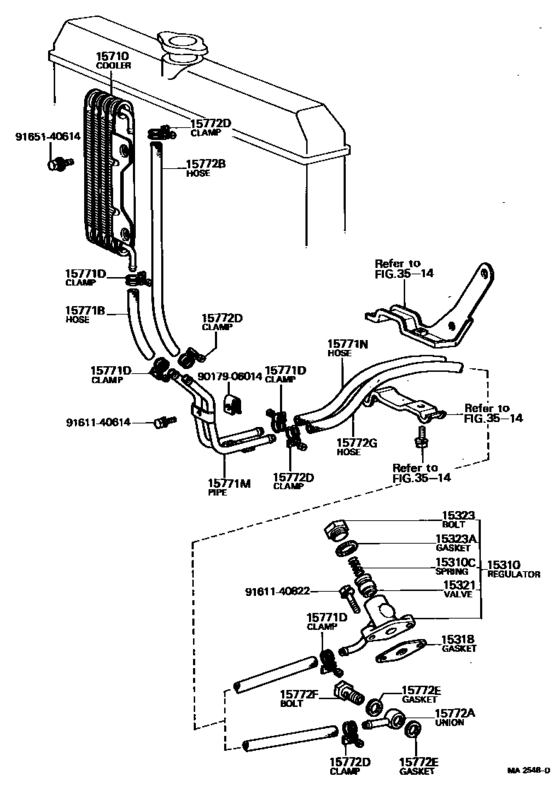

Engine Oil Cooler ([08.1977 - 08.1978] (7708-7808)) 24

#	OEM	Part name
15310	15310-45012	Regulator Assy, Oil Pressure
15310	15132-21010	Spring, Oil Cooler Relief Valve
15318	15318-45011	Gasket, Oil Hole Cover Plate
15318	15318-42011	Gasket, Oil Hole Cover Plate
15321	15131-22010	Valve, Oil Pump Relief
15323	15133-20010	Plug, Oil Pump Relief Valve
15323	15134-20010	Gasket, Oil Pump Relief Valve
15710	15710-45030	Cooler Assy, Oil
15771	15776-45010	Hose, Oil, No.1(For Oil Pipe)
15771	96111-10180	Clamp, Oil Cooler Hose
15771	96112-10180	Clamp(For Oil Pipe)
15771	15707-45010	Pipe, Oil
15771	15778-45030	Hose, Oil, No.2(For Oil Pipe)
15772	90405-10153	Union(For Oil Pipe)
15772	15779-45010	Hose, Oil, No.1(For Oil Pipe)
15772	90430-14235	Gasket, W/head Taper Screw Plug
15772	90401-14091	Bolt, Union(For Turbo Oil Inlet Pipe)
15772	15777-45030	Hose, Oil, No.2 (For Oil Pipe)
9017906014	90179-06014	CLIP
9161140614	91611-40614	Bolt, Hexagon(For Steering Column Bracket)
9161140614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9161140822	91611-40822	Bolt(For Intake Manifold To Exhaust Manifold)
9161140822	91611-60822	Bolt
9165140614	91651-40614	Bolt

OEM	Part name	Category
15131-22010	Valve, Oil Pump Relief	Engine Oil Cooler ([08.1977 - 08.1978] (7708-7808))
15132-21010	Spring, Oil Cooler Relief Valve	Engine Oil Cooler ([08.1977 - 08.1978] (7708-7808))
15133-20010	Plug, Oil Pump Relief Valve	Engine Oil Cooler ([08.1977 - 08.1978] (7708-7808))
15134-20010	Gasket, Oil Pump Relief Valve	Engine Oil Cooler ([08.1977 - 08.1978] (7708-7808))
15310-45012	Regulator Assy, Oil Pressure	Engine Oil Cooler ([08.1977 - 08.1978] (7708-7808))
15318-42011	Gasket, Oil Hole Cover Plate	Engine Oil Cooler ([08.1977 - 08.1978] (7708-7808))
15318-45011	Gasket, Oil Hole Cover Plate	Engine Oil Cooler ([08.1977 - 08.1978] (7708-7808))
15707-45010	Pipe, Oil	Engine Oil Cooler ([08.1977 - 08.1978] (7708-7808))
15710-45030	Cooler Assy, Oil	Engine Oil Cooler ([08.1977 - 08.1978] (7708-7808))
15776-45010	Hose, Oil, No.1(For Oil Pipe)	Engine Oil Cooler ([08.1977 - 08.1978] (7708-7808))
15777-45030	Hose, Oil, No.2 (For Oil Pipe)	Engine Oil Cooler ([08.1977 - 08.1978] (7708-7808))
15778-45030	Hose, Oil, No.2(For Oil Pipe)	Engine Oil Cooler ([08.1977 - 08.1978] (7708-7808))
15779-45010	Hose, Oil, No.1(For Oil Pipe)	Engine Oil Cooler ([08.1977 - 08.1978] (7708-7808))
90179-06014	CLIP	Engine Oil Cooler ([08.1977 - 08.1978] (7708-7808))
90401-14091	Bolt, Union(For Turbo Oil Inlet Pipe)	Engine Oil Cooler ([08.1977 - 08.1978] (7708-7808))
90405-10153	Union(For Oil Pipe)	Engine Oil Cooler ([08.1977 - 08.1978] (7708-7808))
90430-14235	Gasket, W/head Taper Screw Plug	Engine Oil Cooler ([08.1977 - 08.1978] (7708-7808))
91611-40614	Bolt, Hexagon(For Steering Column Bracket)	Engine Oil Cooler ([08.1977 - 08.1978] (7708-7808))
91611-40822	Bolt(For Intake Manifold To Exhaust Manifold)	Engine Oil Cooler ([08.1977 - 08.1978] (7708-7808))
91611-60822	Bolt	Engine Oil Cooler ([08.1977 - 08.1978] (7708-7808))
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Engine Oil Cooler ([08.1977 - 08.1978] (7708-7808))
91651-40614	Bolt	Engine Oil Cooler ([08.1977 - 08.1978] (7708-7808))
96111-10180	Clamp, Oil Cooler Hose	Engine Oil Cooler ([08.1977 - 08.1978] (7708-7808))
96112-10180	Clamp(For Oil Pipe)	Engine Oil Cooler ([08.1977 - 08.1978] (7708-7808))
