Search › Model › MX32
MX32

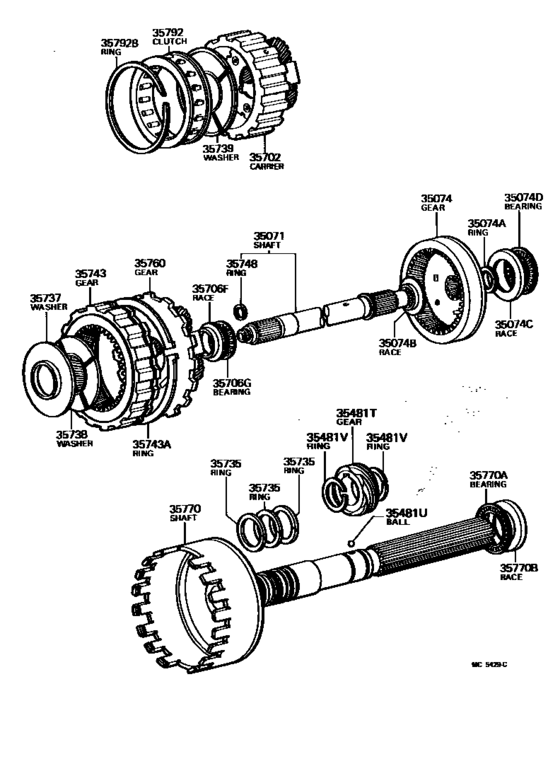

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1977 - 08.1980] (7708-8008)) 6
| # | OEM | Part name |
|---|---|---|
| 35071 | 35708-30020 | Shaft Sub-Assy, Planetary Intermediate |
| 35071 | 35708-30021 | Shaft Sub-Assy, Planetary Intermediate |
| 35760 | 35760-30020 | Gear Assy, Rear Planetary |
| 35770 | 35770-30021 | Shaft Assy, Output |
| 35770 | 35770-14020 | Shaft Assy, Output |
| 35770 | 35770-30022 | Shaft Assy, Output |
| OEM | Part name | Category |
|---|---|---|
| 35708-30020 | Shaft Sub-Assy, Planetary Intermediate | Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1977 - 08.1980] (7708-8008)) |
| 35708-30021 | Shaft Sub-Assy, Planetary Intermediate | Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1977 - 08.1980] (7708-8008)) |
| 35760-30020 | Gear Assy, Rear Planetary | Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1977 - 08.1980] (7708-8008)) |
| 35770-14020 | Shaft Assy, Output | Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1977 - 08.1980] (7708-8008)) |
| 35770-30021 | Shaft Assy, Output | Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1977 - 08.1980] (7708-8008)) |
| 35770-30022 | Shaft Assy, Output | Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1977 - 08.1980] (7708-8008)) |
