MX32

Toyota CRESSIDA-CRESSIDA-WAGON · 1976 · 1,556 parts · 153 categories
MX32 ×

← Back to categories

1,556 items

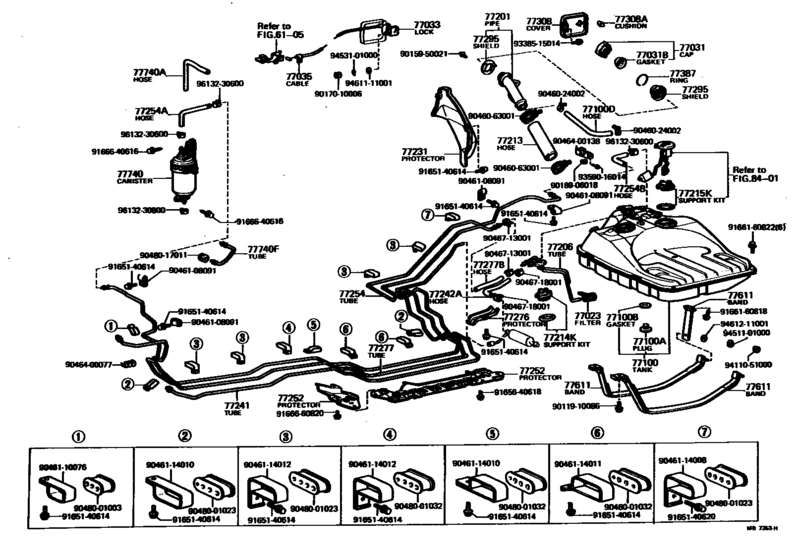

Fuel Tank & Tube ([08.1979 - 08.1980] (7908-8008)MX32) 67
#OEMPart name
77023 77023-30010 Filter Sub-Assy, Fuel Suction Tube
77031 77310-12090 Cap Assy, Fuel Tank
77031 77310-12100 Cap Assy, Fuel Tank
77100 77001-22142 Tank Assy, Fuel
77100 77100-22350 Tank Assy, Fuel
77100 77100-22410 Tank Assy, Fuel
77201 77201-22082 Pipe Sub-Assy, Fuel Tank Inlet
77206 77017-22021 Tube Sub-Assy, Fuel Tank Suction
77231 77277-22011 Protector, Inlet Tube
77241 77251-22181 Tube, Fuel Main, No.1
77242 77259-22030 Hose, Fuel, No.2 (For Main Tube, No.1)
77254 77261-22032 Tube, Fuel Emission, No.1
77254 95332-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77254 95337-06020 Hose, Differential Pressure Control
77276 77276-22010 Protector, Fuel Hose
77277 77255-22081 Tube, Fuel Return, No.1
77277 95332-08020 Hose, Fuel Pipe, No.1
77277 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77295 77291-22011 Shield, Fuel Filler Pipe
77295 77292-22011 Shield, Fuel Filler Pipe
77387 77391-14010 Ring, Fuel Inlet Box
77740 77740-22160 Canister Assy, Charcoal
77740 77264-22010 Tube, Fuel, No.1(For Charcoal Canister)
9011910086 90119-10086 New Genuine Part
9011910086 91665-61045 BOLT
9015950021 90159-50021 New Genuine Part
9017010006 90170-10006 New Genuine Part
9018906018 90189-06018 GROMMET
9046024002 90460-24002 New Genuine Part
9046024002 96112-20240 New Genuine Part
9046063001 90460-63001 New Genuine Part
9046108091 90461-08091 New Genuine Part
9046110076 90461-10076 New Genuine Part
9046114008 90461-14008 New Genuine Part
9046114010 90461-14010 New Genuine Part
9046114011 90461-14011 New Genuine Part
9046114012 90461-14012 New Genuine Part
9046400077 90464-00077 New Genuine Part
9046400138 90464-00138 New Genuine Part
9046713001 90467-13001 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046713001 96135-51300 Clamp, Hose
9046718001 90467-18001 Clip(For Ventilation Hose No.2)
9048001003 90480-01003 New Genuine Part
9048001023 90480-01023 New Genuine Part
9048001032 90480-01032 New Genuine Part
9048017011 90480-17011 Support, Radiator, Lower
9165140614 91651-40614 Bolt
9165140620 91651-40620 BOLT
9165640618 91656-40618 Bolt (For Rear Differential Breather Plug Oil Deflector)
9165640618 91651-60614 Bolt
9166160818 91661-60818 New Genuine Part
9166160822 91661-60822 New Genuine Part
9166640616 91666-40616 New Genuine Part
9166640616 91661-60616 BOLT
9166660820 91666-60820 New Genuine Part
9166660820 91661-60816 Bolt
9338515014 93385-15014 Screw(For Steering Tilt Lever)
9359016014 93590-16014 New Genuine Part
9411051000 94110-51000 Nut(For Steering Center Arm)
9451101000 94511-01000 Washer(For Rear Drive Shaft)
9453101000 94531-01000 WASHER
9461111001 94611-11001 Plate, Rear Seat Back Stopper
9461211001 94612-11001 Washer, Plate (For Center Support Bearing Housing)
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
9613230800 96132-30800 Clip, No.3(For Idle-Up Hose)
9613230800 96132-51300 Clip(For Ventilation Hose No.2)
