Search › Model › MX32
MX32

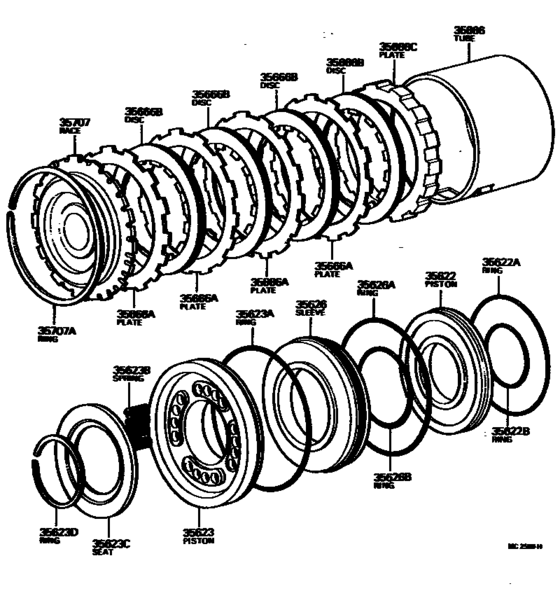

Brake No.3, 1St & Reverse Brake (Atm) ([08.1977 - 08.1980] (7708-8008)) 7
| # | OEM | Part name |
|---|---|---|
| 35626 | 35626-30010 | Sleeve, Brake Reaction |
| 35626 | 35626-22010 | Sleeve, Brake Reaction |
| 35666 | 35666-30010 | Tube, Brake Apply |
| 35666 | 35633-22030 | Disc, Clutch (For Brake) |
| 35666 | 35633-30060 | Disc, Clutch (For Brake) |
| 35666 | 35633-30020 | Disc, Clutch (For Brake) |
| 35707 | 35707-30020 | Race Sub-Assy, 1 Way Clutch, Inner |
| OEM | Part name | Category |
|---|---|---|
| 35626-22010 | Sleeve, Brake Reaction | Brake No.3, 1St & Reverse Brake (Atm) ([08.1977 - 08.1980] (7708-8008)) |
| 35626-30010 | Sleeve, Brake Reaction | Brake No.3, 1St & Reverse Brake (Atm) ([08.1977 - 08.1980] (7708-8008)) |
| 35633-22030 | Disc, Clutch (For Brake) | Brake No.3, 1St & Reverse Brake (Atm) ([08.1977 - 08.1980] (7708-8008)) |
| 35633-30020 | Disc, Clutch (For Brake) | Brake No.3, 1St & Reverse Brake (Atm) ([08.1977 - 08.1980] (7708-8008)) |
| 35633-30060 | Disc, Clutch (For Brake) | Brake No.3, 1St & Reverse Brake (Atm) ([08.1977 - 08.1980] (7708-8008)) |
| 35666-30010 | Tube, Brake Apply | Brake No.3, 1St & Reverse Brake (Atm) ([08.1977 - 08.1980] (7708-8008)) |
| 35707-30020 | Race Sub-Assy, 1 Way Clutch, Inner | Brake No.3, 1St & Reverse Brake (Atm) ([08.1977 - 08.1980] (7708-8008)) |
