Search › Model › MS88

MS88

Toyota CROWN-MAJESTA · 1975 · 5,060 parts · 177 categories

5,060 items

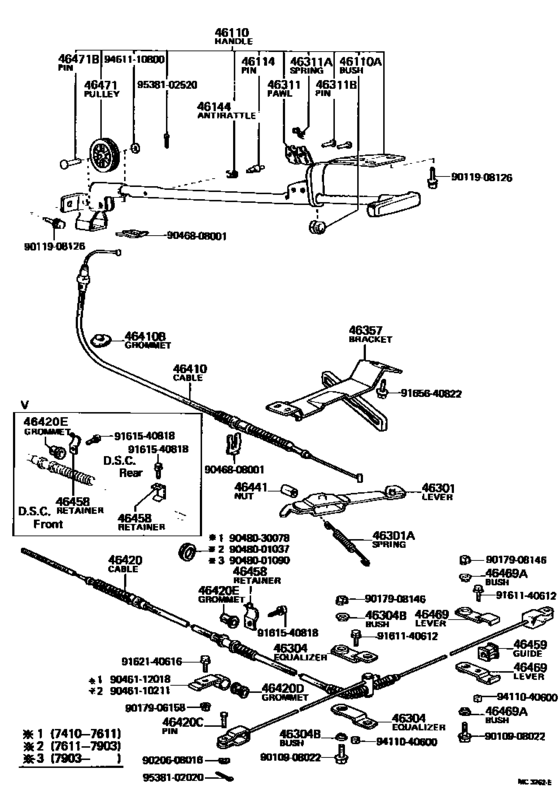

Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY) 51

#	OEM	Part name
46110	46104-30060	Handle Assy, Parking Brake Control
46110	90386-11195	Bush Or Ring, O (For Parking Brake Plunger)
46114	46114-20010	Pin(For Parking Brake Handle Set)
46144	46144-30020	Anti-Rattle, Parking Brake Plunger
46301	46301-30070	Lever Sub-Assy, Parking Brake Intermediate
46301	90506-20478	Spring, Tension(For Intermediate Lever)
46304	46341-30040	Equalizer Sub-Assy, Parking Brake
46304	46341-35020	Equalizer Sub-Assy, Parking Brake
46304	90385-12029	Bush(For Parking Brake Equalizer)
46311	46311-30041	Pawl, Parking Brake
46311	90508-06349	Spring(For Parking Brake Pawl)
46311	90508-08106	Spring, Torsion(For Parking Brake Plunger)
46311	46313-40010	Pin, Parking Brake Pawl
46357	46359-30040	Bracket, Lever Support
46357	46359-30041	Bracket, Lever Support
46410	46410-30140	Cable Assy, Parking Brake, No.1
46410	90480-26043	Grommet (For Accelerator Wire)
46420	46420-31050	Cable Assy, Parking Brake, No.2
46420	90240-08028	Pin, W/hole (For Column Shift Gear Selecting Rod)
46420	90480-21518	Grommet(For Parking Brake Cable Clamp)
46420	90480-17158	Grommet(For Parking Brake Front Cable)
46441	46441-30041	Nut, Wire Adjusting, No.1
46458	46458-30020	Retainer, Cable
46458	46458-31020	Retainer, Cable
46459	46459-30010	Guide, Cable
46469	46469-30020	Lever, Cable Guide Support
46471	46471-20010	Pulley, Wire
46471	90240-08062	Pin, W/hole(For Intermediate Lever)
9010908022	90109-08022	BOLT
9011908126	90119-08126	BOLT
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9020608016	90206-08016	Washer, Wave (For Low Speed Connecting Rod)
9046110211	90461-10211	New Genuine Part
9046112018	90461-12018	New Genuine Part
9046808001	90468-08001	CLIP
9048001037	90480-01037	New Genuine Part
9048001090	90480-01090	New Genuine Part
9048030078	90480-30078	Grommet(For Body Support No.3 Bracket)
9161140612	91611-40612	Bolt(for Dust Cover To Steering Knuckle Arm Setting)
9161140612	91611-G0612	Bolt
9161540818	91615-40818	Screw Or Bolt(for Valve Rocker Shaft Lock)
9161540818	91611-B0816	Bolt
9162140616	91621-40616	Step Cover Bolt
9165640822	91656-40822	New Genuine Part
9165640822	91651-60818	BOLTWWASHER
9411040600	94110-40600	Nut, Rock
9461110800	94611-10800	Washer, Plate (For Transmission Control Cable)
9538102020	95381-02020	PIN
9538102520	95381-02520	PINCOTTER

OEM	Part name	Category
46104-30060	Handle Assy, Parking Brake Control	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
46114-20010	Pin(For Parking Brake Handle Set)	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
46144-30020	Anti-Rattle, Parking Brake Plunger	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
46301-30070	Lever Sub-Assy, Parking Brake Intermediate	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
46311-30041	Pawl, Parking Brake	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
46313-40010	Pin, Parking Brake Pawl	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
46341-30040	Equalizer Sub-Assy, Parking Brake	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
46341-35020	Equalizer Sub-Assy, Parking Brake	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
46359-30040	Bracket, Lever Support	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
46359-30041	Bracket, Lever Support	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
46410-30140	Cable Assy, Parking Brake, No.1	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
46420-31050	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
46441-30041	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
46458-30020	Retainer, Cable	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
46458-31020	Retainer, Cable	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
46459-30010	Guide, Cable	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
46469-30020	Lever, Cable Guide Support	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
46471-20010	Pulley, Wire	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
90109-08022	BOLT	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
90119-08126	BOLT	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
90179-08146	Nut	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
90179-08204	Nut	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
90206-08016	Washer, Wave (For Low Speed Connecting Rod)	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
90240-08028	Pin, W/hole (For Column Shift Gear Selecting Rod)	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
90240-08062	Pin, W/hole(For Intermediate Lever)	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
90385-12029	Bush(For Parking Brake Equalizer)	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
90386-11195	Bush Or Ring, O (For Parking Brake Plunger)	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
90461-10211	New Genuine Part	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
90461-12018	New Genuine Part	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
90468-08001	CLIP	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
90480-01037	New Genuine Part	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
90480-01090	New Genuine Part	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
90480-17158	Grommet(For Parking Brake Front Cable)	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
90480-21518	Grommet(For Parking Brake Cable Clamp)	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
90480-26043	Grommet (For Accelerator Wire)	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
90480-30078	Grommet(For Body Support No.3 Bracket)	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
90506-20478	Spring, Tension(For Intermediate Lever)	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
90508-06349	Spring(For Parking Brake Pawl)	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
90508-08106	Spring, Torsion(For Parking Brake Plunger)	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
91611-40612	Bolt(for Dust Cover To Steering Knuckle Arm Setting)	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
91611-B0816	Bolt	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
91611-G0612	Bolt	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
91615-40818	Screw Or Bolt(for Valve Rocker Shaft Lock)	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
91621-40616	Step Cover Bolt	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
91651-60818	BOLTWWASHER	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
91656-40822	New Genuine Part	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
94110-40600	Nut, Rock	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
94611-10800	Washer, Plate (For Transmission Control Cable)	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
95381-02020	PIN	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
95381-02520	PINCOTTER	Parking Brake & Cable ([11.1976 - 08.1979] (7410-7611) ; (7611-7908)BTP,DLX,SAL,STD ; (7702 -7908)LHD..ROY)
