MS88

Toyota CROWN-MAJESTA · 1975 · 5,060 parts · 177 categories

5,060 items

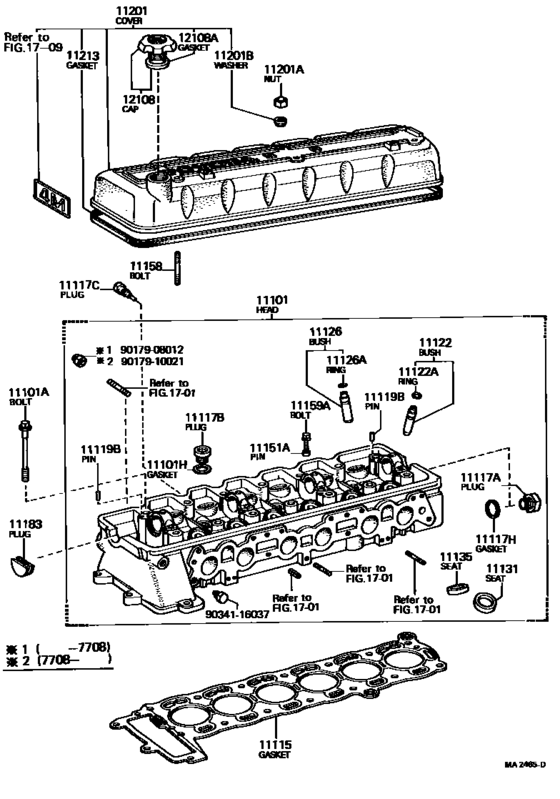

Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M) 67

#	OEM	Part name
11101	11101-49127	Head Sub-Assy, Cylinder
11101	11101-49225	Head Sub-Assy, Cylinder
11101	11101-49227	Head Sub-Assy, Cylinder
11101	11101-49226	Head Sub-Assy, Cylinder
11101	90910-02041	Bolt(For Cylinder Head Set)
11101	90910-02058	Bolt(For Cylinder Head Set)
11101	90430-33133	Gasket(For Cylinder Head Screw Plug)
11115	11115-45020	Gasket, Cylinder Head
11115	11115-45030	Gasket, Cylinder Head
11117	90341-32031	Plug, W/head Straight Screw, No.2
11117	90341-36001	Plug, W/head Taper Screw, No.1
11117	90341-32028	Plug, No.3 - W/HEAD TAPER SCREW, NO.1
11117	90341-32070	Plug, W/head Taper Screw, No.1
11117	90341-14005	Plug, W/head Taper Screw, No.3
11117	90341-14062	Plug, W/head Straight Screw, No.1
11117	90430-36001	Gasket(For Water Hole)
11119	90253-08001	Pin, Straight, No.2
11122	11122-41020	Bush, Intake Valve Guide
11122	11123-41020	Bush, Intake Valve Guide
11122	90520-12049	Ring, Shaft Snap (For Valve Guide Bush)
11126	11126-41021	Bush, Exhaust Valve Guide
11126	11126-45020	Bush, Exhaust Valve Guide
11126	11126-41040	Bush, Exhaust Valve Guide
11126	11127-41021	Bush, Exhaust Valve Guide
11126	11127-45020	Bush, Exhaust Valve Guide
11126	11127-41040	Bush, Exhaust Valve Guide
11131	11131-41021	Seat, Intake Valve
11131	11131-45010	Seat, Intake Valve
11131	11132-41010	Seat, Intake Valve
11131	11132-45010	Seat, Intake Valve
11135	11135-41021	Seat, Exhaust Valve
11135	11135-45010	Seat, Exhaust Valve
11135	11136-41010	Seat, Exhaust Valve
11135	11136-45010	Seat, Exhaust Valve
11151	90253-11021	Pin, Ring
11158	90116-06115	Bolt, Stud(For Head To Cylinder Head Cover)
11158	90116-08003	Bolt, Stud(For Head To Cylinder Head Cover)
11159	91611-40825	Bolt(For Clutch Release Cylinder Setting)
11159	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
11159	91611-60825	Bolt(For Head To Camshaft Bearing Cap)
11183	11183-41010	Plug, Semicircular
11183	11183-45010	Plug, Semicircular
11183	11183-45020	Plug, Semicircular
11201	11201-49145	Cover Sub-Assy, Cylinder Head
11201	11201-49147	Cover Sub-Assy, Cylinder Head
11201	11211-49046	Cover Sub-Assy, Cylinder Head
11201	11211-45010	Cover Sub-Assy, Cylinder Head
11201	11211-49056	Cover Sub-Assy, Cylinder Head
11201	11211-45021	Cover Sub-Assy, Cylinder Head
11201	90176-08007	Nut, Cap(For Cylinder Head Cover)
11201	90176-08015	Nut, Cap(For Cylinder Head Cover)
11201	90210-08002	Washer, Seal(For Cylinder Head Cover)
11201	90210-09002	Washer, Seal(For Cylinder Head Cover)
11201	90210-09003	Washer, Seal(For Cylinder Head Cover)
11213	11213-41010	Gasket, Cylinder Head Cover
11213	11213-41020	Gasket, Cylinder Head Cover
11213	11213-45020	Gasket, Cylinder Head Cover
12108	12108-49015	Cap Sub-Assy, Oil Filler
12108	12180-13010	Cap Sub-Assy, Oil Filler
12108	12181-12903	Cap Sub-Assy, Oil Filler
12108	12181-12904	Cap Sub-Assy, Oil Filler
12108	90301-44049	Gasket(For Oil Filler Cap)
12108	90430-37140	Gasket(For Oil Filler Cap)
9017908012	90179-08012	NUT
9017910021	90179-10021	Nut
9034116037	90341-16037	Plug, No.2
9034116037	90341-16007	Plug, No.2

OEM	Part name	Category
11101-49127	Head Sub-Assy, Cylinder	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11101-49225	Head Sub-Assy, Cylinder	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11101-49226	Head Sub-Assy, Cylinder	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11101-49227	Head Sub-Assy, Cylinder	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11115-45020	Gasket, Cylinder Head	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11115-45030	Gasket, Cylinder Head	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11122-41020	Bush, Intake Valve Guide	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11123-41020	Bush, Intake Valve Guide	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11126-41021	Bush, Exhaust Valve Guide	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11126-41040	Bush, Exhaust Valve Guide	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11126-45020	Bush, Exhaust Valve Guide	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11127-41021	Bush, Exhaust Valve Guide	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11127-41040	Bush, Exhaust Valve Guide	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11127-45020	Bush, Exhaust Valve Guide	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11131-41021	Seat, Intake Valve	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11131-45010	Seat, Intake Valve	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11132-41010	Seat, Intake Valve	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11132-45010	Seat, Intake Valve	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11135-41021	Seat, Exhaust Valve	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11135-45010	Seat, Exhaust Valve	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11136-41010	Seat, Exhaust Valve	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11136-45010	Seat, Exhaust Valve	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11183-41010	Plug, Semicircular	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11183-45010	Plug, Semicircular	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11183-45020	Plug, Semicircular	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11201-49145	Cover Sub-Assy, Cylinder Head	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11201-49147	Cover Sub-Assy, Cylinder Head	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11211-45010	Cover Sub-Assy, Cylinder Head	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11211-45021	Cover Sub-Assy, Cylinder Head	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11211-49046	Cover Sub-Assy, Cylinder Head	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11211-49056	Cover Sub-Assy, Cylinder Head	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11213-41010	Gasket, Cylinder Head Cover	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11213-41020	Gasket, Cylinder Head Cover	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
11213-45020	Gasket, Cylinder Head Cover	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
12108-49015	Cap Sub-Assy, Oil Filler	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
12180-13010	Cap Sub-Assy, Oil Filler	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
12181-12903	Cap Sub-Assy, Oil Filler	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
12181-12904	Cap Sub-Assy, Oil Filler	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
90116-06115	Bolt, Stud(For Head To Cylinder Head Cover)	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
90116-08003	Bolt, Stud(For Head To Cylinder Head Cover)	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
90176-08007	Nut, Cap(For Cylinder Head Cover)	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
90176-08015	Nut, Cap(For Cylinder Head Cover)	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
90179-08012	NUT	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
90179-10021	Nut	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
90210-08002	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
90210-09002	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
90210-09003	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
90253-08001	Pin, Straight, No.2	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
90253-11021	Pin, Ring	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
90301-44049	Gasket(For Oil Filler Cap)	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
90341-14005	Plug, W/head Taper Screw, No.3	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
90341-14062	Plug, W/head Straight Screw, No.1	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
90341-16007	Plug, No.2	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
90341-16037	Plug, No.2	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
90341-32028	Plug, No.3 - W/HEAD TAPER SCREW, NO.1	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
90341-32031	Plug, W/head Straight Screw, No.2	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
90341-32070	Plug, W/head Taper Screw, No.1	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
90341-36001	Plug, W/head Taper Screw, No.1	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
90430-33133	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
90430-36001	Gasket(For Water Hole)	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
90430-37140	Gasket(For Oil Filler Cap)	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
90520-12049	Ring, Shaft Snap (For Valve Guide Bush)	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
90910-02041	Bolt(For Cylinder Head Set)	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
90910-02058	Bolt(For Cylinder Head Set)	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
91611-40825	Bolt(For Clutch Release Cylinder Setting)	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Cylinder Head ([11.1976 - 02.1978] (7604-7611)4M..MS83,85..ARL ; (7611-7802)4M)
