Search › Model › MS85

MS85

Toyota CROWN-MAJESTA · 1974 · 5,719 parts · 186 categories

5,719 items

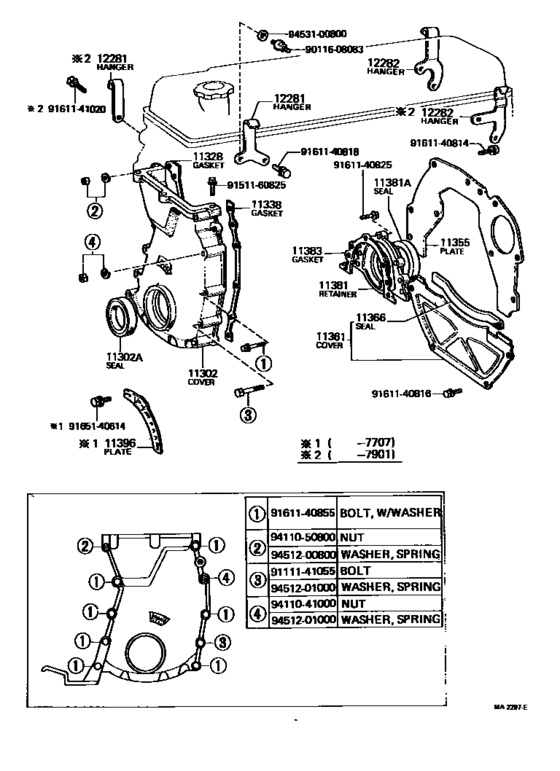

Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M) 54

#	OEM	Part name
11302	11302-41012	Cover Sub-Assy, Timing Chain Or Belt
11302	90311-45002	Seal, Oil(For Timing Chain Or Belt Cover)
11302	11321-41013	Case, Timing Gear
11302	11302-41013	Cover Sub-Assy, Timing Chain Or Belt
11302	11321-41020	Cover Sub-Assy, Timing Chain Or Belt
11302	11321-41030	Cover Sub-Assy, Timing Chain Or Belt
11302	11321-45011	Cover Sub-Assy, Timing Chain Or Belt
11302	90311-45069	Seal, Oil(For Timing Chain Or Belt Cover)
11328	11328-41010	Gasket, Timing Gear Or Chain Cover
11328	11328-43020	Gasket, Timing Gear Or Chain Cover
11338	11338-41010	Gasket, Timing Chain Cover, No.2
11338	11329-43030	Gasket, Timing Chain Cover, No.2
11355	11355-41010	Plate, Rear End
11361	11361-45010	Cover, Flywheel Housing Under
11366	11366-41010	Seal, Flywheel Housing Under Cover Dust
11366	31131-30010	Seal, Flywheel Housing Under Cover Dust
11381	11381-41010	Retainer, Engine Rear Oil Seal
11381	11381-43010	Retainer, Engine Rear Oil Seal
11381	11381-41011	Retainer, Engine Rear Oil Seal
11381	90311-80139	Seal, Engine Rear Oil
11381	90311-80001	Seal, Engine Rear Oil
11383	11383-41010	Gasket, Engine Rear Oil Seal Retainer
11396	11396-45010	Plate, Timing Mark
11396	11396-45011	Plate, Timing Mark
12281	12281-41080	Hanger, Engine, No.1
12281	12281-42010	Hanger, Engine, No.1
12281	12281-31040	Hanger, Engine, No.1
12281	12281-45020	Hanger, Engine, No.1
12281	12281-41090	Hanger, Engine, No.1
12282	12281-41020	Hanger, Engine, No.2
12282	12281-45012	Hanger, Engine, No.2
12282	12281-45030	Hanger, Engine, No.2
9011608083	90116-08083	New Genuine Part
9111141055	91111-41055	Bolt(For Clutch Release Cylinder Setting)
9151160825	91511-60825	Bolt (For Transfer Stiffener Plate)
9151160825	91511-B0825	Bolt (For Transfer Stiffener Plate)
9161140814	91611-40814	Bolt(For Manual Transmission Oil Pan Setting)
9161140814	91611-60814	Bolt
9161140816	91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816	91611-B0816	Bolt
9161140818	91611-40818	Bolt(for Oil Receiver Pipe)
9161140818	90119-08830	Bolt(For Oil Receiver Pipe)
9161140825	91611-40825	Bolt(For Clutch Release Cylinder Setting)
9161140825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9161140855	91611-40855	Bolt(For Rocker Support Set)
9161140855	91611-60855	Bolt(For Rocker Support Set)
9161141020	91611-41020	Bolt(for Transaxle & Engine Setting)
9161141020	91612-B1020	Bolt (For Transfer Case)Cover No.2
9165140614	91651-40614	Bolt
9411041000	94110-41000	Nut(For Steering Damper)
9411050800	94110-50800	Nut(For Repair Actuator Set)
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)
9453100800	94531-00800	Washer (For Transfer Shift Outer Lever)

OEM	Part name	Category
11302-41012	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
11302-41013	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
11321-41013	Case, Timing Gear	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
11321-41020	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
11321-41030	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
11321-45011	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
11328-41010	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
11328-43020	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
11329-43030	Gasket, Timing Chain Cover, No.2	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
11338-41010	Gasket, Timing Chain Cover, No.2	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
11355-41010	Plate, Rear End	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
11361-45010	Cover, Flywheel Housing Under	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
11366-41010	Seal, Flywheel Housing Under Cover Dust	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
11381-41010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
11381-41011	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
11381-43010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
11383-41010	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
11396-45010	Plate, Timing Mark	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
11396-45011	Plate, Timing Mark	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
12281-31040	Hanger, Engine, No.1	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
12281-41020	Hanger, Engine, No.2	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
12281-41080	Hanger, Engine, No.1	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
12281-41090	Hanger, Engine, No.1	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
12281-42010	Hanger, Engine, No.1	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
12281-45012	Hanger, Engine, No.2	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
12281-45020	Hanger, Engine, No.1	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
12281-45030	Hanger, Engine, No.2	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
31131-30010	Seal, Flywheel Housing Under Cover Dust	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
90116-08083	New Genuine Part	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
90119-08830	Bolt(For Oil Receiver Pipe)	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
90311-45002	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
90311-45069	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
90311-80001	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
90311-80139	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
91111-41055	Bolt(For Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
91511-60825	Bolt (For Transfer Stiffener Plate)	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
91511-B0825	Bolt (For Transfer Stiffener Plate)	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
91611-40814	Bolt(For Manual Transmission Oil Pan Setting)	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
91611-40818	Bolt(for Oil Receiver Pipe)	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
91611-40825	Bolt(For Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
91611-40855	Bolt(For Rocker Support Set)	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
91611-41020	Bolt(for Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
91611-60814	Bolt	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
91611-60855	Bolt(For Rocker Support Set)	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
91611-B0816	Bolt	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
91651-40614	Bolt	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
94110-41000	Nut(For Steering Damper)	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
94110-50800	Nut(For Repair Actuator Set)	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
94531-00800	Washer (For Transfer Shift Outer Lever)	Timing Gear Cover & Rear End Plate ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M)
