MS83

Toyota CROWN-MAJESTA · 1975 · 6,336 parts · 205 categories
MS83 ×

← Back to categories

6,336 items

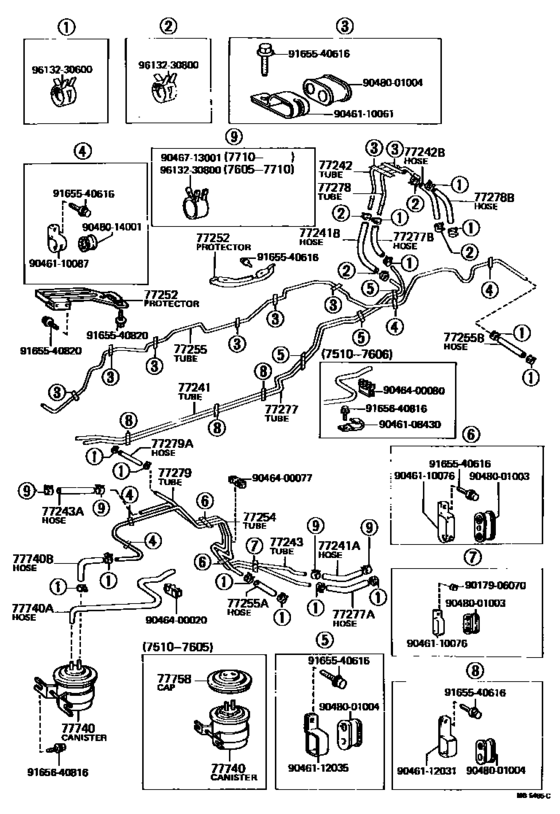

Fuel Tank & Tube ([10.1975 - 08.1979] (7510-7908)WG) 68
#OEMPart name
77241 77253-30070 Tube, Fuel Main, No.1
77241 95335-08017 Hose, Fuel, No.1 (For Main Tube, No.1)
77241 95336-08020 Hose, Fuel Pipe Support To Regulator
77241 77259-30060 Hose, Fuel, No.2 (For Main Tube, No.1)
77241 95331-08026 Hose Or Tube(For Fuel Evaporative Separator) - FUEL, NO.2(FOR CHARCOAL CANISTER)
77241 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77241 95332-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77242 77254-31030 Tube, Fuel Main, No.2
77242 95332-08024 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77242 95332-08026 Hose, Fuel, No.2 (For Main Tube, No.1)
77243 77252-30070 Tube, Fuel Main, No.3
77243 77252-30071 Tube, Fuel Main, No.3
77243 77252-30072 Tube, Fuel Main, No.3
77252 77266-30020 Protector, Fuel Tube
77252 77267-30020 Protector, Fuel Tube
77254 77261-30010 Tube, Fuel Emission, No.1
77254 77261-30020 Tube, Fuel Emission, No.1
77255 77262-31030 Tube, Fuel Emission, No.2
77255 77262-31050 Tube, Fuel Emission, No.2
77255 95331-06013 Hose, Fuel (For Fuel Tank Breather Tube) - FUEL, NO.1 (FOR BREATHER TUBE)
77255 95337-06020 Hose, Differential Pressure Control
77277 77257-30050 Tube, Fuel Return, No.1
77277 95331-06019 Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)
77277 95332-06019 Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1
77277 77279-30030 Hose, Fuel, No.2(For Return Tube, No.1)
77277 95331-06022 Hose, Fuel, No.2 (For Main Tube, No.2)
77277 95333-06030 Hose, Fuel
77277 95332-06022 Hose, Fuel
77277 95332-06026 Hose, Fuel
77278 77258-31010 Tube, Fuel Return, No.2
77278 95331-06026 Hose, Fuel
77279 77256-30020 Tube, Fuel Return, No.3
77279 77256-30021 Tube, Fuel Return, No.3
77740 77740-30030 Canister Assy, Charcoal
77740 77740-30040 Canister Assy, Charcoal
77740 77740-30041 Canister Assy, Charcoal
77740 90445-07338 Hose, Fuel, No.1(For Charcoal Canister)
77740 95331-06007 Hose, Fuel Pipe, No.1 - FUEL, NO.3(FOR FUEL EXPANSION TANK)
77740 95331-06017 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1 (FOR BREATHER TUBE)
77758 77758-30011 Cap, Charcoal Canister
77758 77758-30020 Cap, Charcoal Canister
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9046108430 90461-08430 New Genuine Part
9046110061 90461-10061 New Genuine Part
9046110076 90461-10076 New Genuine Part
9046110087 90461-10087 New Genuine Part
9046112031 90461-12031 New Genuine Part
9046112035 90461-12035 New Genuine Part
9046400020 90464-00020 New Genuine Part
9046400077 90464-00077 New Genuine Part
9046400080 90464-00080 New Genuine Part
9046713001 90467-13001 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046713001 96135-51300 Clamp, Hose
9048001003 90480-01003 New Genuine Part
9048001004 90480-01004 New Genuine Part
9048014001 90480-14001 New Genuine Part
9165540616 91655-40616 Bolt
9165540616 91651-60614 Bolt
9165540820 91655-40820 New Genuine Part
9165540820 91653-40820 BOLT, W/WASHER
9165640816 91656-40816 New Genuine Part
9165640816 91651-B0814 Bolt with washer
9165640816 90119-A0109 New Genuine Part
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
9613230800 96132-30800 Clip, No.3(For Idle-Up Hose)
9613230800 96132-51300 Clip(For Ventilation Hose No.2)
