MS137

Toyota CROWN-MAJESTA · 1987 · 6,710 parts · 243 categories

← Back to categories

6,710 items

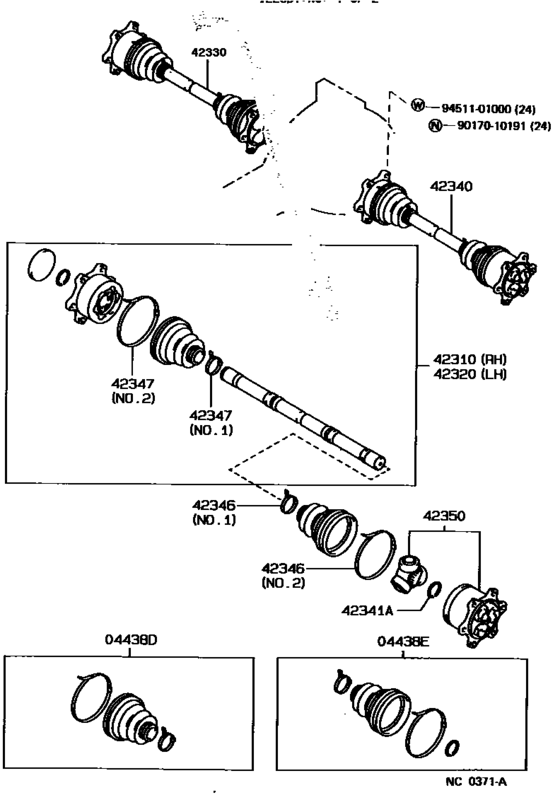

Rear Axle Shaft & Hub ([09.1987 - ] (8709- )GS131..SPC ; (8709- )JZS131,MS135, 137,UZS131) 15

#	OEM	Part name
4438	04437-30030	Boot Kit, Rear Drive Shaft Inboard Joint
4438	04437-14030	Boot Kit, Rear Drive Shaft Inboard Joint
4438	04437-25011	Boot Kit, Front Drive Shaft Inboard Joint
42310	42310-30010	Shaft Assy, Rear Drive Inboard Joint, Rh
42320	42320-30010	Shaft Assy, Rear Drive Inboard Joint, Lh
42330	42330-30020	Shaft Assy, Rear Drive, Rh
42340	42340-30020	Shaft Assy, Rear Drive
42341	90520-29028	Ring, Snap (For Rear Drive Shaft)
42346	90949-01221	Clamp, Rear Drive Shaft Boot
42346	90949-01222	Clamp (For Rear Drive Shaft Outboard Joint Boot)
42347	90949-01290	Clamp (For Rear Drive Shaft Outboard Joint Boot)
42350	42350-30020	Joint Assy, Rear Drive Shaft Outboard
42350	42360-26010	Joint Assy, Rear Drive Shaft Inboard
9017010191	90170-10191	Nut(For Rear Drive Shaft)
9451101000	94511-01000	Washer(For Rear Drive Shaft)

OEM	Part name	Category
04437-14030	Boot Kit, Rear Drive Shaft Inboard Joint	Rear Axle Shaft & Hub ([09.1987 - ] (8709- )GS131..SPC ; (8709- )JZS131,MS135, 137,UZS131)
04437-25011	Boot Kit, Front Drive Shaft Inboard Joint	Rear Axle Shaft & Hub ([09.1987 - ] (8709- )GS131..SPC ; (8709- )JZS131,MS135, 137,UZS131)
04437-30030	Boot Kit, Rear Drive Shaft Inboard Joint	Rear Axle Shaft & Hub ([09.1987 - ] (8709- )GS131..SPC ; (8709- )JZS131,MS135, 137,UZS131)
42310-30010	Shaft Assy, Rear Drive Inboard Joint, Rh	Rear Axle Shaft & Hub ([09.1987 - ] (8709- )GS131..SPC ; (8709- )JZS131,MS135, 137,UZS131)
42320-30010	Shaft Assy, Rear Drive Inboard Joint, Lh	Rear Axle Shaft & Hub ([09.1987 - ] (8709- )GS131..SPC ; (8709- )JZS131,MS135, 137,UZS131)
42330-30020	Shaft Assy, Rear Drive, Rh	Rear Axle Shaft & Hub ([09.1987 - ] (8709- )GS131..SPC ; (8709- )JZS131,MS135, 137,UZS131)
42340-30020	Shaft Assy, Rear Drive	Rear Axle Shaft & Hub ([09.1987 - ] (8709- )GS131..SPC ; (8709- )JZS131,MS135, 137,UZS131)
42350-30020	Joint Assy, Rear Drive Shaft Outboard	Rear Axle Shaft & Hub ([09.1987 - ] (8709- )GS131..SPC ; (8709- )JZS131,MS135, 137,UZS131)
42360-26010	Joint Assy, Rear Drive Shaft Inboard	Rear Axle Shaft & Hub ([09.1987 - ] (8709- )GS131..SPC ; (8709- )JZS131,MS135, 137,UZS131)
90170-10191	Nut(For Rear Drive Shaft)	Rear Axle Shaft & Hub ([09.1987 - ] (8709- )GS131..SPC ; (8709- )JZS131,MS135, 137,UZS131)
90520-29028	Ring, Snap (For Rear Drive Shaft)	Rear Axle Shaft & Hub ([09.1987 - ] (8709- )GS131..SPC ; (8709- )JZS131,MS135, 137,UZS131)
90949-01221	Clamp, Rear Drive Shaft Boot	Rear Axle Shaft & Hub ([09.1987 - ] (8709- )GS131..SPC ; (8709- )JZS131,MS135, 137,UZS131)
90949-01222	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Rear Axle Shaft & Hub ([09.1987 - ] (8709- )GS131..SPC ; (8709- )JZS131,MS135, 137,UZS131)
90949-01290	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Rear Axle Shaft & Hub ([09.1987 - ] (8709- )GS131..SPC ; (8709- )JZS131,MS135, 137,UZS131)
94511-01000	Washer(For Rear Drive Shaft)	Rear Axle Shaft & Hub ([09.1987 - ] (8709- )GS131..SPC ; (8709- )JZS131,MS135, 137,UZS131)
