Search › Model › MS137

MS137

Toyota CROWN-MAJESTA · 1987 · 6,710 parts · 243 categories

6,710 items

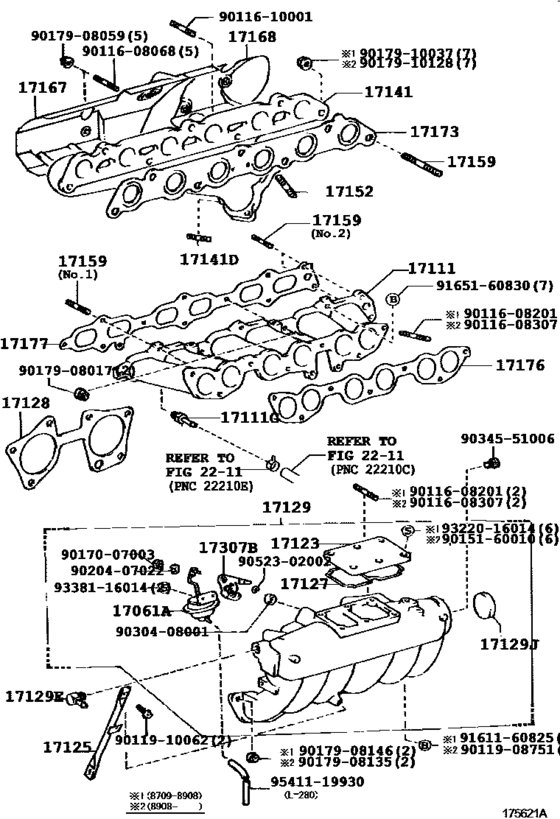

Manifold ([09.1987 - ] (8709- )7MGE) 60

#	OEM	Part name
17061	17061-42010	Diaphragm Sub-Assy
17111	17111-42020	Manifold, Intake
17111	90404-51096	Union(For Intake Manifold Water)
17123	17123-42020	Cover, Surge Tank
17125	17125-42010	Stay, Surge Tank, No.1
17127	17127-42010	Gasket, Surge Tank Cover
17128	17128-42010	Gasket, Surge Tank
17128	17128-42020	Gasket, Surge Tank
17129	17109-42050	Tank, Intake Air Surge
17129	17109-42060	Tank, Intake Air Surge
17129	90404-54033	Union, No.3
17129	90404-54039	Union, No.3
17129	90331-55001	Plug, Expansion(For Camshaft)
17141	17141-43010	Manifold, Exhaust
17141	90116-08128	Bolt, Stud(For Manifold Stay)
17152	90116-10058	Bolt, Stud(For Manifold Extension)
17152	90116-10146	Bolt, Stud(For Manifold To Exhaust Pipe)
17159	90116-08178	Bolt, Stud(For Manifold To Cylinder Head)
17159	90116-08230	Bolt, Stud(For Manifold To Cylinder Head)
17159	90116-10025	Bolt, Stud(For Manifold To Cylinder Head)
17167	17167-42020	Insulator, Exhaust Manifold Heat, No.1
17167	17167-43011	Insulator, Exhaust Manifold Heat, No.1
17168	17168-42020	Insulator, Exhaust Manifold Heat, No.2
17168	17168-43010	Insulator, Exhaust Manifold Heat, No.2
17173	17173-43020	Gasket, Exhaust Manifold To Head
17173	17173-43040	Gasket, Exhaust Manifold To Head
17176	17176-42010	Gasket, Air Surge Tank To Intake Manifold
17176	17176-42020	Gasket, Air Surge Tank To Intake Manifold
17177	17177-42010	Gasket, Intake Manifold To Head, No.1
17177	17177-42020	Gasket, Intake Manifold To Head, No.1
17307	17307-42020	Lever Sub-Assy, Intake Air Control
9011608068	90116-08068	Bolt, Stud
9011608201	90116-08201	Bolt, Stud(For Head To Camshaft Bearing Cap)
9011608307	90116-08307	New Genuine Part
9011610001	90116-10001	Bolt, Stud(For Manifold To Exhaust Pipe)
9011908751	90119-08751	Bolt(For Head To Camshaft Bearing Cap)
9011910062	90119-10062	New Genuine Part
9011910062	90119-10640	New Genuine Part
9015160010	90151-60010	New Genuine Part
9017007003	90170-07003	Nut, Hexagon(For Valve Adjusting)
9017908017	90179-08017	NUT
9017908059	90179-08059	Nut
9017908059	90179-08101	NUT
9017908135	90179-08135	New Genuine Part
9017908135	90179-08153	NUT
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9017910037	90179-10037	NUT
9017910037	90179-10128	NUT
9020407022	90204-07022	New Genuine Part
9030408001	90304-08001	New Genuine Part
9034551006	90345-51006	Plug, W/head Taper Screw, No.2
9052302002	90523-02002	Ring, E(For Surge Tank Diaphrgm)
9161160825	91611-60825	Bolt(For Head To Camshaft Bearing Cap)
9161160825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9165160830	91651-60830	Bolt (For Transfer Power Take-Off Cover)
9322016014	93220-16014	SCREW
9338116014	93381-16014	New Genuine Part
9541119930	95411-19930	Hose(For Carburetor To Manifold)
9541119930	90999-92002	Air Hose (300 mm)

OEM	Part name	Category
17061-42010	Diaphragm Sub-Assy	Manifold ([09.1987 - ] (8709- )7MGE)
17109-42050	Tank, Intake Air Surge	Manifold ([09.1987 - ] (8709- )7MGE)
17109-42060	Tank, Intake Air Surge	Manifold ([09.1987 - ] (8709- )7MGE)
17111-42020	Manifold, Intake	Manifold ([09.1987 - ] (8709- )7MGE)
17123-42020	Cover, Surge Tank	Manifold ([09.1987 - ] (8709- )7MGE)
17125-42010	Stay, Surge Tank, No.1	Manifold ([09.1987 - ] (8709- )7MGE)
17127-42010	Gasket, Surge Tank Cover	Manifold ([09.1987 - ] (8709- )7MGE)
17128-42010	Gasket, Surge Tank	Manifold ([09.1987 - ] (8709- )7MGE)
17128-42020	Gasket, Surge Tank	Manifold ([09.1987 - ] (8709- )7MGE)
17141-43010	Manifold, Exhaust	Manifold ([09.1987 - ] (8709- )7MGE)
17167-42020	Insulator, Exhaust Manifold Heat, No.1	Manifold ([09.1987 - ] (8709- )7MGE)
17167-43011	Insulator, Exhaust Manifold Heat, No.1	Manifold ([09.1987 - ] (8709- )7MGE)
17168-42020	Insulator, Exhaust Manifold Heat, No.2	Manifold ([09.1987 - ] (8709- )7MGE)
17168-43010	Insulator, Exhaust Manifold Heat, No.2	Manifold ([09.1987 - ] (8709- )7MGE)
17173-43020	Gasket, Exhaust Manifold To Head	Manifold ([09.1987 - ] (8709- )7MGE)
17173-43040	Gasket, Exhaust Manifold To Head	Manifold ([09.1987 - ] (8709- )7MGE)
17176-42010	Gasket, Air Surge Tank To Intake Manifold	Manifold ([09.1987 - ] (8709- )7MGE)
17176-42020	Gasket, Air Surge Tank To Intake Manifold	Manifold ([09.1987 - ] (8709- )7MGE)
17177-42010	Gasket, Intake Manifold To Head, No.1	Manifold ([09.1987 - ] (8709- )7MGE)
17177-42020	Gasket, Intake Manifold To Head, No.1	Manifold ([09.1987 - ] (8709- )7MGE)
17307-42020	Lever Sub-Assy, Intake Air Control	Manifold ([09.1987 - ] (8709- )7MGE)
90116-08068	Bolt, Stud	Manifold ([09.1987 - ] (8709- )7MGE)
90116-08128	Bolt, Stud(For Manifold Stay)	Manifold ([09.1987 - ] (8709- )7MGE)
90116-08178	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([09.1987 - ] (8709- )7MGE)
90116-08201	Bolt, Stud(For Head To Camshaft Bearing Cap)	Manifold ([09.1987 - ] (8709- )7MGE)
90116-08230	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([09.1987 - ] (8709- )7MGE)
90116-08307	New Genuine Part	Manifold ([09.1987 - ] (8709- )7MGE)
90116-10001	Bolt, Stud(For Manifold To Exhaust Pipe)	Manifold ([09.1987 - ] (8709- )7MGE)
90116-10025	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([09.1987 - ] (8709- )7MGE)
90116-10058	Bolt, Stud(For Manifold Extension)	Manifold ([09.1987 - ] (8709- )7MGE)
90116-10146	Bolt, Stud(For Manifold To Exhaust Pipe)	Manifold ([09.1987 - ] (8709- )7MGE)
90119-08751	Bolt(For Head To Camshaft Bearing Cap)	Manifold ([09.1987 - ] (8709- )7MGE)
90119-10062	New Genuine Part	Manifold ([09.1987 - ] (8709- )7MGE)
90119-10640	New Genuine Part	Manifold ([09.1987 - ] (8709- )7MGE)
90151-60010	New Genuine Part	Manifold ([09.1987 - ] (8709- )7MGE)
90170-07003	Nut, Hexagon(For Valve Adjusting)	Manifold ([09.1987 - ] (8709- )7MGE)
90179-08017	NUT	Manifold ([09.1987 - ] (8709- )7MGE)
90179-08059	Nut	Manifold ([09.1987 - ] (8709- )7MGE)
90179-08101	NUT	Manifold ([09.1987 - ] (8709- )7MGE)
90179-08135	New Genuine Part	Manifold ([09.1987 - ] (8709- )7MGE)
90179-08146	Nut	Manifold ([09.1987 - ] (8709- )7MGE)
90179-08153	NUT	Manifold ([09.1987 - ] (8709- )7MGE)
90179-08204	Nut	Manifold ([09.1987 - ] (8709- )7MGE)
90179-10037	NUT	Manifold ([09.1987 - ] (8709- )7MGE)
90179-10128	NUT	Manifold ([09.1987 - ] (8709- )7MGE)
90204-07022	New Genuine Part	Manifold ([09.1987 - ] (8709- )7MGE)
90304-08001	New Genuine Part	Manifold ([09.1987 - ] (8709- )7MGE)
90331-55001	Plug, Expansion(For Camshaft)	Manifold ([09.1987 - ] (8709- )7MGE)
90345-51006	Plug, W/head Taper Screw, No.2	Manifold ([09.1987 - ] (8709- )7MGE)
90404-51096	Union(For Intake Manifold Water)	Manifold ([09.1987 - ] (8709- )7MGE)
90404-54033	Union, No.3	Manifold ([09.1987 - ] (8709- )7MGE)
90404-54039	Union, No.3	Manifold ([09.1987 - ] (8709- )7MGE)
90523-02002	Ring, E(For Surge Tank Diaphrgm)	Manifold ([09.1987 - ] (8709- )7MGE)
90999-92002	Air Hose (300 mm)	Manifold ([09.1987 - ] (8709- )7MGE)
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Manifold ([09.1987 - ] (8709- )7MGE)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Manifold ([09.1987 - ] (8709- )7MGE)
91651-60830	Bolt (For Transfer Power Take-Off Cover)	Manifold ([09.1987 - ] (8709- )7MGE)
93220-16014	SCREW	Manifold ([09.1987 - ] (8709- )7MGE)
93381-16014	New Genuine Part	Manifold ([09.1987 - ] (8709- )7MGE)
95411-19930	Hose(For Carburetor To Manifold)	Manifold ([09.1987 - ] (8709- )7MGE)
