MS137

Toyota CROWN-MAJESTA · 1987 · 6,710 parts · 243 categories

6,710 items

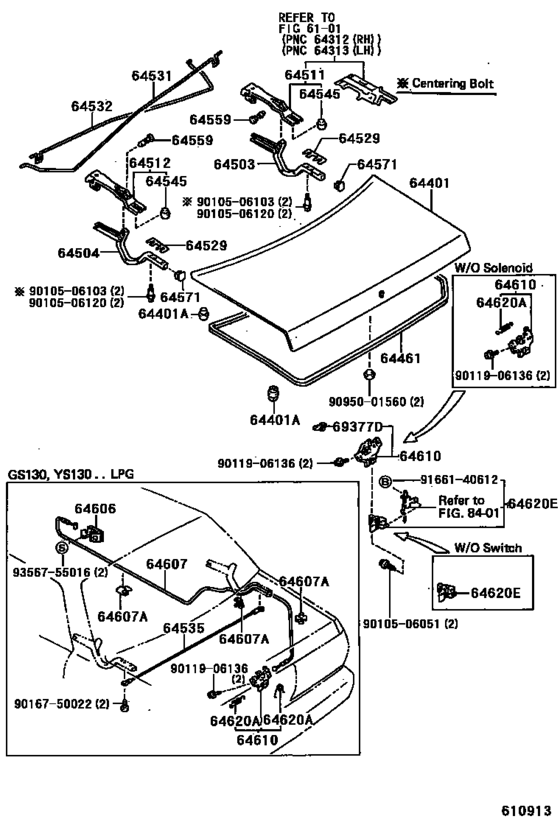

Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED) 35

#	OEM	Part name
64401	64401-30672	Panel Sub-Assy, Luggage Compartment Door
64401	90541-08009	Cushion(For Luggage Compartment Door Panel)
64401	90541-08018	Cushion(For Luggage Compartment Door Panel)
64401	90541-09017	Cushion(For Luggage Compartment Door Panel)
64401	90541-09151	Cushion(For Luggage Compartment Door Panel)
64401	90541-20003	Cushion(For Luggage Compartment Door Panel)
64461	64461-30190	Weatherstrip, Luggage Compartment Door
64503	64503-30030	Arm Sub-Assy, Luggage Compartment Door Hinge, Rh
64503	64503-30040	Arm Sub-Assy, Luggage Compartment Door Hinge, Rh
64504	64504-30030	Arm Sub-Assy, Luggage Compartment Door Hinge, Lh
64504	64504-30040	Arm Sub-Assy, Luggage Compartment Door Hinge, Lh
64511	64511-30120	Support, Luggage Compartment Door Hinge, Rh
64512	64512-30050	Support, Luggage Compartment Door Hinge, Lh
64529	64529-14010	Spacer, Luggage Compartment Door Hinge
64531	64531-30180	Bar, Luggage Door Hinge Torsion, Rh
64531	64531-30210	Bar, Luggage Door Hinge Torsion, Rh
64532	64532-30180	Bar, Luggage Door Hinge Torsion, Lh
64532	64532-30200	Bar, Luggage Door Hinge Torsion, Lh
64545	90541-11006	Cushion, Luggage Door Hinge
64559	64559-30010	Pin, Luggage Door Hinge
64571	64571-30020	Cover, Luggage Compartment Door Hinge
64610	64610-30070	Lock Assy, Luggage Compartment Door
64620	64620-30070	Striker Assy, Luggage Compartment Door
64620	64620-30071	Striker Assy, Luggage Compartment Door
69377	69377-30031	Snap, Door Lock Control Rod
9010506051	90105-06051	New Genuine Part
9010506051	90105-06168	BOLT WASHER BASED
9010506103	90105-06103	TY STANDARD PARTS REF ART
9010506103	90105-06120	BOLT WASHER BASED
9011906136	90119-06136	New Genuine Part
9016750022	90167-50022	SCREW
9095001560	90950-01560	PLUG HOLE
9166140612	91661-40612	New Genuine Part
9356755016	93567-55016	Screw
9356755016	93568-55016	Screw

OEM	Part name	Category
64401-30672	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
64461-30190	Weatherstrip, Luggage Compartment Door	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
64503-30030	Arm Sub-Assy, Luggage Compartment Door Hinge, Rh	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
64503-30040	Arm Sub-Assy, Luggage Compartment Door Hinge, Rh	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
64504-30030	Arm Sub-Assy, Luggage Compartment Door Hinge, Lh	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
64504-30040	Arm Sub-Assy, Luggage Compartment Door Hinge, Lh	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
64511-30120	Support, Luggage Compartment Door Hinge, Rh	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
64512-30050	Support, Luggage Compartment Door Hinge, Lh	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
64529-14010	Spacer, Luggage Compartment Door Hinge	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
64531-30180	Bar, Luggage Door Hinge Torsion, Rh	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
64531-30210	Bar, Luggage Door Hinge Torsion, Rh	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
64532-30180	Bar, Luggage Door Hinge Torsion, Lh	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
64532-30200	Bar, Luggage Door Hinge Torsion, Lh	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
64559-30010	Pin, Luggage Door Hinge	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
64571-30020	Cover, Luggage Compartment Door Hinge	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
64610-30070	Lock Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
64620-30070	Striker Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
64620-30071	Striker Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
69377-30031	Snap, Door Lock Control Rod	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
90105-06051	New Genuine Part	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
90105-06103	TY STANDARD PARTS REF ART	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
90105-06120	BOLT WASHER BASED	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
90105-06168	BOLT WASHER BASED	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
90119-06136	New Genuine Part	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
90167-50022	SCREW	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
90541-08009	Cushion(For Luggage Compartment Door Panel)	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
90541-08018	Cushion(For Luggage Compartment Door Panel)	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
90541-09017	Cushion(For Luggage Compartment Door Panel)	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
90541-09151	Cushion(For Luggage Compartment Door Panel)	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
90541-11006	Cushion, Luggage Door Hinge	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
90541-20003	Cushion(For Luggage Compartment Door Panel)	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
90950-01560	PLUG HOLE	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
91661-40612	New Genuine Part	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
93567-55016	Screw	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)
93568-55016	Screw	Luggage Compartment Door & Lock ([09.1987 - ] (8709- )HT,SED)

Source: Public OEM parts-catalog data
Variants: 1 / 4
Category: 243
Collected: 2026-08-03
