Search › Model › MS137

MS137

Toyota CROWN-MAJESTA · 1987 · 6,710 parts · 243 categories

6,710 items

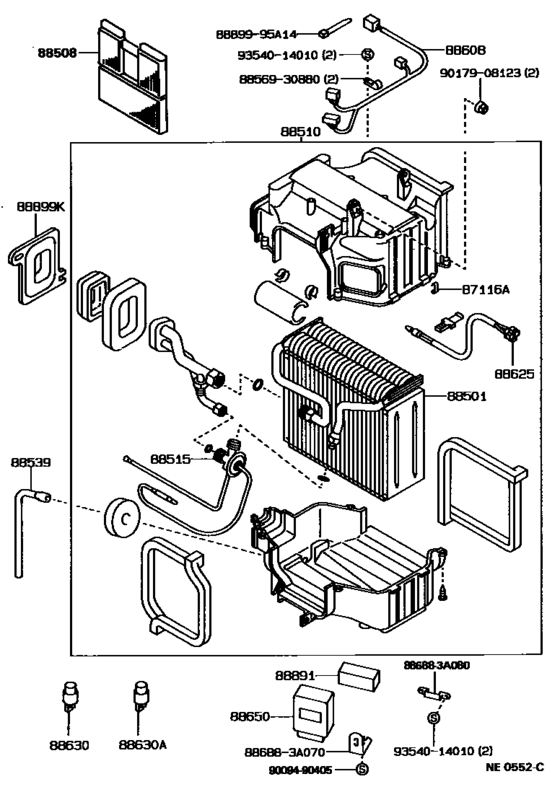

Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- )) 35

#	OEM	Part name
88501	88501-30620	Evaporator Sub-Assy, Cooler, No.1
88501	88501-30630	Evaporator Sub-Assy, Cooler, No.1
88501	88501-30660	Evaporator Sub-Assy, Cooler, No.1
88501	88501-30670	Evaporator Sub-Assy, Cooler, No.1
88508	88508-30010	Filter Sub-Assy, Clean Air
88510	88510-3A170	Unit Assy, Cooler
88510	88510-3A190	Unit Assy, Cooler
88510	88510-3A270	Unit Assy, Cooler
88510	88650-30590	Amplifier Assy, Cooler Stabilizer
88510	88510-3A191	Unit Assy, Cooler
88510	88510-3A570	Unit Assy, Cooler
88510	88510-3A330	Unit Assy, Cooler
88510	88510-3A390	Unit Assy, Cooler
88515	88515-30310	Valve, Cooler Expansion
88515	88515-30330	Valve, Cooler Expansion
88515	88515-30333	Valve, Cooler Expansion
88515	88515-30331	Valve, Cooler Expansion
88515	88515-30332	Valve, Cooler Expansion
88539	88539-30610	Hose, Cooler Unit Drain, No.1
88539	88539-30630	Hose, Cooler Unit Drain, No.1
88608	88608-30460	Harness Sub-Assy, Cooler Wiring, No.1
88608	88608-30680	Harness Sub-Assy, Wiring Air Conditioner
88608	88608-30710	Harness Sub-Assy, Wiring Air Conditioner
88625	88625-30750	Thermistor, Cooler, No.1
88630	90987-02004	Relay Assy, Starter
88630	88630-87010	Relay Assy (For Heater Blower Motor)
88650	88650-30670	Amplifier Assy, Cooler Stabilizer
88899	88899-30660	Plate, Cover
886883	88688-3A070	Bracket, Cooler Diaphragm
886883	88688-3A080	Bracket, Cooler Diaphragm
8889995	88899-95A14	Cover, Evaporator
8856930880	88569-30880	Clamp (for Cooler Relay)
9009490405	90094-90405	New Genuine Part
9017908123	90179-08123	Nut (For Front Wiper Arm Setting)
9354014010	93540-14010	Clip, Headlining Retainer

OEM	Part name	Category
88501-30620	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88501-30630	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88501-30660	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88501-30670	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88508-30010	Filter Sub-Assy, Clean Air	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88510-3A170	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88510-3A190	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88510-3A191	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88510-3A270	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88510-3A330	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88510-3A390	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88510-3A570	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88515-30310	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88515-30330	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88515-30331	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88515-30332	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88515-30333	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88539-30610	Hose, Cooler Unit Drain, No.1	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88539-30630	Hose, Cooler Unit Drain, No.1	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88569-30880	Clamp (for Cooler Relay)	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88608-30460	Harness Sub-Assy, Cooler Wiring, No.1	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88608-30680	Harness Sub-Assy, Wiring Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88608-30710	Harness Sub-Assy, Wiring Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88625-30750	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88630-87010	Relay Assy (For Heater Blower Motor)	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88650-30590	Amplifier Assy, Cooler Stabilizer	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88650-30670	Amplifier Assy, Cooler Stabilizer	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88688-3A070	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88688-3A080	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88899-30660	Plate, Cover	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
88899-95A14	Cover, Evaporator	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
90094-90405	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
90179-08123	Nut (For Front Wiper Arm Setting)	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
90987-02004	Relay Assy, Starter	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
93540-14010	Clip, Headlining Retainer	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] FRONT(DEALER OPT) (8709- ))
