MS137

Toyota CROWN-MAJESTA · 1987 · 6,710 parts · 243 categories
MS137 ×

← Back to categories

6,710 items

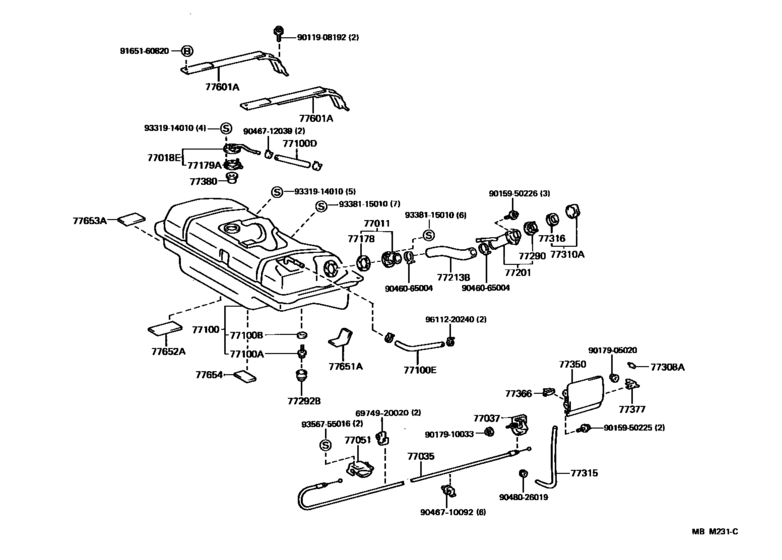

Fuel Tank & Tube ([09.1987 - 08.1989] (8709-8908)GS131,MS135,137) 113
#OEMPart name
77011 77011-30020 Pipe Sub-Assy, Fuel Tank Filler, Lower
77011 77011-30021 Pipe Sub-Assy, Fuel Tank Filler, Lower
77018 77018-30050 Tube Sub-Assy, Fuel Tank Evaporation Vent
77025 77025-30160 Tube Sub-Assy, Fuel Main & Return, Rear
77035 77035-30120 Cable Sub-Assy, Fuel Lid Lock Control
77035 77035-30130 Cable Sub-Assy, Fuel Lid Lock Control
77037 77037-14010 Lock Sub-Assy, Fuel Tank Cap
77037 77037-90K00 Lock Sub-Assy, Fuel Tank Cap
77051 77051-30060-02 Lever Sub-Assy, Fuel Lid Open
77051 77051-30060-04 Lever Sub-Assy, Fuel Lid Open
77051 77051-30060-C0 Lever Sub-Assy, Fuel Lid Open
77051 77051-30060-06 Lever Sub-Assy, Fuel Lid Open
77100 77001-30934 Tank Assy, Fuel
77100 77001-30936 Tank Assy, Fuel
77100 90105-12116 Plug(For Fuel Tank)
77100 90430-12245 Gasket(For Fuel Tank)
77100 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77100 95337-06020 Hose, Differential Pressure Control
77100 90445-22913 Hose, Fuel, No.2(For Fuel Tank)
77100 90445-22024 Hose, Fuel, No.1(For Fuel Tank)
77178 77178-10010 Gasket, Fuel Pump Bracket
77179 77179-16010 Gasket, Fuel Tank Evap/vent Tube
77201 77201-30170 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-30171 Pipe Sub-Assy, Fuel Tank Inlet
77213 77213-30060 Hose, Fuel Tank To Filler Pipe
77213 90460-65002 Clamp Or Clip(For Air Hose, No.1)
77213 77213-30090 Hose, Fuel Tank Sub Inlet
77213 77213-30061 Hose, Fuel Tank To Filler Pipe
77213 77213-30100 Hose, Fuel Tank To Filler Pipe
77252 77252-30300 Tube, Fuel Main, No.2
77252 77252-30390 Tube, Fuel Main, No.2
77253 77259-30100 Hose, Fuel, No.1(For Fuel Main No.3 Tube)
77256 77256-30210 Tube, Fuel Return, No.2
77257 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77257 95333-08020 Hose, Lpg Injector
77257 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77261 77261-30080 Tube, Fuel Tank To Canister
77262 95333-06030 Hose, Fuel
77262 95338-06030 HOSE, FUEL
77267 77267-30050 Protector, Fuel Tube, No.2
77277 23271-42040 Hose, Fuel, No.1(For Return Tube, No.1)
77277 23271-42041 Hose, Fuel, No.1(For Return Tube, No.1)
77277 23271-43070 Hose, Fuel, No.1(For Return Tube, No.1)
77290 77291-30030 Shield Assy, Fuel Tank Filler Pipe
77292 77292-30020 Shield, Fuel Tank Drain Plug
77295 77295-30020 Grommet, Fuel Tube
77296 77296-30020 Plate, Fuel Tube Grommet Support
77308 90541-08016 Cushion(For Fuel Inlet Box Cover)
77308 90541-08014 Cushion(For Fuel Inlet Box Cover)
77310 77310-16011 Cap Assy, Fuel Tank
77310 77310-12140 Cap Assy, Fuel Tank
77315 90446-09011 Hose, Fuel Filler Opening
77315 90446-09012 Hose, Fuel Filler Opening
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-30150 Lid Assy, Fuel Filler Opening
77366 77360-24010 Retainer, Fuel Inlet Cushion
77377 77377-20030 Retainer, Fuel Filler Opening Lid Lock
77380 77380-14020 Valve Assy, Fuel Cut Off
77601 77601-30110 Band Sub-Assy, Fuel Tank, No.1
77601 77601-30140 Band Sub-Assy, Fuel Tank, No.1
77651 77651-30070 Cushion, Fuel Tank, No.1
77652 77652-30030 Cushion, Fuel Tank, No.2
77653 77653-30020 Cushion, Fuel Tank, No.3
77740 77740-30130 Canister Assy, Charcoal
77740 77264-30020 Tube, Canister To Front Side Member
77754 90445-12119 Hose, Fuel, No.1(For Charcoal Canister)
6974920020 69749-20020 Clamp, No.1(For Luggage Door Lock Control Cable)
9011906352 90119-06352 New Genuine Part
9011906352 90119-06430 BOLT WWASHER
9011906398 90119-06398 BOLT WWASHER
9011908192 90119-08192 New Genuine Part
9011908601 90119-08601 Bolt(For Front Stabilizer Bar Protector)
9015950225 90159-50225 New Genuine Part
9015950226 90159-50226 New Genuine Part
9015960008 90159-60008 SCREW
9017905020 90179-05020 NUT
9017905020 90179-05011 NUT
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9017910033 90179-10033 Nut (For Front Wiper Arm Setting)
9018906034 90189-06034 GROMMET
9040112097 90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)
9043012010 90430-12010 Gasket(For Water Hole)
9046065004 90460-65004 Clamp Or Clip(For Air Hose, No.1)
9046216061 90462-16061 New Genuine Part
9046400337 90464-00337 New Genuine Part
9046400405 90464-00405 New Genuine Part
9046710092 90467-10092 New Genuine Part
9046710092 90469-01002 New Genuine Part
9046712039 90467-12039 Clip, No.1(For Idle-Up Hose)
9046712039 96132-51100 Clip (For Hose)
9046713001 90467-13001 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046713001 96135-51300 Clamp, Hose
9046713042 90467-13042 Clip, No.2(For Idle-Up Hose)
9048001235 90480-01235 New Genuine Part
9048001269 90480-01269 New Genuine Part
9048014470 90480-14470 Grommet
9048026019 90480-26019 New Genuine Part
9095901307 90959-01307 New Genuine Part
9095901308 90959-01308 New Genuine Part
9095901309 90959-01309 New Genuine Part
9095901311 90959-01311 New Genuine Part
9095901312 90959-01312 New Genuine Part
9095901313 90959-01313 New Genuine Part
9095901314 90959-01314 New Genuine Part
9095901315 90959-01315 New Genuine Part
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
9331914010 93319-14010 SCREW
9338115010 93381-15010 SCREW
9356755016 93567-55016 Screw
9356755016 93568-55016 Screw
9611220240 96112-20240 New Genuine Part
