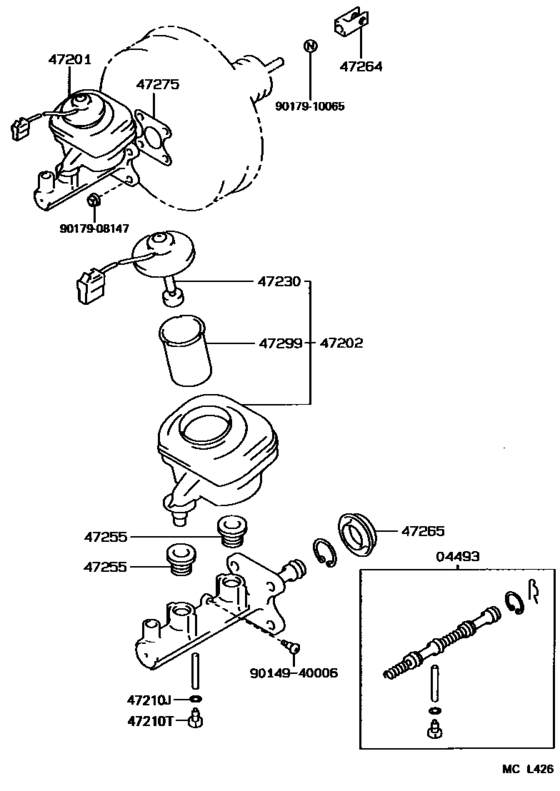

| 04493-30200 |
Cylinder Kit, Brake Master |
Brake Master Cylinder ([09.1987 - 08.1989] ｱﾘ(ESC OR ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ) (8709-8908)MS135,137 ; (8709- )GS131..ROY..SP C) |
| 04493-50010 |
Cylinder Kit, Brake Master |
Brake Master Cylinder ([09.1987 - 08.1989] ｱﾘ(ESC OR ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ) (8709-8908)MS135,137 ; (8709- )GS131..ROY..SP C) |
| 47201-30320 |
Cylinder Sub-Assy, Brake Master |
Brake Master Cylinder ([09.1987 - 08.1989] ｱﾘ(ESC OR ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ) (8709-8908)MS135,137 ; (8709- )GS131..ROY..SP C) |
| 47201-30330 |
Cylinder Sub-Assy, Brake Master |
Brake Master Cylinder ([09.1987 - 08.1989] ｱﾘ(ESC OR ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ) (8709-8908)MS135,137 ; (8709- )GS131..ROY..SP C) |
| 47201-30340 |
Cylinder Sub-Assy, Brake Master |
Brake Master Cylinder ([09.1987 - 08.1989] ｱﾘ(ESC OR ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ) (8709-8908)MS135,137 ; (8709- )GS131..ROY..SP C) |
| 47202-30100 |
Reservoir Sub-Assy, Brake Master Cylinder |
Brake Master Cylinder ([09.1987 - 08.1989] ｱﾘ(ESC OR ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ) (8709-8908)MS135,137 ; (8709- )GS131..ROY..SP C) |
| 47202-30120 |
Reservoir Sub-Assy, Brake Master Cylinder |
Brake Master Cylinder ([09.1987 - 08.1989] ｱﾘ(ESC OR ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ) (8709-8908)MS135,137 ; (8709- )GS131..ROY..SP C) |
| 47255-16010 |
Grommet, Master Cylinder Reservoir |
Brake Master Cylinder ([09.1987 - 08.1989] ｱﾘ(ESC OR ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ) (8709-8908)MS135,137 ; (8709- )GS131..ROY..SP C) |
| 47264-30040 |
Clevis, Master Cylinder Push Rod |
Brake Master Cylinder ([09.1987 - 08.1989] ｱﾘ(ESC OR ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ) (8709-8908)MS135,137 ; (8709- )GS131..ROY..SP C) |
| 47264-50010 |
Clevis, Master Cylinder Push Rod |
Brake Master Cylinder ([09.1987 - 08.1989] ｱﾘ(ESC OR ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ) (8709-8908)MS135,137 ; (8709- )GS131..ROY..SP C) |
| 47265-20050 |
Boot, Clutch Master Cylinder |
Brake Master Cylinder ([09.1987 - 08.1989] ｱﾘ(ESC OR ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ) (8709-8908)MS135,137 ; (8709- )GS131..ROY..SP C) |
| 47275-24010 |
Gasket, Brake Master Cylinder |
Brake Master Cylinder ([09.1987 - 08.1989] ｱﾘ(ESC OR ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ) (8709-8908)MS135,137 ; (8709- )GS131..ROY..SP C) |
| 47299-32010 |
Strainer, Brake Master Cylinder Reservoir |
Brake Master Cylinder ([09.1987 - 08.1989] ｱﾘ(ESC OR ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ) (8709-8908)MS135,137 ; (8709- )GS131..ROY..SP C) |
| 84460-12080 |
Cap Assy, Brake Master Cylinder Reservoir Filler |
Brake Master Cylinder ([09.1987 - 08.1989] ｱﾘ(ESC OR ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ) (8709-8908)MS135,137 ; (8709- )GS131..ROY..SP C) |
| 84460-20110 |
Cap Assy, Brake Master Cylinder Reservoir Filler |
Brake Master Cylinder ([09.1987 - 08.1989] ｱﾘ(ESC OR ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ) (8709-8908)MS135,137 ; (8709- )GS131..ROY..SP C) |
| 84460-30030 |
Cap Assy, Brake Master Cylinder Reservoir Filler |
Brake Master Cylinder ([09.1987 - 08.1989] ｱﾘ(ESC OR ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ) (8709-8908)MS135,137 ; (8709- )GS131..ROY..SP C) |
| 90109-06008 |
Bolt(For Brake Master Cylinder) |
Brake Master Cylinder ([09.1987 - 08.1989] ｱﾘ(ESC OR ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ) (8709-8908)MS135,137 ; (8709- )GS131..ROY..SP C) |
| 90109-06077 |
Bolt(For Brake Master Cylinder) |
Brake Master Cylinder ([09.1987 - 08.1989] ｱﾘ(ESC OR ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ) (8709-8908)MS135,137 ; (8709- )GS131..ROY..SP C) |
| 90149-40006 |
Bolt |
Brake Master Cylinder ([09.1987 - 08.1989] ｱﾘ(ESC OR ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ) (8709-8908)MS135,137 ; (8709- )GS131..ROY..SP C) |
| 90179-08147 |
New Genuine Part |
Brake Master Cylinder ([09.1987 - 08.1989] ｱﾘ(ESC OR ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ) (8709-8908)MS135,137 ; (8709- )GS131..ROY..SP C) |
| 90179-10065 |
Nut, Master Cylinder Push Rod Clevis Lock |
Brake Master Cylinder ([09.1987 - 08.1989] ｱﾘ(ESC OR ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ) (8709-8908)MS135,137 ; (8709- )GS131..ROY..SP C) |
| 90430-06104 |
Gasket(For Brake Actuator) |
Brake Master Cylinder ([09.1987 - 08.1989] ｱﾘ(ESC OR ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ) (8709-8908)MS135,137 ; (8709- )GS131..ROY..SP C) |
