MS135

Toyota CROWN-MAJESTA · 1987 · 5,710 parts · 202 categories

5,710 items

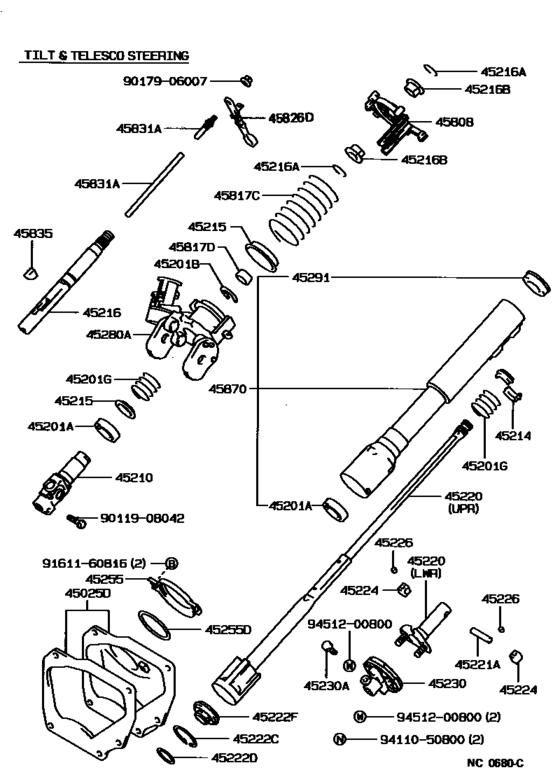

Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY) 49

#	OEM	Part name
45025	45025-30210	Cover Sub-Assy, Steering Column Hole, No.1
45201	90363-28001	Bearing(For Steering Main Shaft)
45201	90369-43004	Bearing(For Steering Main Shaft)
45201	90520-23034	Ring, Drive Pinion Cylindrical Roller Bearing Locking
45201	90522-18001	Ring, Shaft Snap(For Steering Main Shaft)
45201	90501-29388	Spring, Compression(For Steering Main Shaft)
45201	90501-45011	Spring, Compression(For Steering Main Shaft)
45210	45210-30060	Shaft Sub-Assy, Steering Main
45210	45210-30061	Shaft Assy, Steering Main
45210	45210-30070	Shaft Sub-Assy, Steering Main
45210	45210-30072	Shaft Assy, Steering Main
45214	45214-30040	Retainer, Main Shaft Spring
45215	45215-22011	Collar, Main Shaft Bearing Thrust
45215	45215-30010	Collar, Main Shaft Bearing Thrust
45216	45216-30021	Shaft, Steering Sliding
45216	90520-17042	Ring, Shaft Snap(For Steering Main Shaft)
45216	90386-19002	Bush(For Steering Sliding Shaft)
45220	45220-30040	Shaft Sub-Assy, Steering Intermediate
45220	45220-30070	Shaft Assy, Steering Intermediate
45221	90250-10059	Pin(For Steering Intermediate Shaft)
45222	90521-52003	Ring, Hole Snap(For Dust Cover)
45222	90301-23054	Ring, O(For Dust Cover)
45222	45222-30030	Cover, Steering Gear Dust
45224	45224-30040	Block, Bearing(For Steering Flexible Coupling)
45224	45225-30040	Block, Bearing(For Steering Flexible Coupling)
45226	45226-30020	Anti-Rattle(For Steering Flexible Coupling)
45226	45226-30021	Anti-Rattle(For Steering Flexible Coupling)
45230	45230-30110	Coupling Assy, Flexible
45230	45230-30160	Coupling Assy, Flexible
45230	90101-08230	Bolt, Hexagon(For Steering Flexible Copling Set)
45255	45255-30040	Plate, Steering Column Hole Cover
45255	90301-59005	Ring, O(For Steering Column Hole Cover Plate)
45280	45280-30420	Bracket Assy, Steering Column, Upper
45280	45280-30440	Bracket Assy, Steering Column, Upper
45291	45282-22010	Seal, Main Shaft Upper Dust
45808	45808-30030	Stopper, Steering Shaft Thrust
45817	90501-26031	Spring, Compression(For Steering Shaft Thrust Stopper)
45817	90501-25040	Spring, Compression(For Steering Shaft Thrust Stopper)
45817	90540-18013	Cushion(For Steering Shaft Thrust Stopper)
45831	45831-30020	Bolt, Telescope Lever Lock
45831	45831-30030	Bolt, Telescope Lever Lock
45835	45835-30010	Wedge, Lock
45870	45870-30230	Tube Assy, Steering Column
9011908042	90119-08042	Bolt(For Power Steering Pressure Control Valve)
9017906007	90179-06007	Nut
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9411050800	94110-50800	Nut(For Repair Actuator Set)
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
45025-30210	Cover Sub-Assy, Steering Column Hole, No.1	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
45210-30060	Shaft Sub-Assy, Steering Main	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
45210-30061	Shaft Assy, Steering Main	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
45210-30070	Shaft Sub-Assy, Steering Main	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
45210-30072	Shaft Assy, Steering Main	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
45214-30040	Retainer, Main Shaft Spring	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
45215-22011	Collar, Main Shaft Bearing Thrust	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
45215-30010	Collar, Main Shaft Bearing Thrust	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
45216-30021	Shaft, Steering Sliding	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
45220-30040	Shaft Sub-Assy, Steering Intermediate	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
45220-30070	Shaft Assy, Steering Intermediate	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
45222-30030	Cover, Steering Gear Dust	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
45224-30040	Block, Bearing(For Steering Flexible Coupling)	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
45225-30040	Block, Bearing(For Steering Flexible Coupling)	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
45226-30020	Anti-Rattle(For Steering Flexible Coupling)	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
45226-30021	Anti-Rattle(For Steering Flexible Coupling)	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
45230-30110	Coupling Assy, Flexible	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
45230-30160	Coupling Assy, Flexible	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
45255-30040	Plate, Steering Column Hole Cover	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
45280-30420	Bracket Assy, Steering Column, Upper	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
45280-30440	Bracket Assy, Steering Column, Upper	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
45282-22010	Seal, Main Shaft Upper Dust	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
45808-30030	Stopper, Steering Shaft Thrust	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
45831-30020	Bolt, Telescope Lever Lock	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
45831-30030	Bolt, Telescope Lever Lock	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
45835-30010	Wedge, Lock	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
45870-30230	Tube Assy, Steering Column	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
90101-08230	Bolt, Hexagon(For Steering Flexible Copling Set)	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
90119-08042	Bolt(For Power Steering Pressure Control Valve)	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
90179-06007	Nut	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
90250-10059	Pin(For Steering Intermediate Shaft)	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
90301-23054	Ring, O(For Dust Cover)	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
90301-59005	Ring, O(For Steering Column Hole Cover Plate)	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
90363-28001	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
90369-43004	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
90386-19002	Bush(For Steering Sliding Shaft)	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
90501-25040	Spring, Compression(For Steering Shaft Thrust Stopper)	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
90501-26031	Spring, Compression(For Steering Shaft Thrust Stopper)	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
90501-29388	Spring, Compression(For Steering Main Shaft)	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
90501-45011	Spring, Compression(For Steering Main Shaft)	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
90520-17042	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
90520-23034	Ring, Drive Pinion Cylindrical Roller Bearing Locking	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
90521-52003	Ring, Hole Snap(For Dust Cover)	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
90522-18001	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
90540-18013	Cushion(For Steering Shaft Thrust Stopper)	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
91611-B0816	Bolt	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
94110-50800	Nut(For Repair Actuator Set)	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Steering Column & Shaft ([08.1989 - ] (8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY)
