Search › Model › MS135

MS135

Toyota CROWN-MAJESTA · 1987 · 5,710 parts · 202 categories

5,710 items

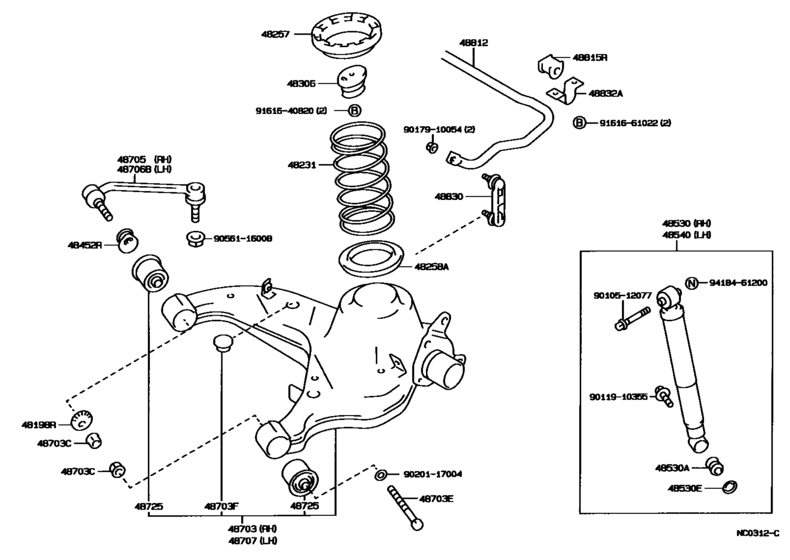

Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135) 40

#	OEM	Part name
48198	48198-30010	Cam, Rear Suspension Camber Adjust, No.2
48231	48231-30560	Spring, Coil, Rear
48257	48257-30040	Insulator, Rear Coil Spring
48258	48258-30020	Insulator, Rear Coil Spring, Lower
48306	48306-30140	Bumper Sub-Assy, Rear Spring
48452	48452-30020	Plate, Rear Suspension Toe Adjust, No.2
48530	48531-39825	Absorber Assy, Shock, Rear Rh
48530	48531-39826	Absorber Assy, Shock, Rear Rh
48530	90385-16004	Cushion, Front Shock Absorber
48530	90948-03004	Retainer, Cushion, No.1(For Front Shock Absorber)
48703	48703-30904	Arm Sub-Assy, Rear Suspension, Rh
48703	90179-14025	Nut (For Front Lower Ball Joint Setting)
48703	90179-16011	Nut(For Rear Suspension Arm)
48703	90101-16017	Bolt(For Rear Suspension Arm)
48703	47491-22020	Plug, Shoe Adjusting Hole (For Parking Brake)
48703	47491-30050	Plug, Hole(For Rear Suspension Arm)
48703	90950-01258	Plug, Hole(For Rear Suspension Arm)
48703	90950-01478	Plug, Hole(For Front Suspension Lower Arm)
48705	48705-30052	Link Sub-Assy, Toe Control, Rh
48705	48705-30060	Link Sub-Assy, Toe Control, Rh
48706	48706-30042	Link Sub-Assy, Toe Control, Lh
48706	48706-30030	Link Sub-Assy, Toe Control, Lh
48707	48707-30904	Arm Sub-Assy, Rear Suspension, Lh
48725	48725-30050	Bush, Lower Control Arm
48725	48725-30060	Bush, Lower Control Arm
48725	48725-30070	Bush, Lower Control Arm
48812	48812-30150	Bar, Stabilizer, Rear
48815	48815-30180	Bush, Stabilizer(For Rear)
48830	48830-30010	Link Assy, Rear Stabilizer
48830	48830-30020	Link Assy, Rear Stabilizer
48832	48832-30030	Bracket, Rear Stabilizer Bar, No.1
9010512077	90105-12077	New Genuine Part
9011910355	90119-10355	Washer, Rear Shock Absorber Cushion, No.2
9017910054	90179-10054	Nut, No.1 (For Center Support Bearing)
9020117004	90201-17004	New Genuine Part
9056116008	90561-16008	New Genuine Part
9161640820	91616-40820	Bolt, Engine Rear Cover Hinge Set
9161661022	91616-61022	Bolt(for Transaxle & Engine Setting)
9161661022	91612-B1020	Bolt (For Transfer Case)Cover No.2
9418461200	94184-61200	Nut, Lock(For Power Steering Control Valve)

OEM	Part name	Category
47491-22020	Plug, Shoe Adjusting Hole (For Parking Brake)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
47491-30050	Plug, Hole(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
48198-30010	Cam, Rear Suspension Camber Adjust, No.2	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
48231-30560	Spring, Coil, Rear	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
48257-30040	Insulator, Rear Coil Spring	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
48258-30020	Insulator, Rear Coil Spring, Lower	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
48306-30140	Bumper Sub-Assy, Rear Spring	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
48452-30020	Plate, Rear Suspension Toe Adjust, No.2	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
48531-39825	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
48531-39826	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
48703-30904	Arm Sub-Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
48705-30052	Link Sub-Assy, Toe Control, Rh	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
48705-30060	Link Sub-Assy, Toe Control, Rh	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
48706-30030	Link Sub-Assy, Toe Control, Lh	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
48706-30042	Link Sub-Assy, Toe Control, Lh	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
48707-30904	Arm Sub-Assy, Rear Suspension, Lh	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
48725-30050	Bush, Lower Control Arm	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
48725-30060	Bush, Lower Control Arm	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
48725-30070	Bush, Lower Control Arm	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
48812-30150	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
48815-30180	Bush, Stabilizer(For Rear)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
48830-30010	Link Assy, Rear Stabilizer	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
48830-30020	Link Assy, Rear Stabilizer	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
48832-30030	Bracket, Rear Stabilizer Bar, No.1	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
90101-16017	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
90105-12077	New Genuine Part	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
90119-10355	Washer, Rear Shock Absorber Cushion, No.2	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
90179-10054	Nut, No.1 (For Center Support Bearing)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
90179-14025	Nut (For Front Lower Ball Joint Setting)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
90179-16011	Nut(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
90201-17004	New Genuine Part	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
90385-16004	Cushion, Front Shock Absorber	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
90561-16008	New Genuine Part	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
90948-03004	Retainer, Cushion, No.1(For Front Shock Absorber)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
90950-01258	Plug, Hole(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
90950-01478	Plug, Hole(For Front Suspension Lower Arm)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
91616-40820	Bolt, Engine Rear Cover Hinge Set	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
91616-61022	Bolt(for Transaxle & Engine Setting)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)
94184-61200	Nut, Lock(For Power Steering Control Valve)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )GS131,MS133,135)

Source: Public OEM parts-catalog data
Variants: 2 / 11
Category: 202
Collected: 2026-08-03
