MS135

Toyota CROWN-MAJESTA · 1987 · 5,710 parts · 202 categories
MS135 ×

← Back to categories

5,710 items

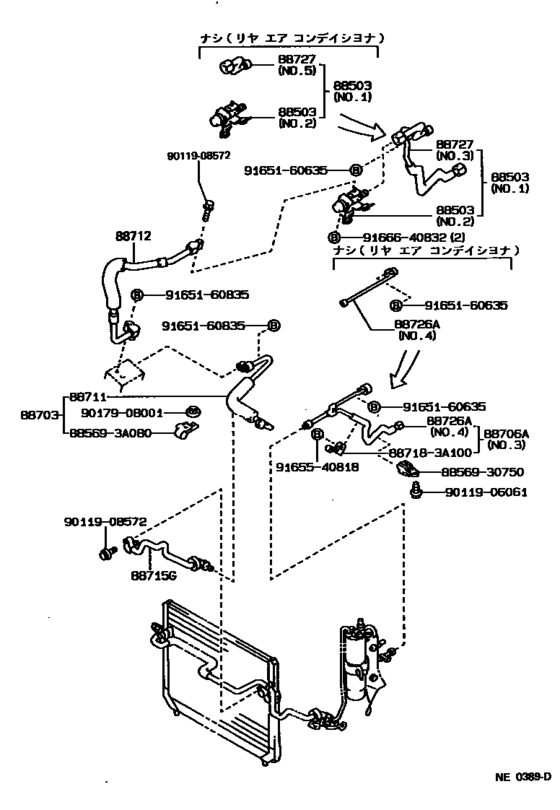

Heating & Air Conditioning - Cooler Piping ([09.1987 - ] REAR (8709- )MS13#..LHD..HT,SED..ROY,SAL,SALEX) 35
#OEMPart name
88703 88703-30300 Hose Sub-Assy, Discharge
88706 88706-30250 Tube Sub-Assy, Liquid, A
88706 88706-30260 Tube Sub-Assy, Liquid, A
88706 88706-30300 Tube Sub-Assy, Liquid, A
88706 88706-30310 Tube Sub-Assy, Liquid, A
88711 88711-30710 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-3A010 Hose, Cooler Refrigerant Suction, No.1
88712 88704-30290 Hose Sub-Assy, Suction
88715 88715-30350 Tube, Discharge, G
88726 88726-3A020 Pipe, Cooler Refrigerant Liquid, A
88726 88726-3A040 Pipe, Cooler Refrigerant Liquid, A
88726 88726-3A060 Pipe, Cooler Refrigerant Liquid, E - COOLER REFRIGERANT LIQUID, A
88726 88726-3A080 Pipe, Cooler Refrigerant Liquid, E
88726 88726-3A090 Pipe, Cooler Refrigerant Liquid, A
88726 88726-3A100 Pipe, Cooler Refrigerant Liquid, B
88726 88726-3A110 Pipe, Cooler Refrigerant Liquid, C
88726 88726-3A250 Pipe, Cooler Refrigerant Liquid, C
88727 88727-30720 Tube, Suction, No.2
88727 88727-30740 Tube, Suction, No.2
88727 88727-30760 Pipe, Cooler Refrigerant Suction, A - SUCTION, NO.2
88727 88727-30780 Pipe, Cooler Refrigerant Suction, A - SUCTION, NO.2
885693 88569-3A080 Clamp (for Cooler Relay)
887183 88718-3A100 Pipe, Cooler Refrigerant Suction, No.2
8856930750 88569-30750 Clamp (for Cooler Relay)
9011906061 90119-06061 New Genuine Part
9011908572 90119-08572 New Genuine Part
9011908572 91651-G0845 New Genuine Part
9017908001 90179-08001 New Genuine Part
9017908001 90179-08233 NUT
9165160635 91651-60635 BOLT
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9165540818 91655-40818 New Genuine Part
9165540818 91651-60816 BOLT
9166640832 91666-40832 New Genuine Part
9166640832 91661-60830 Bolt
