Search › Model › MS133
MS133

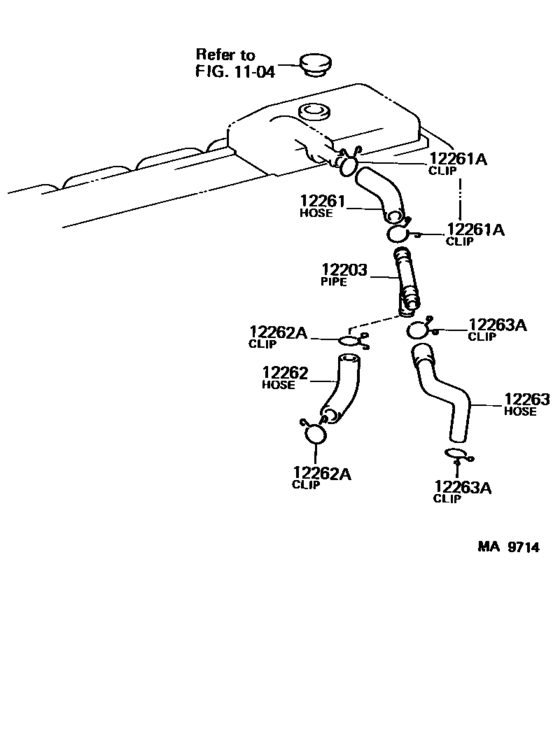

Ventilation Hose ([09.1987 - ] (8709- )5ME) 7
| # | OEM | Part name |
|---|---|---|
| 12203 | 90413-14013 | Pipe Sub-Assy, Ventilation |
| 12261 | 12261-41090 | Hose, Ventilation |
| 12261 | 90467-20002 | Clip(For Ventilation Tube) |
| 12262 | 12262-43030 | Hose, Ventilation, No.2 |
| 12263 | 12263-41050 | Hose, Ventilation, No.3 |
| 12263 | 90467-16035 | Clip Or Clamp(For Ventilation Hose) |
| 12263 | 90467-19122 | Clip Or Clamp(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 12261-41090 | Hose, Ventilation | Ventilation Hose ([09.1987 - ] (8709- )5ME) |
| 12262-43030 | Hose, Ventilation, No.2 | Ventilation Hose ([09.1987 - ] (8709- )5ME) |
| 12263-41050 | Hose, Ventilation, No.3 | Ventilation Hose ([09.1987 - ] (8709- )5ME) |
| 90413-14013 | Pipe Sub-Assy, Ventilation | Ventilation Hose ([09.1987 - ] (8709- )5ME) |
| 90467-16035 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([09.1987 - ] (8709- )5ME) |
| 90467-19122 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([09.1987 - ] (8709- )5ME) |
| 90467-20002 | Clip(For Ventilation Tube) | Ventilation Hose ([09.1987 - ] (8709- )5ME) |
