Search › Model › MS132

MS132

Toyota CROWN-MAJESTA · 1987 · 5,602 parts · 216 categories

5,602 items

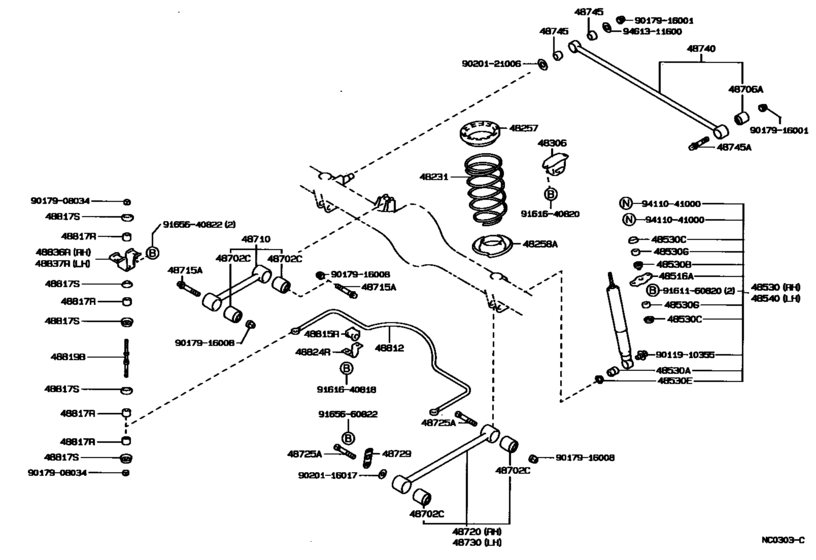

Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132) 50

#	OEM	Part name
48231	48231-30580	Spring, Coil, Rear
48257	48257-30020	Insulator, Rear Coil Spring
48258	48258-30010	Insulator, Rear Coil Spring, Lower
48306	48306-30120	Bumper Sub-Assy, Rear Spring
48516	48516-30030	Bracket, Rear Shock Absorber, Upper Rh
48530	48531-39785	Absorber Assy, Shock, Rear
48530	48531-39786	Absorber Assy, Shock, Rear
48530	90385-16004	Cushion, Front Shock Absorber
48530	90948-02007	Retainer, Steering Damper Cushion
48530	90948-02002	Retainer, Steering Damper Cushion
48530	90948-03004	Retainer, Cushion, No.1(For Front Shock Absorber)
48530	90948-01003	Rubber Cushion
48702	48702-30140	Bush Sub-Assy, Upper Control Arm
48706	48706-22010	Bush Sub-Assy, Rear Lateral Control Rod
48710	48710-30130	Arm Assy, Upper Control
48715	90105-16030	Bolt, Hexagon(For Upper Control Arm)
48720	48720-30200	Arm Assy, Lower Control, Rh
48720	48730-30020	Arm Assy, Lower Control, Lh
48725	90101-16023	Bolt(For Lower Control Arm)
48729	48729-30020	Plate, Lower Control Arm Bolt Lock
48740	48740-30040	Rod Assy, Rear Lateral Control
48740	48740-30050	Rod Assy, Rear Lateral Control
48745	90385-20048	Bush, Lateral Control Rod
48745	90105-16017	Bolt, Hexagon(For Lateral Control Rod)
48812	48812-30130	Bar, Stabilizer, Rear
48815	48815-14060	Bush, Stabilizer(For Rear)
48817	48817-10010	Cushion, Front Stabilizer
48817	90948-02024	Retainer, Cushion, No.1(For Front Stabilizer Bar)
48817	90948-02025	Retainer, Cushion, No.1(For Front Stabilizer Bar)
48819	48819-12010	Bolt(For Front Stabilizer)
48824	48824-22010	Bracket, Stabilizer, Front
48836	48836-30020	Bracket, Rear Stabilizer End, Rh
48837	48837-30020	Bracket, Rear Stabilizer End, Lh
9011910355	90119-10355	Washer, Rear Shock Absorber Cushion, No.2
9017908034	90179-08034	Nut(For Front Stabilizer Link)
9017916001	90179-16001	New Genuine Part
9017916008	90179-16008	New Genuine Part
9020116017	90201-16017	WASHER
9020121006	90201-21006	New Genuine Part
9161160820	91611-60820	Bolt(For Transaxle & Engine Setting)
9161160820	91611-G0820	Bolt
9161640818	91616-40818	Screw Or Bolt(for Valve Rocker Shaft Lock)
9161640818	91611-B0816	Bolt
9161640820	91616-40820	Bolt, Engine Rear Cover Hinge Set
9165640822	91656-40822	New Genuine Part
9165640822	91651-60818	BOLTWWASHER
9165660822	91656-60822	Bolt, Radiator Side Support Plate
9165660822	91651-B0820	Bolt, Radiator Side Support Plate
9411041000	94110-41000	Nut(For Steering Damper)
9461311600	94613-11600	New Genuine Part

OEM	Part name	Category
48231-30580	Spring, Coil, Rear	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
48257-30020	Insulator, Rear Coil Spring	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
48258-30010	Insulator, Rear Coil Spring, Lower	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
48306-30120	Bumper Sub-Assy, Rear Spring	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
48516-30030	Bracket, Rear Shock Absorber, Upper Rh	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
48531-39785	Absorber Assy, Shock, Rear	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
48531-39786	Absorber Assy, Shock, Rear	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
48702-30140	Bush Sub-Assy, Upper Control Arm	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
48706-22010	Bush Sub-Assy, Rear Lateral Control Rod	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
48710-30130	Arm Assy, Upper Control	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
48720-30200	Arm Assy, Lower Control, Rh	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
48729-30020	Plate, Lower Control Arm Bolt Lock	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
48730-30020	Arm Assy, Lower Control, Lh	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
48740-30040	Rod Assy, Rear Lateral Control	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
48740-30050	Rod Assy, Rear Lateral Control	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
48812-30130	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
48815-14060	Bush, Stabilizer(For Rear)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
48817-10010	Cushion, Front Stabilizer	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
48819-12010	Bolt(For Front Stabilizer)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
48824-22010	Bracket, Stabilizer, Front	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
48836-30020	Bracket, Rear Stabilizer End, Rh	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
48837-30020	Bracket, Rear Stabilizer End, Lh	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
90101-16023	Bolt(For Lower Control Arm)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
90105-16017	Bolt, Hexagon(For Lateral Control Rod)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
90105-16030	Bolt, Hexagon(For Upper Control Arm)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
90119-10355	Washer, Rear Shock Absorber Cushion, No.2	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
90179-08034	Nut(For Front Stabilizer Link)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
90179-16001	New Genuine Part	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
90179-16008	New Genuine Part	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
90201-16017	WASHER	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
90201-21006	New Genuine Part	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
90385-16004	Cushion, Front Shock Absorber	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
90385-20048	Bush, Lateral Control Rod	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
90948-01003	Rubber Cushion	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
90948-02002	Retainer, Steering Damper Cushion	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
90948-02007	Retainer, Steering Damper Cushion	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
90948-02024	Retainer, Cushion, No.1(For Front Stabilizer Bar)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
90948-02025	Retainer, Cushion, No.1(For Front Stabilizer Bar)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
90948-03004	Retainer, Cushion, No.1(For Front Shock Absorber)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
91611-60820	Bolt(For Transaxle & Engine Setting)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
91611-B0816	Bolt	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
91611-G0820	Bolt	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
91616-40818	Screw Or Bolt(for Valve Rocker Shaft Lock)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
91616-40820	Bolt, Engine Rear Cover Hinge Set	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
91651-60818	BOLTWWASHER	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
91651-B0820	Bolt, Radiator Side Support Plate	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
91656-40822	New Genuine Part	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
91656-60822	Bolt, Radiator Side Support Plate	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
94110-41000	Nut(For Steering Damper)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)
94613-11600	New Genuine Part	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )LS130,MS132)

Source: Public OEM parts-catalog data
Variants: 2 / 16
Category: 216
Collected: 2026-08-03
