Search › Model › MS132
MS132

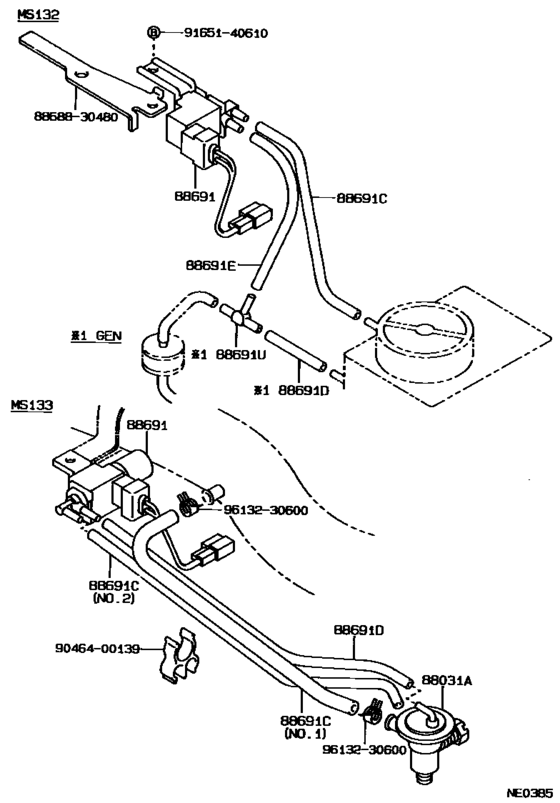

Heating & Air Conditioning - Vacuum Piping ([09.1987 - ] (8709- )MS132,133) 7
| # | OEM | Part name |
|---|---|---|
| 88691 | 88691-30490 | Valve, Magnet (For Idle Up Device) |
| 88691 | 90999-92002 | Air Hose (300 mm) |
| 8868830480 | 88688-30480 | Bracket, Idle Up Device, No.1 |
| 9046400139 | 90464-00139 | Clamp (For Idle Up Divice), No.1 |
| 9165140610 | 91651-40610 | RIVET |
| 9613230600 | 96132-30600 | Clip(For Actuator Hose) |
| 9613230600 | 96132-51100 | Clip (For Hose) |
| OEM | Part name | Category |
|---|---|---|
| 88688-30480 | Bracket, Idle Up Device, No.1 | Heating & Air Conditioning - Vacuum Piping ([09.1987 - ] (8709- )MS132,133) |
| 88691-30490 | Valve, Magnet (For Idle Up Device) | Heating & Air Conditioning - Vacuum Piping ([09.1987 - ] (8709- )MS132,133) |
| 90464-00139 | Clamp (For Idle Up Divice), No.1 | Heating & Air Conditioning - Vacuum Piping ([09.1987 - ] (8709- )MS132,133) |
| 90999-92002 | Air Hose (300 mm) | Heating & Air Conditioning - Vacuum Piping ([09.1987 - ] (8709- )MS132,133) |
| 91651-40610 | RIVET | Heating & Air Conditioning - Vacuum Piping ([09.1987 - ] (8709- )MS132,133) |
| 96132-30600 | Clip(For Actuator Hose) | Heating & Air Conditioning - Vacuum Piping ([09.1987 - ] (8709- )MS132,133) |
| 96132-51100 | Clip (For Hose) | Heating & Air Conditioning - Vacuum Piping ([09.1987 - ] (8709- )MS132,133) |
