Search › Model › MS132

MS132

Toyota CROWN-MAJESTA · 1987 · 5,602 parts · 216 categories
MS132 ×

← Back to categories

5,602 items

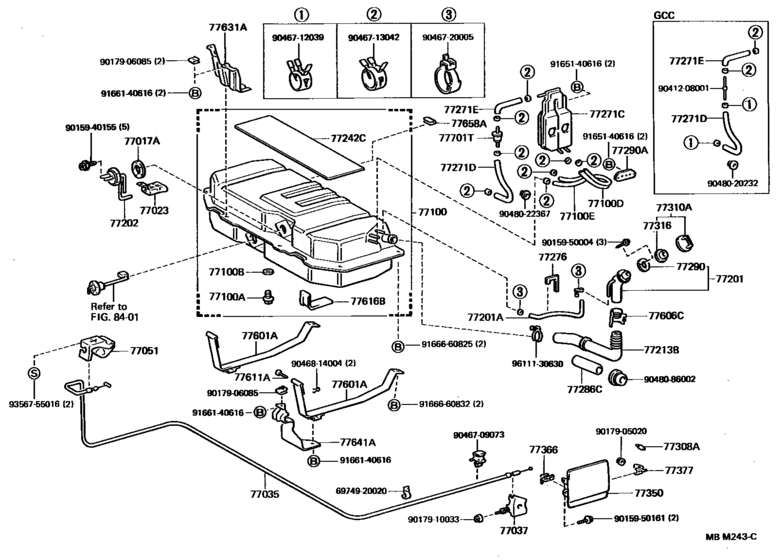

Fuel Tank & Tube ([09.1987 - 08.1989] (8709-8908)WG) 73
#OEMPart name
77017 83361-20030 Gasket, Fuel Tank Vent
77023 77023-22040 Filter Sub-Assy, Fuel Suction Tube
77035 77035-91704 Cable Sub-Assy, Fuel Lid Lock Control
77037 77037-91701 Lock Sub-Assy, Fuel Filler Opening Lid
77051 77051-30060-02 Lever Sub-Assy, Fuel Lid Open
77051 77051-30060-04 Lever Sub-Assy, Fuel Lid Open
77051 77051-30060-C0 Lever Sub-Assy, Fuel Lid Open
77051 77051-30060-06 Lever Sub-Assy, Fuel Lid Open
77100 77001-39235 Tank Assy, Fuel
77100 90341-20004 Plug(For Fuel Tank)
77100 90430-20007 Gasket(For Fuel Tank)
77100 95333-08080 Hose, Fuel, No.1(For Fuel Tank)
77100 95333-08100 Hose, Fuel, No.2 (For Main Tube, No.1)
77100 90445-14114 Hose, Fuel, No.2(For Fuel Tank)
77201 77201-91708 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-91709 Pipe Sub-Assy, Fuel Tank Inlet
77201 90445-22008 Hose, Fuel, No.1(For Fuel Tank)
77202 77203-91709 Tube Sub-Assy, Breather
77213 77019-91701 Hose, Fuel Tank To Filler Pipe
77213 77213-91704 Hose, Fuel Tank To Filler Pipe
77242 77242-91501 Packing, Fuel Tank Set, Upper
77271 77271-91701 Separator Sub-Assy, Fuel Evaporative
77271 95333-06060 Hose, Fuel
77271 95333-08020 Hose, Lpg Injector
77271 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77276 77276-91701 Trim, Hose Protector
77286 77286-91501 Protector, Fuel Tank Inlet Pipe
77290 77291-22030 Shield Assy, Fuel Tank Filler Pipe
77290 77290-91701 Grommet Assy, Fuel Hose
77308 90541-08003 Cushion(For Inspection Opening)
77310 77310-16011 Cap Assy, Fuel Tank
77310 77310-12140 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-91704 Lid Assy, Fuel Filler Opening
77350 77350-31010 Lid Assy, Fuel Filler Opening
77366 77360-24010 Retainer, Fuel Inlet Cushion
77377 77377-20030 Retainer, Fuel Filler Opening Lid Lock
77601 77602-91703 Band Sub-Assy, Fuel Tank, No.1
77606 77606-91701 Protector, Fuel Tank Filler Pipe
77611 90240-08020 Pin (For Fuel Tank Band)
77616 77616-91701 Packing, Fuel Tank Set
77631 77632-91702 Protector, Fuel Tank, Lower Center
77641 77641-91702 Protector, Fuel Tank, No.1
77658 77658-91702 Protector, Fuel Tank Edge, No.1
6974920020 69749-20020 Clamp, No.1(For Luggage Door Lock Control Cable)
9015940155 90159-40155 SCREW WWASHER
9015950004 90159-50004 New Genuine Part
9015950161 90159-50161 New Genuine Part
9017905020 90179-05020 NUT
9017905020 90179-05011 NUT
9017906085 90179-06085 New Genuine Part
9017910033 90179-10033 Nut (For Front Wiper Arm Setting)
9041208001 90412-08001 Way, 2(For Fuel Expansion Tank)
9046709073 90467-09073 CLIP
9046712039 90467-12039 Clip, No.1(For Idle-Up Hose)
9046712039 96132-51100 Clip (For Hose)
9046713042 90467-13042 Clip, No.2(For Idle-Up Hose)
9046720005 90467-20005 Clip(For Ventilation Hose No.2)
9046720005 96134-41900 Clip Or Clamp(For Ventilation Hose)
9046814004 90468-14004 Union, Auxiliary Fuel Band
9048020232 90480-20232 New Genuine Part
9048022367 90480-22367 New Genuine Part
9048086002 90480-86002 New Genuine Part
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9166140616 91661-40616 New Genuine Part
9166660825 91666-60825 New Genuine Part
9166660825 91661-60825 New Genuine Part
9166660832 91666-60832 New Genuine Part
9356755016 93567-55016 Screw
9356755016 93568-55016 Screw
9611130630 96111-30630 New Genuine Part
