Search › Model › MS132

MS132

Toyota CROWN-MAJESTA · 1987 · 5,602 parts · 216 categories

5,602 items

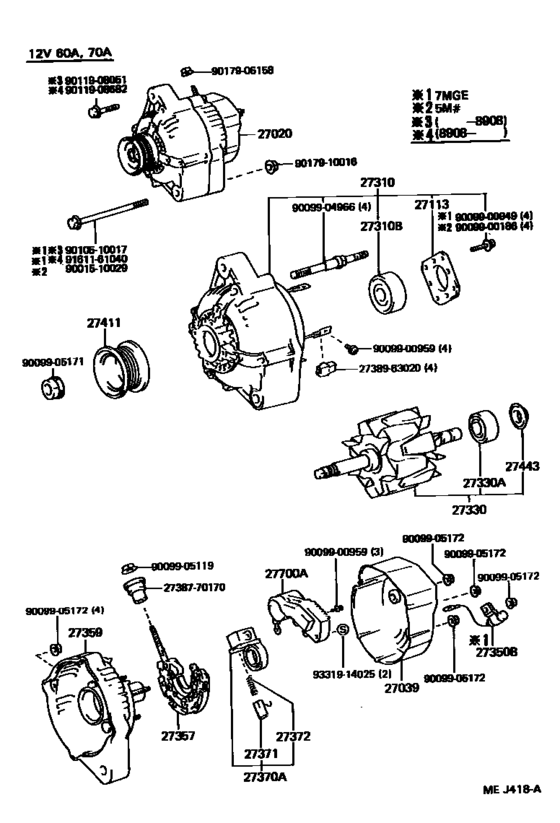

Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN) 46

#	OEM	Part name
27020	27060-43170	Alternator Assy
27020	27060-43180	Alternator Assy
27039	27039-72010	Cover, Alternator Rear End
27039	27039-15171	Cover, Alternator Rear End
27113	27312-70200	Plate, Bearing Retainer, Alternator
27310	27310-43132	Frame Assy, Drive End, Alternator
27310	27310-43180	Frame Assy, Drive End, Alternator
27310	90099-10177	Bearing(For Alternator Drive End Frame)
27330	27330-16161	Rotor Assy, Alternator
27330	27330-43132	Rotor Assy, Alternator
27330	90099-10140	Bearing(For Alternator Rotor)
27357	27357-63020	Holder, Alternator, W/rectifier
27359	27359-72130	Frame, Alternator Rectifier End
27359	27359-72131	Frame, Alternator Rectifier End
27359	27384-16380	Washer
27370	27370-63021	Holder Assy, Alternator Brush
27370	27370-35060	Holder Assy, Alternator Brush
27370	27370-72161	Holder Assy, Alternator Brush
27371	27371-63020	Brush, Alternator
27371	27371-70300	Brush, Alternator
27371	27371-72161	Brush, Alternator
27372	27372-72100	Spring, Alternator Brush
27372	27372-87501	Spring, Alternator Brush
27411	27411-43051	Pulley, Alternator
27443	27443-63020	Cover, Alternator Bearing
27700	27700-70030	Regulator Assy, Generator
2738770170	27387-70170	Insulator, Terminal
2738963020	27389-63020	Insulator, Terminal
9001510029	90015-10029	New Genuine Part
9009900186	90099-00186	New Genuine Part
9009900949	90099-00949	New Genuine Part
9009900959	90099-00959	New Genuine Part
9009904966	90099-04966	Bearing(for Alternator Rotor)
9009905119	90099-05119	New Genuine Part
9009905171	90099-05171	Nut(For Alternator Pulley)
9009905172	90099-05172	New Genuine Part
9010510017	90105-10017	Bolt
9011908051	90119-08051	New Genuine Part
9011908051	90129-08010	New Genuine Part
9011908682	90119-08682	New Genuine Part
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9017910016	90179-10016	Nut(For Counter Gear Shaft)
9017910016	90179-10132	Nut
9161161040	91611-61040	Bolt(For Transaxle Case & Engine Setting)
9161161040	91612-61040	Bolt(For Transmission Case & Engine Setting)
9331914025	93319-14025	Screw W Washer

OEM	Part name	Category
27039-15171	Cover, Alternator Rear End	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
27039-72010	Cover, Alternator Rear End	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
27060-43170	Alternator Assy	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
27060-43180	Alternator Assy	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
27310-43132	Frame Assy, Drive End, Alternator	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
27310-43180	Frame Assy, Drive End, Alternator	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
27312-70200	Plate, Bearing Retainer, Alternator	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
27330-16161	Rotor Assy, Alternator	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
27330-43132	Rotor Assy, Alternator	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
27357-63020	Holder, Alternator, W/rectifier	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
27359-72130	Frame, Alternator Rectifier End	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
27359-72131	Frame, Alternator Rectifier End	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
27370-35060	Holder Assy, Alternator Brush	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
27370-63021	Holder Assy, Alternator Brush	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
27370-72161	Holder Assy, Alternator Brush	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
27371-63020	Brush, Alternator	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
27371-70300	Brush, Alternator	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
27371-72161	Brush, Alternator	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
27372-72100	Spring, Alternator Brush	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
27372-87501	Spring, Alternator Brush	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
27384-16380	Washer	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
27387-70170	Insulator, Terminal	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
27389-63020	Insulator, Terminal	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
27411-43051	Pulley, Alternator	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
27443-63020	Cover, Alternator Bearing	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
27700-70030	Regulator Assy, Generator	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
90015-10029	New Genuine Part	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
90099-00186	New Genuine Part	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
90099-00949	New Genuine Part	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
90099-00959	New Genuine Part	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
90099-04966	Bearing(for Alternator Rotor)	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
90099-05119	New Genuine Part	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
90099-05171	Nut(For Alternator Pulley)	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
90099-05172	New Genuine Part	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
90099-10140	Bearing(For Alternator Rotor)	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
90099-10177	Bearing(For Alternator Drive End Frame)	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
90105-10017	Bolt	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
90119-08051	New Genuine Part	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
90119-08682	New Genuine Part	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
90129-08010	New Genuine Part	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
90179-10016	Nut(For Counter Gear Shaft)	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
90179-10132	Nut	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
91611-61040	Bolt(For Transaxle Case & Engine Setting)	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
91612-61040	Bolt(For Transmission Case & Engine Setting)	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
93319-14025	Screw W Washer	Alternator ([09.1988 - 08.1989] (8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809- )7MGE..GEN ; (8908- )5M ; (8908 - )5ME..GEN)
