MS130

Toyota CROWN-MAJESTA · 1987 · 5,039 parts · 192 categories

5,039 items

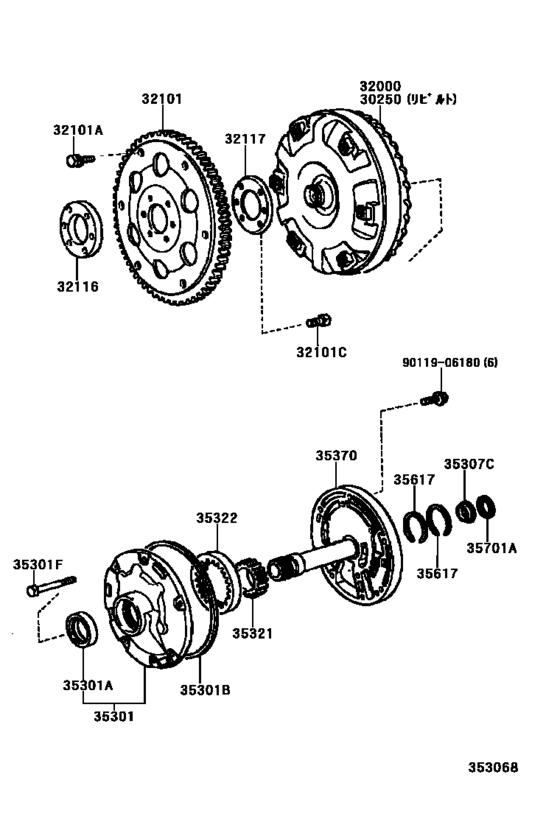

Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] (8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL ,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) 22

#	OEM	Part name
30250	30250-14091	Converter Assy, Torque, Rebuilt
32000	32000-14091	Converter Assy, Torque
32101	32101-30060	Gear Sub-Assy, Drive Plate & Ring
32101	32101-30061	Gear Sub-Assy, Drive Plate & Ring
32101	90109-08113	Bolt(For Drive Plate & Torque Converter Setting)
32101	90119-08498	Bolt(For Drive Plate & Torque Converter Setting)
32101	90109-10037	Bolt(For Drive Plate & Torque Converter Setting)
32116	32116-30011	Spacer, Drive Plate, Front
32117	32117-30011	Spacer, Drive Plate, Rear
35301	35301-30030	Body Sub-Assy, Front Oil Pump
35301	90311-38020	Seal, Oil (For Front Oil Pump)
35301	90301-99010	Ring, O (For Front Oil Pump Body)
35301	90105-08137	Bolt (For Front Oil Pump Setting)
35307	35789-22010	Race, Thrust Bearing(For Overdrive Planetary Gear)
35321	35321-22010	Gear Sub-Assy, Front Oil Pump Drive
35321	35321-22090	Gear, Front Oil Pump Drive
35322	35322-22010	Gear, Front Oil Pump Driven
35322	35322-22090	Gear, Front Oil Pump Driven
35370	35370-22031	Shaft Sub-Assy, Stator
35617	35617-16010	Ring, Oil Seal (For Overdrive Case)
35701	90374-23012	Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)
9011906180	90119-06180	Bolt (For Stator Shaft)

OEM	Part name	Category
30250-14091	Converter Assy, Torque, Rebuilt	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] (8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL ,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)
32000-14091	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] (8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL ,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)
32101-30060	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] (8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL ,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)
32101-30061	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] (8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL ,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)
32116-30011	Spacer, Drive Plate, Front	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] (8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL ,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)
32117-30011	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] (8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL ,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)
35301-30030	Body Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] (8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL ,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)
35321-22010	Gear Sub-Assy, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] (8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL ,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)
35321-22090	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] (8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL ,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)
35322-22010	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] (8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL ,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)
35322-22090	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] (8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL ,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)
35370-22031	Shaft Sub-Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] (8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL ,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)
35617-16010	Ring, Oil Seal (For Overdrive Case)	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] (8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL ,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)
35789-22010	Race, Thrust Bearing(For Overdrive Planetary Gear)	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] (8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL ,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)
90105-08137	Bolt (For Front Oil Pump Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] (8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL ,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)
90109-08113	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] (8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL ,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)
90109-10037	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] (8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL ,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)
90119-06180	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] (8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL ,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)
90119-08498	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] (8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL ,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)
90301-99010	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] (8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL ,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)
90311-38020	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] (8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL ,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)
90374-23012	Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] (8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL ,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)
