Search › Model › MS130

MS130

Toyota CROWN-MAJESTA · 1987 · 5,039 parts · 192 categories
MS130 ×

← Back to categories

5,039 items

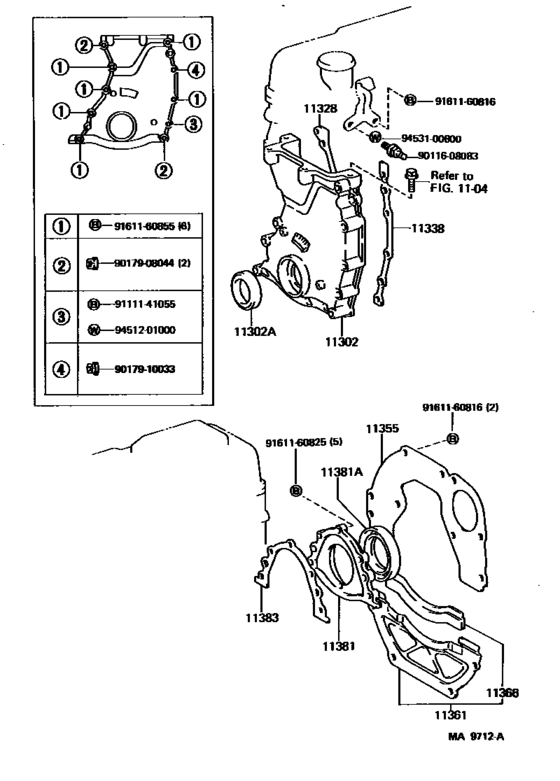

Timing Gear Cover & Rear End Plate ([09.1987 - 08.1989] (8709-8908)MP) 24
#OEMPart name
11302 11321-41030 Cover Sub-Assy, Timing Chain Or Belt
11302 90311-45069 Seal, Oil(For Timing Chain Or Belt Cover)
11302 90311-45002 Seal, Oil(For Timing Chain Or Belt Cover)
11328 11328-41010 Gasket, Timing Gear Or Chain Cover
11328 11328-43020 Gasket, Timing Gear Or Chain Cover
11338 11338-41010 Gasket, Timing Chain Cover, No.2
11338 11329-43030 Gasket, Timing Chain Cover, No.2
11355 11355-41010 Plate, Rear End
11361 11361-45010 Cover, Flywheel Housing Under
11366 31131-30010 Seal, Flywheel Housing Under Cover Dust
11381 11381-43010 Retainer, Engine Rear Oil Seal
11381 90311-80001 Seal, Engine Rear Oil
11383 11383-41010 Gasket, Engine Rear Oil Seal Retainer
9011608083 90116-08083 New Genuine Part
9017908044 90179-08044 NUT
9017910033 90179-10033 Nut (For Front Wiper Arm Setting)
9111141055 91111-41055 Bolt(For Clutch Release Cylinder Setting)
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-B0816 Bolt
9161160825 91611-60825 Bolt(For Head To Camshaft Bearing Cap)
9161160825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9161160855 91611-60855 Bolt(For Rocker Support Set)
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
9453100800 94531-00800 Washer (For Transfer Shift Outer Lever)
