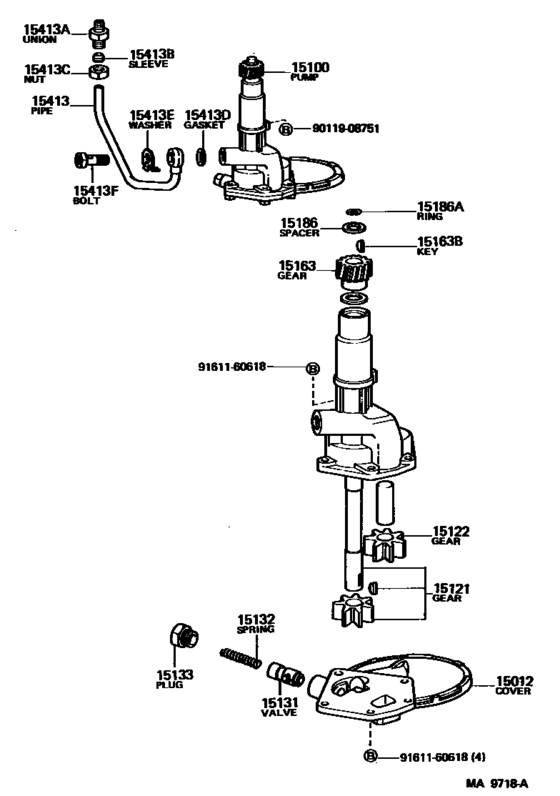

| 15012-43060 |
Cover Sub-Assy, Oil Pump |
Engine Oil Pump ([09.1987 - 08.1989] (8709-8908)MP) |
| 15100-43070 |
Pump Assy, Oil |
Engine Oil Pump ([09.1987 - 08.1989] (8709-8908)MP) |
| 15102-43050 |
Gear, Oil Pump Drive |
Engine Oil Pump ([09.1987 - 08.1989] (8709-8908)MP) |
| 15122-43050 |
Gear, Oil Pump Driven |
Engine Oil Pump ([09.1987 - 08.1989] (8709-8908)MP) |
| 15131-24010 |
Valve, Oil Pump Relief |
Engine Oil Pump ([09.1987 - 08.1989] (8709-8908)MP) |
| 15132-46010 |
Spring, Oil Pump Relief Valve |
Engine Oil Pump ([09.1987 - 08.1989] (8709-8908)MP) |
| 15133-24010 |
Plug, Oil Pump Relief Valve |
Engine Oil Pump ([09.1987 - 08.1989] (8709-8908)MP) |
| 15163-45020 |
Gear, Oil Pump Drive Shaft |
Engine Oil Pump ([09.1987 - 08.1989] (8709-8908)MP) |
| 15186-41010 |
Spacer(For Oil Pump Drive Shaft Gear) |
Engine Oil Pump ([09.1987 - 08.1989] (8709-8908)MP) |
| 15403-43010 |
Pipe, Oil Pump Outlet |
Engine Oil Pump ([09.1987 - 08.1989] (8709-8908)MP) |
| 15454-41011 |
Washer, Lock(For Oil Pump Outlet Pipe) |
Engine Oil Pump ([09.1987 - 08.1989] (8709-8908)MP) |
| 90119-08751 |
Bolt(For Head To Camshaft Bearing Cap) |
Engine Oil Pump ([09.1987 - 08.1989] (8709-8908)MP) |
| 90170-20006 |
Nut, Union(For Oil Pump Outlet Pipe) |
Engine Oil Pump ([09.1987 - 08.1989] (8709-8908)MP) |
| 90280-03005 |
Key, Oil Pump Drive Shaft |
Engine Oil Pump ([09.1987 - 08.1989] (8709-8908)MP) |
| 90401-18014 |
Bolt, Union(For Oil Pump Outlet Pipe) |
Engine Oil Pump ([09.1987 - 08.1989] (8709-8908)MP) |
| 90404-20013 |
Union(For Oil Pump Outlet Pipe) |
Engine Oil Pump ([09.1987 - 08.1989] (8709-8908)MP) |
| 90410-14004 |
Sleeve, Ball(For Oil Pump Outlet Pipe) |
Engine Oil Pump ([09.1987 - 08.1989] (8709-8908)MP) |
| 90430-18012 |
Gasket(For Oil Pump Outlet Pipe) |
Engine Oil Pump ([09.1987 - 08.1989] (8709-8908)MP) |
| 90520-11031 |
Ring, Shaft Snap(For Oil Pump Drive Shaft Gear) |
Engine Oil Pump ([09.1987 - 08.1989] (8709-8908)MP) |
| 91611-60618 |
Bolt(For Oil Receiver Pipe) |
Engine Oil Pump ([09.1987 - 08.1989] (8709-8908)MP) |
