MS130

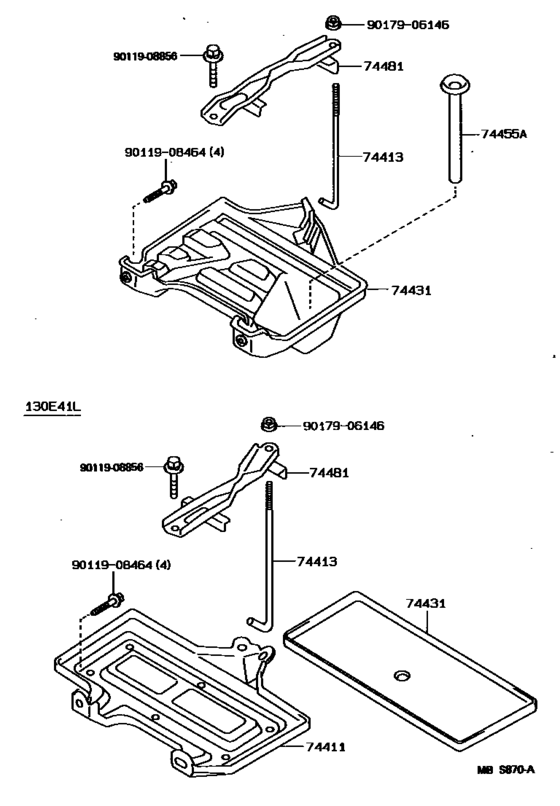

Battery Carrier ([09.1987 - ] (8709- )) 6
| # | OEM | Part name |
|---|---|---|
| 74413 | 74451-30090 | Bolt, Battery Clamp |
| 74431 | 74431-30090 | Carrier, Battery |
| 74481 | 74404-30220 | Clamp Sub-Assy, Battery |
| 9011908464 | 90119-08464 | Bolt, W/washer(For Side Gate, Rh) |
| 9011908856 | 90119-08856 | BOLT W-WASHER |
| 9017906146 | 90179-06146 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 74404-30220 | Clamp Sub-Assy, Battery | Battery Carrier ([09.1987 - ] (8709- )) |
| 74431-30090 | Carrier, Battery | Battery Carrier ([09.1987 - ] (8709- )) |
| 74451-30090 | Bolt, Battery Clamp | Battery Carrier ([09.1987 - ] (8709- )) |
| 90119-08464 | Bolt, W/washer(For Side Gate, Rh) | Battery Carrier ([09.1987 - ] (8709- )) |
| 90119-08856 | BOLT W-WASHER | Battery Carrier ([09.1987 - ] (8709- )) |
| 90179-06146 | Nut | Battery Carrier ([09.1987 - ] (8709- )) |
