Search › Model › MS125
MS125

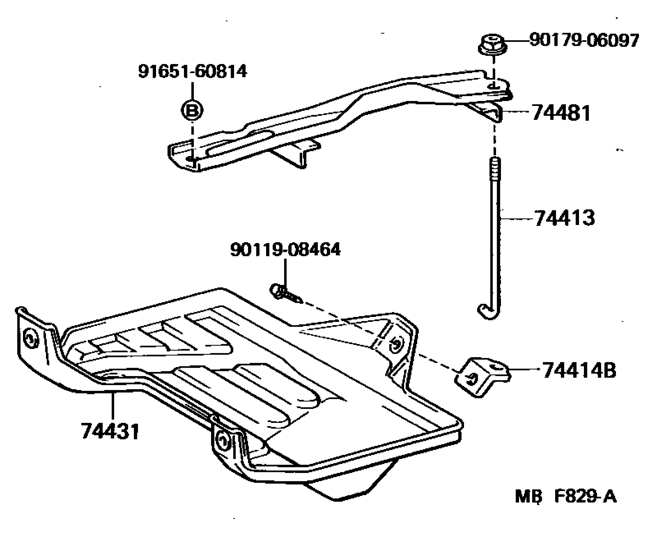

Battery Carrier ([08.1983 - ] (8308- )) 12
| # | OEM | Part name |
|---|---|---|
| 74413 | 74451-30070 | Bolt, Battery Clamp |
| 74413 | 74451-30090 | Bolt, Battery Clamp |
| 74414 | 74414-30030 | Reinforcement, Battery Bracket |
| 74431 | 74410-30010 | Tray, Battery |
| 74431 | 74431-30060 | Tray, Battery |
| 74481 | 74404-30200 | Clamp, Battery Hold Down |
| 74481 | 74404-30201 | Clamp, Battery Hold Down |
| 9011908464 | 90119-08464 | Bolt, W/washer(For Side Gate, Rh) |
| 9017906097 | 90179-06097 | Clip(For Front Bumper), No.1 |
| 9017906097 | 90179-06206 | Nut |
| 9165160814 | 91651-60814 | Clamp Or Clip, Hose(for Radiator Outlet No.1) |
| 9165160814 | 91651-B0814 | Bolt with washer |
| OEM | Part name | Category |
|---|---|---|
| 74404-30200 | Clamp, Battery Hold Down | Battery Carrier ([08.1983 - ] (8308- )) |
| 74404-30201 | Clamp, Battery Hold Down | Battery Carrier ([08.1983 - ] (8308- )) |
| 74410-30010 | Tray, Battery | Battery Carrier ([08.1983 - ] (8308- )) |
| 74414-30030 | Reinforcement, Battery Bracket | Battery Carrier ([08.1983 - ] (8308- )) |
| 74431-30060 | Tray, Battery | Battery Carrier ([08.1983 - ] (8308- )) |
| 74451-30070 | Bolt, Battery Clamp | Battery Carrier ([08.1983 - ] (8308- )) |
| 74451-30090 | Bolt, Battery Clamp | Battery Carrier ([08.1983 - ] (8308- )) |
| 90119-08464 | Bolt, W/washer(For Side Gate, Rh) | Battery Carrier ([08.1983 - ] (8308- )) |
| 90179-06097 | Clip(For Front Bumper), No.1 | Battery Carrier ([08.1983 - ] (8308- )) |
| 90179-06206 | Nut | Battery Carrier ([08.1983 - ] (8308- )) |
| 91651-60814 | Clamp Or Clip, Hose(for Radiator Outlet No.1) | Battery Carrier ([08.1983 - ] (8308- )) |
| 91651-B0814 | Bolt with washer | Battery Carrier ([08.1983 - ] (8308- )) |
