MS122

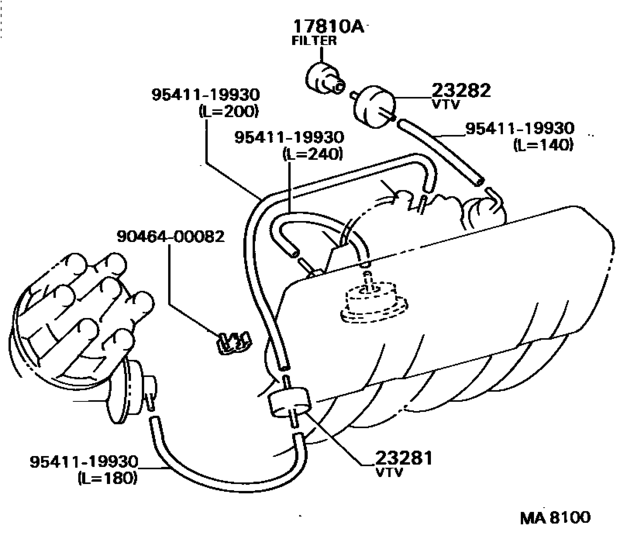

Vacuum Piping ([09.1985 - ] (8509- )5ME) 6
| # | OEM | Part name |
|---|---|---|
| 17810 | 90925-06006 | Filter Assy, Air |
| 23281 | 90925-01095 | Valve, Vacuum Transmitting, No.1 |
| 23282 | 90925-01021 | Valve, Vacuum Transmitting, No.1 |
| 9046400082 | 90464-00082 | Clamp(For Resistive Cord) |
| 9541119930 | 95411-19930 | Hose(For Carburetor To Manifold) |
| 9541119930 | 90999-92002 | Air Hose (300 mm) |
| OEM | Part name | Category |
|---|---|---|
| 90464-00082 | Clamp(For Resistive Cord) | Vacuum Piping ([09.1985 - ] (8509- )5ME) |
| 90925-01021 | Valve, Vacuum Transmitting, No.1 | Vacuum Piping ([09.1985 - ] (8509- )5ME) |
| 90925-01095 | Valve, Vacuum Transmitting, No.1 | Vacuum Piping ([09.1985 - ] (8509- )5ME) |
| 90925-06006 | Filter Assy, Air | Vacuum Piping ([09.1985 - ] (8509- )5ME) |
| 90999-92002 | Air Hose (300 mm) | Vacuum Piping ([09.1985 - ] (8509- )5ME) |
| 95411-19930 | Hose(For Carburetor To Manifold) | Vacuum Piping ([09.1985 - ] (8509- )5ME) |
