Search › Model › MS122

MS122

Toyota CROWN-MAJESTA · 1983 · 4,981 parts · 181 categories

4,981 items

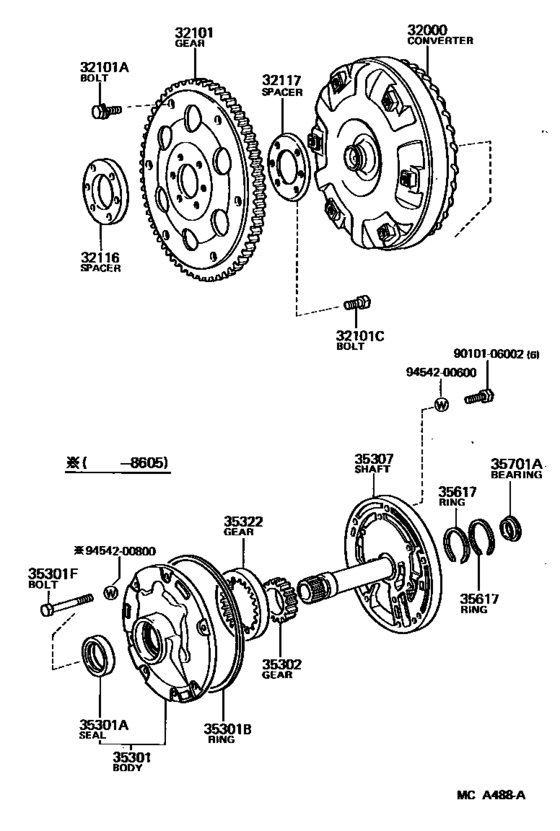

Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM) 32

#	OEM	Part name
32000	32000-14071	Converter Assy, Torque
32101	32101-30060	Gear Sub-Assy, Drive Plate & Ring
32101	32101-30061	Gear Sub-Assy, Drive Plate & Ring
32101	90109-08113	Bolt(For Drive Plate & Torque Converter Setting)
32101	90119-08498	Bolt(For Drive Plate & Torque Converter Setting)
32101	90109-10037	Bolt(For Drive Plate & Torque Converter Setting)
32116	32116-30011	Spacer, Drive Plate, Front
32117	32117-30011	Spacer, Drive Plate, Rear
35301	35301-14010	Body Sub-Assy, Front Oil Pump
35301	90311-38020	Seal, Oil (For Front Oil Pump)
35301	90301-99010	Ring, O (For Front Oil Pump Body)
35301	90101-08042	Bolt (For Front Oil Pump Setting)
35301	90105-08137	Bolt (For Front Oil Pump Setting)
35302	35321-14010	Gear Sub-Assy, Front Oil Pump Drive
35302	35321-22020	Gear Sub-Assy, Front Oil Pump Drive
35302	35321-22030	Gear Sub-Assy, Front Oil Pump Drive
35302	35321-22040	Gear Sub-Assy, Front Oil Pump Drive
35302	35321-22050	Gear Sub-Assy, Front Oil Pump Drive
35302	35321-22060	Gear Sub-Assy, Front Oil Pump Drive
35307	35370-14012	Shaft Sub-Assy, Stator
35322	35322-14010	Gear, Front Oil Pump Driven
35322	35322-22020	Gear, Front Oil Pump Driven
35322	35322-22030	Gear, Front Oil Pump Driven
35322	35322-22040	Gear, Front Oil Pump Driven
35322	35322-22050	Gear, Front Oil Pump Driven
35322	35322-22060	Gear, Front Oil Pump Driven
35617	35617-16010	Ring, Oil Seal (For Overdrive Case)
35701	90374-25003	Bearing, Thrust (For Input Shaft Front)
9010106002	90101-06002	Bolt (For Stator Shaft)
9010106002	90119-06180	Bolt (For Stator Shaft)
9454200600	94542-00600	New Genuine Part
9454200800	94542-00800	New Genuine Part

OEM	Part name	Category
32000-14071	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
32101-30060	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
32101-30061	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
32116-30011	Spacer, Drive Plate, Front	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
32117-30011	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
35301-14010	Body Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
35321-14010	Gear Sub-Assy, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
35321-22020	Gear Sub-Assy, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
35321-22030	Gear Sub-Assy, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
35321-22040	Gear Sub-Assy, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
35321-22050	Gear Sub-Assy, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
35321-22060	Gear Sub-Assy, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
35322-14010	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
35322-22020	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
35322-22030	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
35322-22040	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
35322-22050	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
35322-22060	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
35370-14012	Shaft Sub-Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
35617-16010	Ring, Oil Seal (For Overdrive Case)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
90101-06002	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
90101-08042	Bolt (For Front Oil Pump Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
90105-08137	Bolt (For Front Oil Pump Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
90109-08113	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
90109-10037	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
90119-06180	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
90119-08498	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
90301-99010	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
90311-38020	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
90374-25003	Bearing, Thrust (For Input Shaft Front)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
94542-00600	New Genuine Part	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
94542-00800	New Genuine Part	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )MS122,123..ATM)
