MS122

Toyota CROWN-MAJESTA · 1983 · 4,981 parts · 181 categories

4,981 items

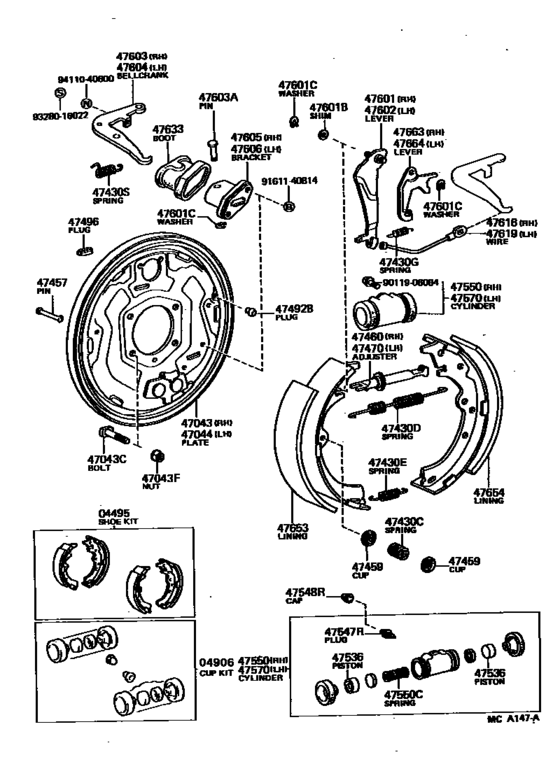

Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD) 53

#	OEM	Part name
4495	04495-30050	Shoe Kit, Rear Brake
4495	04495-28071	Shoe Kit, Rear Brake
4906	04906-30080	Cup Kit, Rear Wheel Cylinder
47043	47043-30110	Plate Sub-Assy, Brake Backing, Rear Rh
47043	42184-30021	Bolt(For Backing Plate To Rear Axle Housing Setting)
47043	90179-10030	Nut(For Parking Brake Plate To Rear Axle Housing)
47044	47044-30120	Plate Sub-Assy, Brake Backing, Rear Lh
47430	90501-20756	Spring(For Front Brake Shoe Hold Down)
47430	90506-23003	Spring, Tension(For Rear Brake Shoe Return)
47430	90506-20005	Spring, Tension(For Rear Brake Shoe Return)
47430	90506-12480	Spring, Tension(For Rear Brake Automatic Adjust Lever)
47430	90506-18004	Spring, Tension(For Parking Brake Shoe Strut)
47457	47447-30020	Pin, Shoe Hold Down Spring(For Front Brake)
47459	47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)
47460	47061-30020	Adjuster Assy, Shoe, Rh(For Rear Brake)
47470	47062-30020	Adjuster Assy, Shoe, Rh(For Rear Brake)
47492	47492-28010	Plug, Shoe Inspection(For Rear Brake)
47492	47492-06010	Plug, Shoe Inspection(For Rear Brake)
47496	47491-20011	Plug, Hole(For Rear Brake)
47536	47051-22040	Piston, Wheel Brake Cylinder(For Rear Brake)
47547	47547-20030	Plug, Bleeder(For Power Steering By-Pass Valve)
47548	31478-30010	Bleeder Plug Cap
47550	47550-30120	Cylinder Assy, Rear Wheel Brake
47550	47550-39215	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47509-22010	Spring, Compression(For Rear Wheel Brake Cylinder)
47601	47601-30020	Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)
47601	90564-09001	Shim, Rear Parking Brake Shoe Lever
47601	90564-09002	Shim(For Parking Brake Shoe)
47601	90564-09003	Shim(For Parking Brake Shoe)
47601	90564-09184	Shim(For Parking Brake Shoe)
47601	90564-09185	Shim(For Parking Brake Shoe)
47601	90564-09186	Shim(For Parking Brake Shoe)
47601	90213-06013	Washer, Type C(For Parking Brake Shoe)
47601	90213-07010	Washer, Type C(For Parking Brake Shoe)
47602	47602-30020	Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)
47603	47624-30080	Bellcrank Sub-Assy, Parking Brake, Rh(For Rear Brake)
47603	90249-08068	Pin, W/hole(For Rear Brake)
47604	47627-30030	Bellcrank Sub-Assy, Parking Brake, Lh (For Rear Brake)
47605	47628-30040	Bracket Sub-Assy, Bell Crank, Rh (For Rear Brake)
47605	47628-30070	Bracket, Rear Brake Bellcrank, Rh
47606	47629-30030	Bracket Sub-Assy, Bell Crank, Lh (For Rear Brake)
47606	47629-30060	Bracket, Rear Brake Bellcrank, Lh
47616	47616-30040	Wire, Parking Brake, Rh
47633	47633-30030	Boot, Parking Brake Bellcrank
47633	47634-30020	Boot, Parking Brake Bellcrank
47653	47655-30050	Lining, Rear Brake Shoe(For Front Or Upper)
47663	47643-30010	Lever, Rear Brake Automatic Adjust
47664	47644-30010	Lever, Rear Brake Automatic Adjust, Rh
9011906084	90119-06084	Bolt(For Rear Wheel Cylinder)
9161140814	91611-40814	Bolt(For Manual Transmission Oil Pan Setting)
9161140814	91611-60814	Bolt
9328016022	93280-16022	SCREW
9411040600	94110-40600	Nut, Rock

OEM	Part name	Category
04495-28071	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
04495-30050	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
04906-30080	Cup Kit, Rear Wheel Cylinder	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
31478-30010	Bleeder Plug Cap	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
42184-30021	Bolt(For Backing Plate To Rear Axle Housing Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47043-30110	Plate Sub-Assy, Brake Backing, Rear Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47044-30120	Plate Sub-Assy, Brake Backing, Rear Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47051-22040	Piston, Wheel Brake Cylinder(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47061-30020	Adjuster Assy, Shoe, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47062-30020	Adjuster Assy, Shoe, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47447-30020	Pin, Shoe Hold Down Spring(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47491-20011	Plug, Hole(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47492-06010	Plug, Shoe Inspection(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47492-28010	Plug, Shoe Inspection(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47509-22010	Spring, Compression(For Rear Wheel Brake Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47547-20030	Plug, Bleeder(For Power Steering By-Pass Valve)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47550-30120	Cylinder Assy, Rear Wheel Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47550-39215	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47601-30020	Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47602-30020	Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47616-30040	Wire, Parking Brake, Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47624-30080	Bellcrank Sub-Assy, Parking Brake, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47627-30030	Bellcrank Sub-Assy, Parking Brake, Lh (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47628-30040	Bracket Sub-Assy, Bell Crank, Rh (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47628-30070	Bracket, Rear Brake Bellcrank, Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47629-30030	Bracket Sub-Assy, Bell Crank, Lh (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47629-30060	Bracket, Rear Brake Bellcrank, Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47633-30030	Boot, Parking Brake Bellcrank	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47634-30020	Boot, Parking Brake Bellcrank	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47643-30010	Lever, Rear Brake Automatic Adjust	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47644-30010	Lever, Rear Brake Automatic Adjust, Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
47655-30050	Lining, Rear Brake Shoe(For Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
90119-06084	Bolt(For Rear Wheel Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
90179-10030	Nut(For Parking Brake Plate To Rear Axle Housing)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
90213-06013	Washer, Type C(For Parking Brake Shoe)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
90213-07010	Washer, Type C(For Parking Brake Shoe)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
90249-08068	Pin, W/hole(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
90501-20756	Spring(For Front Brake Shoe Hold Down)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
90506-12480	Spring, Tension(For Rear Brake Automatic Adjust Lever)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
90506-18004	Spring, Tension(For Parking Brake Shoe Strut)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
90506-20005	Spring, Tension(For Rear Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
90506-23003	Spring, Tension(For Rear Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
90564-09001	Shim, Rear Parking Brake Shoe Lever	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
90564-09002	Shim(For Parking Brake Shoe)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
90564-09003	Shim(For Parking Brake Shoe)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
90564-09184	Shim(For Parking Brake Shoe)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
90564-09185	Shim(For Parking Brake Shoe)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
90564-09186	Shim(For Parking Brake Shoe)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
91611-40814	Bolt(For Manual Transmission Oil Pan Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
91611-60814	Bolt	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
93280-16022	SCREW	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
94110-40600	Nut, Rock	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1983 - ] (8308- )LS120,MS122,YS120..DLX,SAL,STD)
