MS122

Toyota CROWN-MAJESTA · 1983 · 4,981 parts · 181 categories

4,981 items

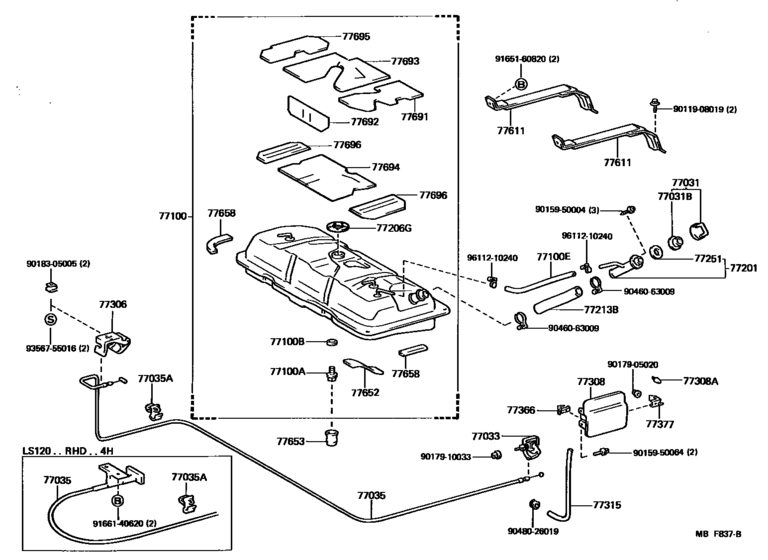

Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED) 53

#	OEM	Part name
77031	77310-12100	Cap Assy, Fuel Tank
77031	77316-12050	Gasket (For Fuel Tank Cap)
77033	77037-14010	Lock Sub-Assy, Fuel Tank Cap
77033	77037-90K00	Lock Sub-Assy, Fuel Tank Cap
77035	69749-30030	Clamp, No.2(For Luggage Door Lock Control Cable)
77100	77001-39185	Tank Assy, Fuel
77100	90105-12018	Plug(For Fuel Tank)
77100	90430-12245	Gasket(For Fuel Tank)
77100	90445-22010	Hose, Fuel, No.2(For Fuel Tank)
77100	90445-22002	Hose, Fuel, No.1(For Fuel Tank)
77201	77201-30140	Pipe Sub-Assy, Fuel Tank Inlet
77206	77169-14020	Gasket, Fuel Tank Vent
77213	77213-30050	Hose, Fuel Tank To Filler Pipe
77251	77291-12010	Shield, Fuel Tank, Inlet, No.1
77306	77051-30050-02	Lever Sub-Assy, Fuel Lid Lock Open
77306	77051-30050-04	Lever Sub-Assy, Fuel Lid Lock Open
77306	77051-30050-05	Lever Sub-Assy, Fuel Lid Lock Open
77306	77051-30050-06	Lever Sub-Assy, Fuel Lid Lock Open
77306	77051-30050-12	Lever Sub-Assy, Fuel Lid Lock Open
77308	77350-30120	Cover Sub-Assy, Fuel Inlet Box
77308	90541-08003	Cushion(For Inspection Opening)
77308	90541-08011	Cushion(For Inspection Opening)
77315	90446-09011	Hose, Fuel Filler Opening
77366	77360-24010	Retainer, Fuel Inlet Cushion
77377	77377-24010	Retainer, Fuel Filler Opening Lid Lock
77652	77651-30060	Cushion, Fuel Tank, No.1
77652	77651-30070	Cushion, Fuel Tank, No.1
77653	77292-30020	Shield, Fuel Tank Drain Plug
77658	77658-30030	Moulding, Fuel Tank Edge
77691	77691-30020	Sheet, Fuel Tank Silencer, Upper No.1
77692	77692-30020	Sheet, Fuel Tank Silencer, Lower No.1
77693	77693-30020	Sheet, Fuel Tank Silencer, Upper No.2
77694	77694-30020	Sheet, Fuel Tank Silencer, Lower No.2
77695	77695-30020	Sheet, Fuel Tank Silencer, Upper No.3
77696	77696-30020	Sheet, Fuel Tank Silencer, Lower No.3
9011908019	90119-08019	Bolt, Stud(For Manifold To Carburetor)
9015950004	90159-50004	New Genuine Part
9015950064	90159-50064	New Genuine Part
9015950064	90159-50225	New Genuine Part
9017905020	90179-05020	NUT
9017905020	90179-05011	NUT
9017910033	90179-10033	Nut (For Front Wiper Arm Setting)
9018305005	90183-05005	Clip, Instrument Panel Finish, Lower Center
9018305005	90183-05018	Clip, Instrument Panel Finish, Lower Center
9046063009	90460-63009	Clamp, Hose
9046063009	96111-10630	Clamp, Hose
9048026019	90480-26019	New Genuine Part
9165160820	91651-60820	Bolt, Radiator Side Support Plate
9165160820	91651-B0820	Bolt, Radiator Side Support Plate
9166140620	91661-40620	New Genuine Part
9356755016	93567-55016	Screw
9356755016	93568-55016	Screw
9611210240	96112-10240	Clamp Or Clip, Hose(For Oil Cooler Hose)

OEM	Part name	Category
69749-30030	Clamp, No.2(For Luggage Door Lock Control Cable)	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77001-39185	Tank Assy, Fuel	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77037-14010	Lock Sub-Assy, Fuel Tank Cap	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77037-90K00	Lock Sub-Assy, Fuel Tank Cap	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77051-30050-02	Lever Sub-Assy, Fuel Lid Lock Open	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77051-30050-04	Lever Sub-Assy, Fuel Lid Lock Open	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77051-30050-05	Lever Sub-Assy, Fuel Lid Lock Open	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77051-30050-06	Lever Sub-Assy, Fuel Lid Lock Open	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77051-30050-12	Lever Sub-Assy, Fuel Lid Lock Open	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77169-14020	Gasket, Fuel Tank Vent	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77201-30140	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77213-30050	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77291-12010	Shield, Fuel Tank, Inlet, No.1	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77292-30020	Shield, Fuel Tank Drain Plug	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77310-12100	Cap Assy, Fuel Tank	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77316-12050	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77350-30120	Cover Sub-Assy, Fuel Inlet Box	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77360-24010	Retainer, Fuel Inlet Cushion	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77377-24010	Retainer, Fuel Filler Opening Lid Lock	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77651-30060	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77651-30070	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77658-30030	Moulding, Fuel Tank Edge	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77691-30020	Sheet, Fuel Tank Silencer, Upper No.1	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77692-30020	Sheet, Fuel Tank Silencer, Lower No.1	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77693-30020	Sheet, Fuel Tank Silencer, Upper No.2	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77694-30020	Sheet, Fuel Tank Silencer, Lower No.2	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77695-30020	Sheet, Fuel Tank Silencer, Upper No.3	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
77696-30020	Sheet, Fuel Tank Silencer, Lower No.3	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
90105-12018	Plug(For Fuel Tank)	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
90119-08019	Bolt, Stud(For Manifold To Carburetor)	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
90159-50004	New Genuine Part	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
90159-50064	New Genuine Part	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
90159-50225	New Genuine Part	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
90179-05011	NUT	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
90179-05020	NUT	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
90179-10033	Nut (For Front Wiper Arm Setting)	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
90183-05005	Clip, Instrument Panel Finish, Lower Center	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
90183-05018	Clip, Instrument Panel Finish, Lower Center	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
90430-12245	Gasket(For Fuel Tank)	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
90445-22002	Hose, Fuel, No.1(For Fuel Tank)	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
90445-22010	Hose, Fuel, No.2(For Fuel Tank)	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
90446-09011	Hose, Fuel Filler Opening	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
90460-63009	Clamp, Hose	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
90480-26019	New Genuine Part	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
90541-08003	Cushion(For Inspection Opening)	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
90541-08011	Cushion(For Inspection Opening)	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
91651-60820	Bolt, Radiator Side Support Plate	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
91651-B0820	Bolt, Radiator Side Support Plate	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
91661-40620	New Genuine Part	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
93567-55016	Screw	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
93568-55016	Screw	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
96111-10630	Clamp, Hose	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
96112-10240	Clamp Or Clip, Hose(For Oil Cooler Hose)	Fuel Tank & Tube ([08.1983 - ] (8308- )LS120,MS122,YS120..HT,SED)
