Search › Model › MS122

MS122

Toyota CROWN-MAJESTA · 1983 · 4,981 parts · 181 categories

4,981 items

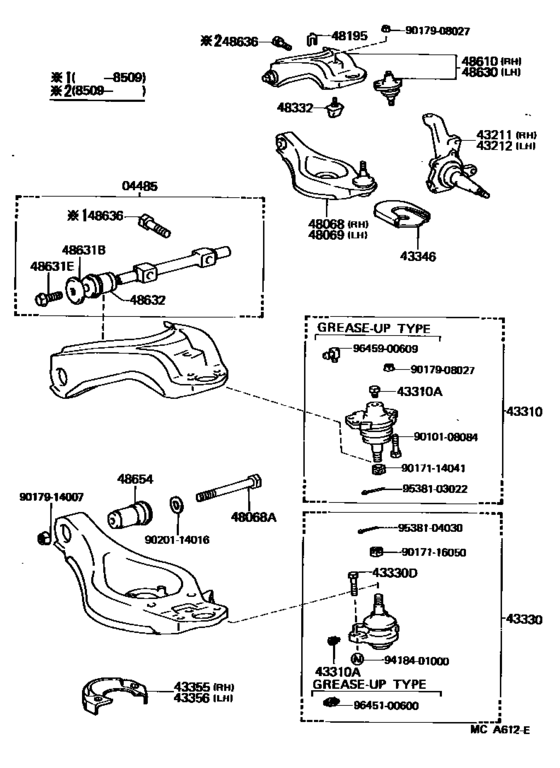

Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- )) 38

#	OEM	Part name
4485	04485-30042	Shaft Kit, Upper Suspension Arm
4485	04485-30043	Shaft Kit, Upper Suspension Arm
4485	04485-30050	Shaft Kit, Upper Suspension Arm
43211	43211-30130	Knuckle, Steering, Rh
43212	43212-30080	Knuckle, Steering, Lh
43310	43360-39065	Joint Assy, Upper Ball
43310	90345-06014	Plug (For Ball Joint)
43330	43330-39155	Joint Assy, Lower Ball, Front Rh
43330	43340-39135	Joint Assy, Lower Ball, Front Lh
43330	90101-10439	Bolt (For Front Lower Ball Joint)
48068	48068-30130	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068	90101-14022	Bolt(For Front Suspension Lower Arm)
48069	48069-30130	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48195	90565-15016	Shim, Camber Adjust
48195	90565-15017	Shim, Camber Adjust
48195	90565-15018	Shim, Camber Adjust
48332	48333-30010	Bumper, Front Spring, No.2
48610	48610-30020	Arm Assy, Front Suspension Upper, Rh
48610	48610-30901	Arm Assy, Front Suspension Upper, Rh
48630	48630-30020	Arm Assy, Front Suspension, Upper Lh
48630	48630-30901	Arm Assy, Front Suspension, Upper Lh
48631	90948-02020	Retainer, Cushion(For Front Suspension Upper Arm Rh)
48631	90105-12017	Bolt(For Front Suspension Upper Arm Rh)
48632	48632-30040	Bush, Upper Arm
48636	90105-14026	Bolt, Upper Arm Set
48636	90105-14062	Bolt, Upper Arm Set
48654	48654-30020	Bush, Lower Arm
9010108084	90101-08084	New Genuine Part
9017114041	90171-14041	Nut, Castle(For Tie Rod End)
9017116050	90171-16050	Nut, Castle (For Front Lower Ball Joint Setting)
9017908027	90179-08027	New Genuine Part
9017914007	90179-14007	Nut(For Suspension Lower Arm Shaft)
9020114016	90201-14016	WASHER
9418401000	94184-01000	Nut
9538103022	95381-03022	Cotter pin
9538104030	95381-04030	PIN
9645100600	96451-00600	Fitting, Grease Small(For Tail Gate Lock Link)
9645900609	96459-00609	Fitting, Grease

OEM	Part name	Category
04485-30042	Shaft Kit, Upper Suspension Arm	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
04485-30043	Shaft Kit, Upper Suspension Arm	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
04485-30050	Shaft Kit, Upper Suspension Arm	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
43211-30130	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
43212-30080	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
43330-39155	Joint Assy, Lower Ball, Front Rh	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
43340-39135	Joint Assy, Lower Ball, Front Lh	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
43360-39065	Joint Assy, Upper Ball	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
48068-30130	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
48069-30130	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
48333-30010	Bumper, Front Spring, No.2	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
48610-30020	Arm Assy, Front Suspension Upper, Rh	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
48610-30901	Arm Assy, Front Suspension Upper, Rh	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
48630-30020	Arm Assy, Front Suspension, Upper Lh	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
48630-30901	Arm Assy, Front Suspension, Upper Lh	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
48632-30040	Bush, Upper Arm	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
48654-30020	Bush, Lower Arm	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
90101-08084	New Genuine Part	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
90101-10439	Bolt (For Front Lower Ball Joint)	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
90101-14022	Bolt(For Front Suspension Lower Arm)	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
90105-12017	Bolt(For Front Suspension Upper Arm Rh)	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
90105-14026	Bolt, Upper Arm Set	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
90105-14062	Bolt, Upper Arm Set	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
90171-14041	Nut, Castle(For Tie Rod End)	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
90171-16050	Nut, Castle (For Front Lower Ball Joint Setting)	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
90179-08027	New Genuine Part	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
90179-14007	Nut(For Suspension Lower Arm Shaft)	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
90201-14016	WASHER	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
90345-06014	Plug (For Ball Joint)	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
90565-15016	Shim, Camber Adjust	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
90565-15017	Shim, Camber Adjust	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
90565-15018	Shim, Camber Adjust	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
90948-02020	Retainer, Cushion(For Front Suspension Upper Arm Rh)	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
94184-01000	Nut	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
95381-03022	Cotter pin	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
95381-04030	PIN	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
96451-00600	Fitting, Grease Small(For Tail Gate Lock Link)	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))
96459-00609	Fitting, Grease	Front Axle Arm & Steering Knuckle ([08.1983 - ] (8308- ))

Source: Public OEM parts-catalog data
Variants: 2 / 34
Category: 181
Collected: 2026-08-03
